NSN 5331-01-271-2294 MS29513013, MS29513-013, NMP-1128 PC27-0.25X0.5
Product Details | O-RING
5331-01-271-2294 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: MS29513013, MS29513-013, NMP-1128 PC27-0.25X0.5, NMP1128PC27025X05, LLHX50930, LL-HX5-0930, 5331-01-271-2294, 01-271-2294, 5331012712294, 012712294
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JAN 1988 | 01-271-2294 | 47946 ( O-RING ) |

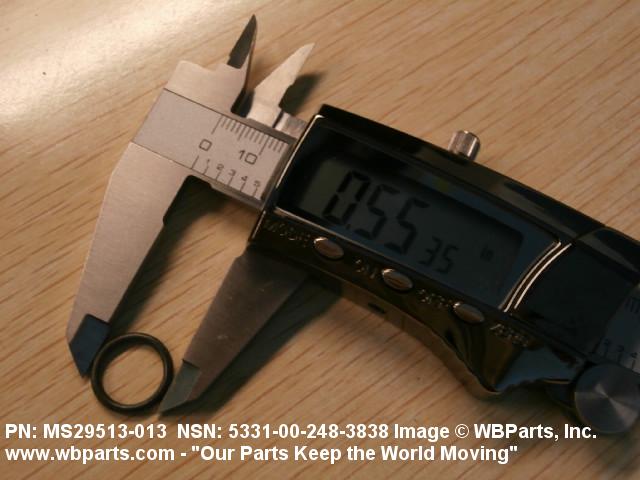

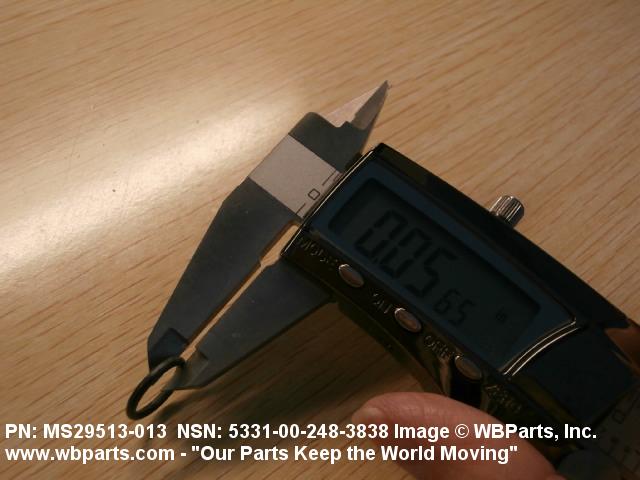

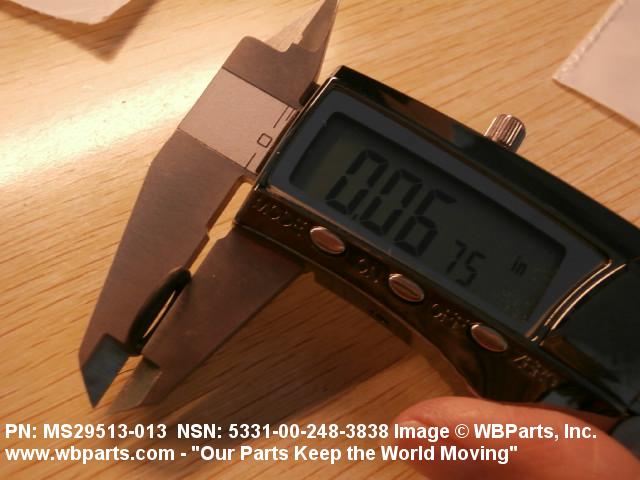

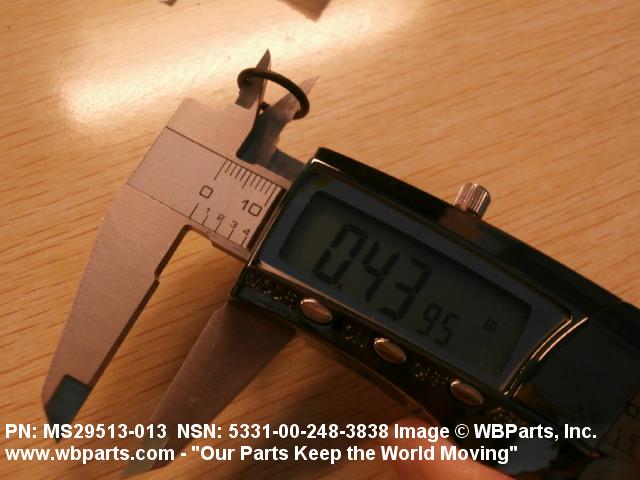

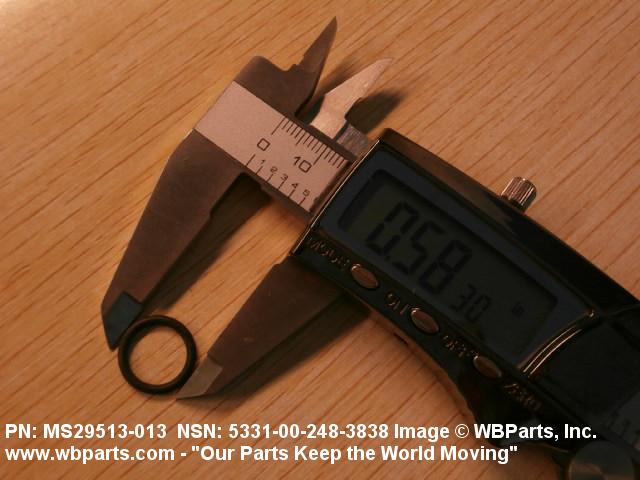

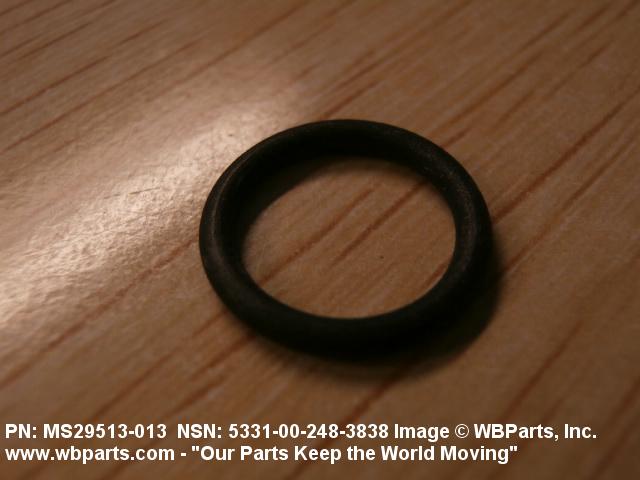

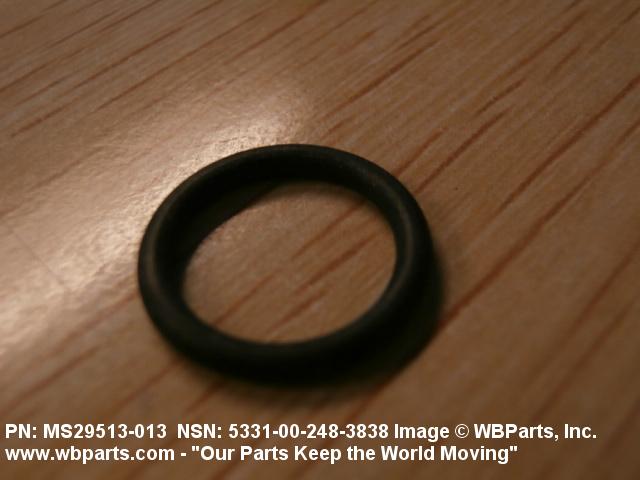

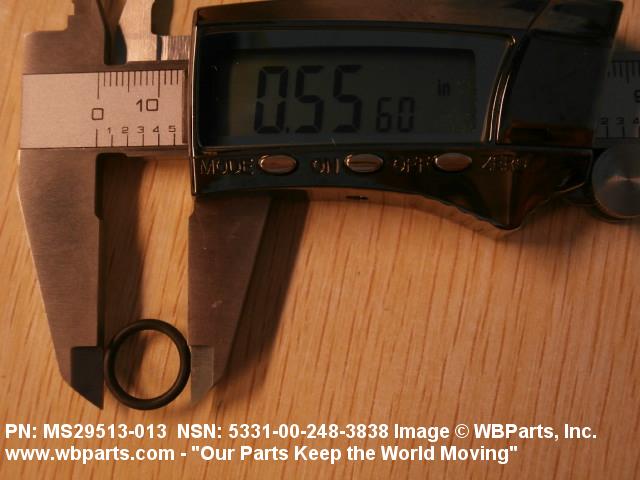

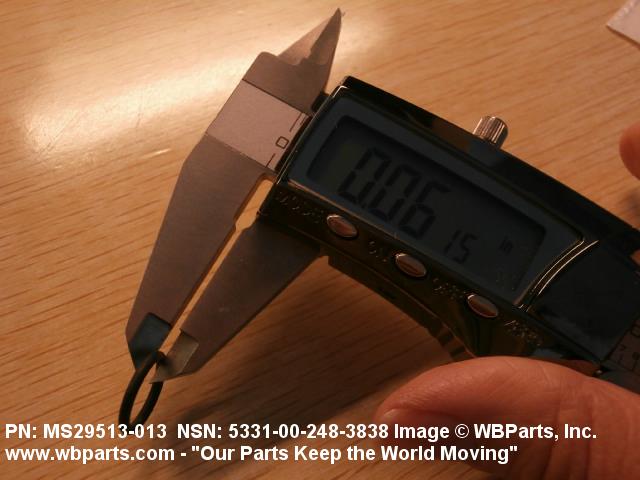

Drawings & Photos | NSN 5331-01-271-2294
Demand History | NSN 5331-01-271-2294
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS29513-013 | 2023-01-05 | 5 | United States |
| MS29513013 | 2022-10-284 | 20 | US |
| MS29513013 | 2021-05-137 | 4 | US |
| MS29513013 | 2016-11-316 | 8 | Italy |
| MS29513013 | 2016-11-314 | 4 | Italy |
| MS29513013 | 2016-08-222 | 10 | PH |
| MS29513013 | 2016-08-218 | 3 | Malaysia |
| MS29513013 | 2015-11-327 | 3 | MY |
| MS29513013 | 2014-01-09 | 5 | India |
| MS29513-013 | 2013-04-112 | 300 | |
| MS29513013 | 2013-03-72 | 1 | CN |
| MS29513013 | 2012-11-334 | 1 | PH |
| 5331-01-271-2294 | 2010-10-293 | 1230 | United States |
Cross Reference | NSN 5331-01-271-2294
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LL-HX5-0930 | 14153 | DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER |
| MS29513-013 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS29513-013 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS29513-013 | A1577 | AEREA SPA |
| NMP-1128 PC27-0.25X0.5 | 75954 | KUNKLE INDUSTRIES INC LONERGAN VALVE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5331-01-271-2294
Technical Data | NSN 5331-01-271-2294
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER POLYISOPRENE SYNTHETIC CLASS IR |
| CROSS-SECTIONAL HEIGHT | 0.062 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5331-01-271-2294
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-01-271-2294
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
