NSN 5331-01-324-5269 M83248/1-021, M83248/1-021CP, M832481021

Product Details | O-RING

5331-01-324-5269 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.

Part Alternates: M83248/1-021, M83248/1-021CP, M832481021, M832481021CP, AS3209021CP, AS3209-021CP, PL2850-0020 FIND 56, PL2850-0020 FIND 56CP, PL28500020FIND56, PL28500020FIND56CP, 6397408PC204, 6397408-PC204, 6397408PC204CP, 6397408-PC204CP, 6983468PC145, 6983468-PC145, 6983468PC145CP, 6983468-PC145CP, 8036397408PC204, 803-6397408-PC204, 8036397408PC204CP, 803-6397408-PC204CP, 8036983468PC145, 803-6983468-PC145, 8036983468PC145CP, 803-6983468-PC145CP, 5331-01-324-5269, 01-324-5269, 5331013245269, 013245269

Hardware and Abrasives | O-Ring

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	19 AUG 1990	01-324-5269	47946 ( O-RING )

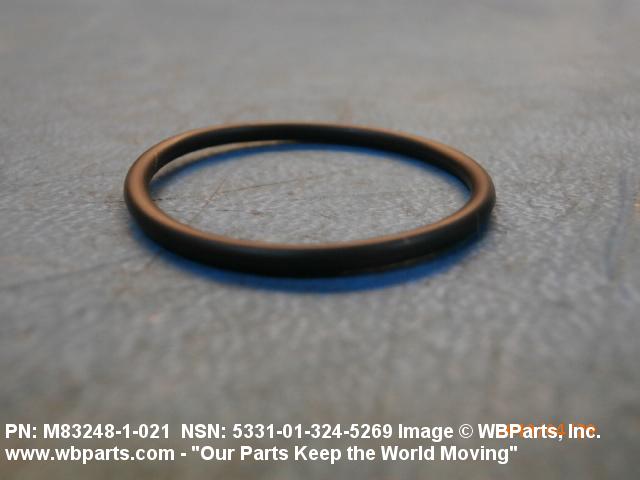

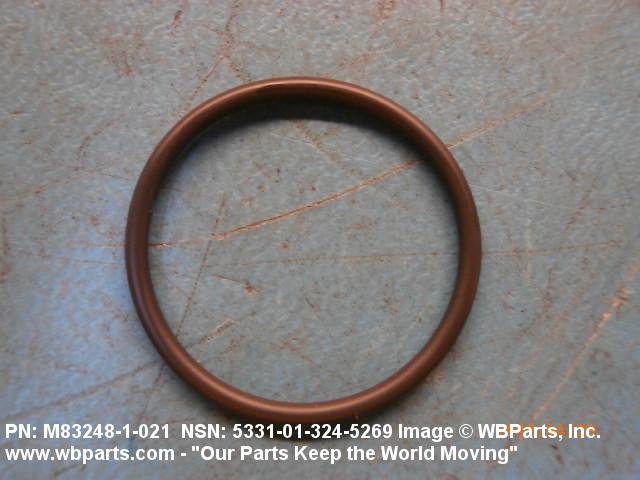

Drawings & Photos | NSN 5331-01-324-5269

Part Number	Request Date	QTY	Origin
5331-01-324-5269	2021-12-336	510	DIBBS
5331-01-324-5269	2021-08-235	25	United States
M832481021	2021-08-229	1	United States
AS3209021CP	2021-05-137	5	United States
5331-01-324-5269	2021-03-70	216	DIBBS
M832481021	2020-03-63	10	PH
AS3209021CP	2019-07-197	8	United States
5331-01-324-5269	2019-02-43	1164	DIBBS
5331-01-324-5269	2016-03-81	8	MANUAL
803-6397408-PC204CP	2016-03-81	8	United States
5331-01-324-5269	2015-05-134	570	DIBBS
5331-01-324-5269	2015-03-68	569	DIBBS
5331-01-324-5269	2014-10-289	506	DIBBS
5331-01-324-5269	2014-10-279	506	DIBBS
M832481021	2013-12-361	10	India
M83248/1-021	2013-08-229	600	Canada
5331-01-324-5269	2008-02-59	928	DIBBS

Cross Reference | NSN 5331-01-324-5269

Part Number	Cage Code	Manufacturer
6397408-PC204	53711	NAVAL SEA SYSTEMS COMMAND
6397408-PC204CP	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
6983468-PC145	53711	NAVAL SEA SYSTEMS COMMAND
6983468-PC145CP	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
803-6397408-PC204	53711	NAVAL SEA SYSTEMS COMMAND
803-6397408-PC204CP	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
803-6983468-PC145	53711	NAVAL SEA SYSTEMS COMMAND
803-6983468-PC145CP	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
AS3209-021CP	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M83248/1-021	1CN60	M I S C, INC
M83248/1-021CP	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
PL2850-0020 FIND 56	1W506	CARLETON TECHNOLOGIES INC DIV TAMPA FACILITY
PL2850-0020 FIND 56CP	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5331-01-324-5269

Compare

Related Products | NSN 5331-01-324-5269

5331-01-324-5270, 5331-01-324-6663, 5331-01-324-6718, 5331-01-324-6719, 5331-01-324-7021

Technical Data | NSN 5331-01-324-5269

Characteristic	Specifications
MATERIAL	RUBBER
CENTER HOLE DIAMETER	0.917 INCHES MINIMUM AND 0.935 INCHES MAXIMUM

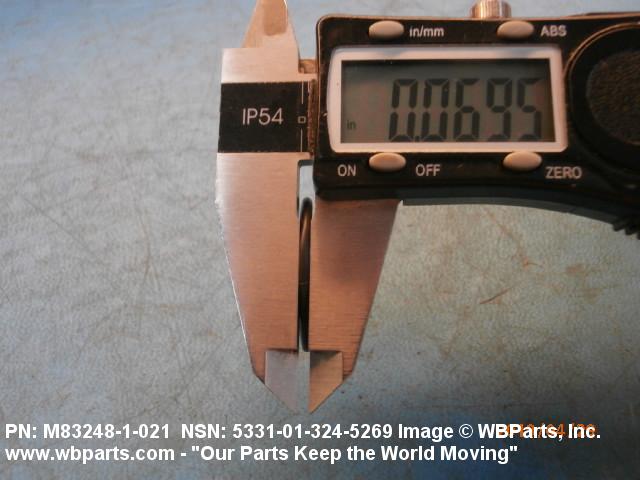

CROSS-SECTIONAL HEIGHT	0.067 INCHES MINIMUM AND 0.073 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA	81349-MIL-R-83248/1 GOVERNMENT SPECIFICATION
DEPARTURE FROM CITED DOCUMENT	CLEANED IN ACCORDANCE WITH MIL-C-52211
CRITICALITY CODE JUSTIFICATION	ZZZW
III END ITEM IDENTIFICATION	MANIFOLD,VALVE

Restrictions/Controls & Freight Information | NSN 5331-01-324-5269

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	S	The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	HD	Naval Inventory Control Point Mechanicsburg, PA 17055-0788
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5331-01-324-5269

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material ID	CP	An item that requires special cleaning and packaging for oxygen/nitrogen service (e.g, valves, piping systems, generators).
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
