NSN 5331-01-388-9207 M83485/1-131, M834851131, AMS-R-83485/1
Product Details | O-RING
5331-01-388-9207 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: M83485/1-131, M834851131, AMS-R-83485/1, AMSR834851, ST1946131, ST1946-131, V0835 2-131, V08352131, MIL-R-83485/1, MILR834851, PE4713631, PE47136-31, 2131V83575, 2-131-V835-75, 2-131V835-75, 5331-01-388-9207, 01-388-9207, 5331013889207, 013889207
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 APR 1994 | 01-388-9207 | 47946 ( O-RING ) |

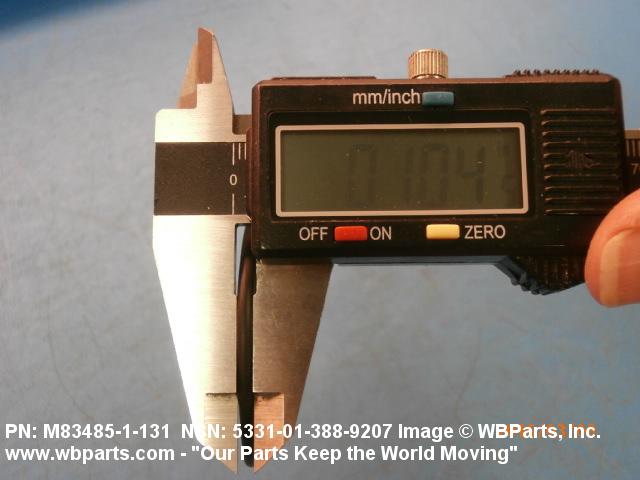

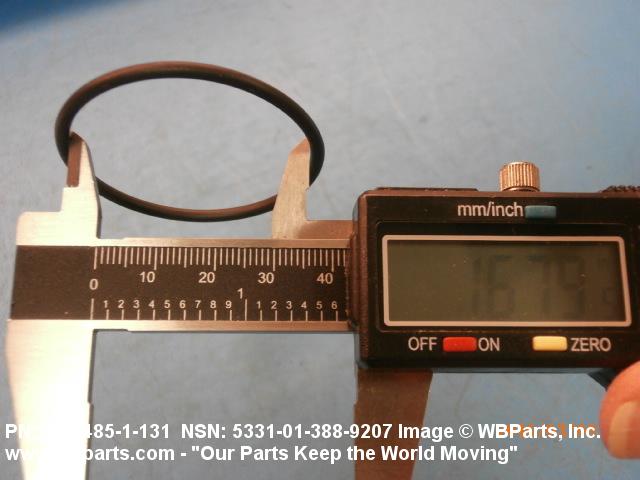

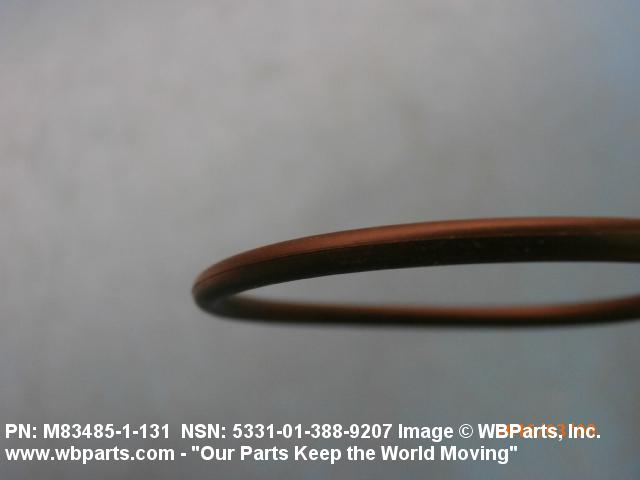

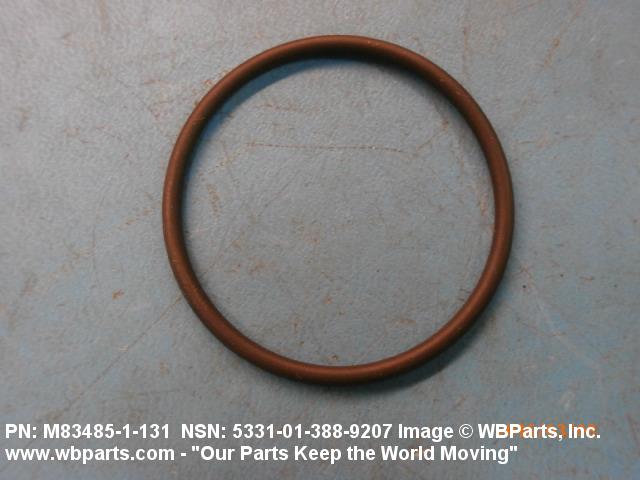

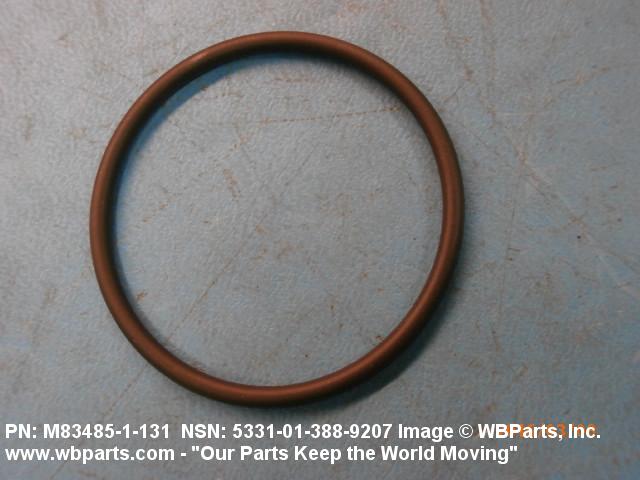

Drawings & Photos | NSN 5331-01-388-9207
Demand History | NSN 5331-01-388-9207
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST1946-131 | 2025-09-267 | 3638 | DIBBS |
| ST1946-131 | 2025-02-43 | 3638 | DIBBS |
| 5331-01-388-9207 | 2023-09-254 | 8 | Taiwan |
| 5331-01-388-9207 | 2023-09-250 | 8 | Taiwan |
| ST1946-131 | 2023-08-222 | 4054 | DIBBS |
| ST1946-131 | 2023-07-190 | 4054 | DIBBS |
| M834851131 | 2023-02-47 | 2 | United States |
| ST1946-131 | 2022-04-100 | 2619 | DIBBS |
| ST1946-131 | 2022-01-25 | 1974 | DIBBS |
| ST1946-131 | 2020-03-83 | 2500 | DIBBS |
| M834851131 | 2016-02-54 | 2 | United States |
| 5331-01-388-9207 | 2013-10-290 | 1 | DIBBS-RFPs |
| 5331-01-388-9207 | 2013-09-273 | 1 | DIBBS-RFPs |
| 5331-01-388-9207 | 2012-11-318 | 1500 | DIBBS |
| 5331-01-388-9207 | 2012-07-202 | 1200 | DIBBS |
| 5331-01-388-9207 | 2011-06-166 | 1878 | DIBBS |
| 5331-01-388-9207 | 2011-01-07 | 30 | US |
| 5331-01-388-9207 | 2011-01-07 | 30 | US |
| 5331-01-388-9207 | 2008-11-322 | 3000 | DIBBS |
Cross Reference | NSN 5331-01-388-9207
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-131-V835-75 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2-131V835-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| AMS-R-83485/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M83485/1-131 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M83485/1-131 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-83485/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PE47136-31 | 12190 | ENERTECH TECHNICAL SERVICES CORPORATION |
| ST1946-131 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| ST1946-131 | 1CN74 | FREUDENBERG-NOK GENERAL PARTNERSHIP DBA INTERNATIONAL SEAL COMPANY |
| ST1946-131 | 52661 | UNITED TECHNOLOGIES CORPORATION DBA PRATT & WHITNEY |
| ST1946-131 | 70106 | ACUSHNET RUBBER COMPANY, INC. DBA PRECIX |
| ST1946-131 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| V0835 2-131 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5331-01-388-9207
Related Products | NSN 5331-01-388-9207
Technical Data | NSN 5331-01-388-9207
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-83485 MIL SPEC SINGLE MATERIAL RESPONSE |
| HARDNESS RATING | 70.0 SHORE DUROMETER A MINIMUM AND 80.0 SHORE DUROMETER A MAXIMUM |
| CENTER HOLE DIAMETER | 1.659 INCHES MINIMUM AND 1.689 INCHES MAXIMUM |
| CROSS-SECTIONAL HEIGHT | 0.100 INCHES MINIMUM AND 0.106 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5331-01-388-9207
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-01-388-9207
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
