NSN 5331-01-470-0415 NAS1593215, NAS1593-215, SR270275
Product Details | O-RING

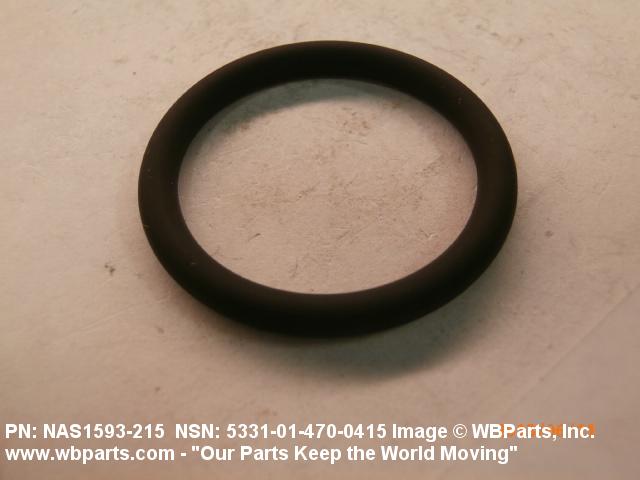

5331-01-470-0415 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: NAS1593215, NAS1593-215, SR270275, SR-2702-75, V74775, V747-75, 4680215, 4680-215, 5331-01-470-0415, 01-470-0415, 5331014700415, 014700415
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1999 | 01-470-0415 | 47946 ( O-RING ) |
Drawings & Photos | NSN 5331-01-470-0415
Demand History | NSN 5331-01-470-0415
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5331-01-470-0415 | 2013-03-66 | 10 | Australia |
| 5331-01-470-0415 | 2013-03-66 | 10 | Australia |
| V74775 | 2008-02-59 | 100 | Greece |
Cross Reference | NSN 5331-01-470-0415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4680-215 | 90166 | EATON AEROSPACE LLC DBA USE CAGE CODE 62983 FOR |
| NAS1593-215 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SR-2702-75 | 95272 | STILLMAN SEAL CORPORATION |
| SR-2702-75 | SW461 | HUTCHINSON SEAL DE MEXICO STILLMAN SEAL DIVISION |
| V747-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5331-01-470-0415
Technical Data | NSN 5331-01-470-0415
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-83248, TYPE 1, CLASS1 MIL SPEC SINGLE MATERIAL RESPONSE |
| HARDNESS RATING | 70.0 SHORE DUROMETER A MINIMUM AND 80.0 SHORE DUROMETER A MAXIMUM |

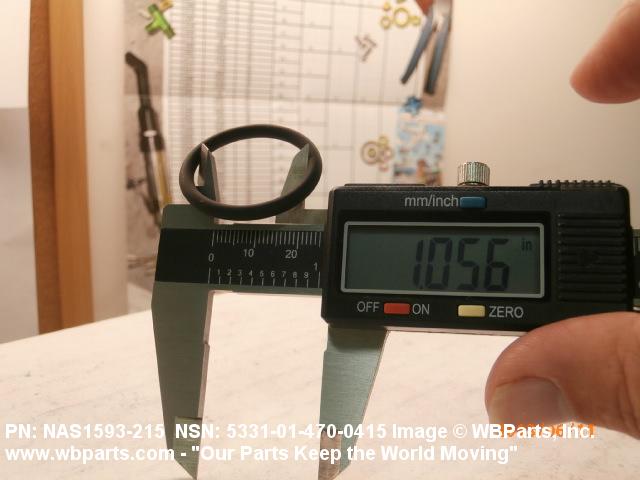

| CENTER HOLE DIAMETER | 1.036 INCHES MINIMUM AND 1.056 INCHES MAXIMUM |

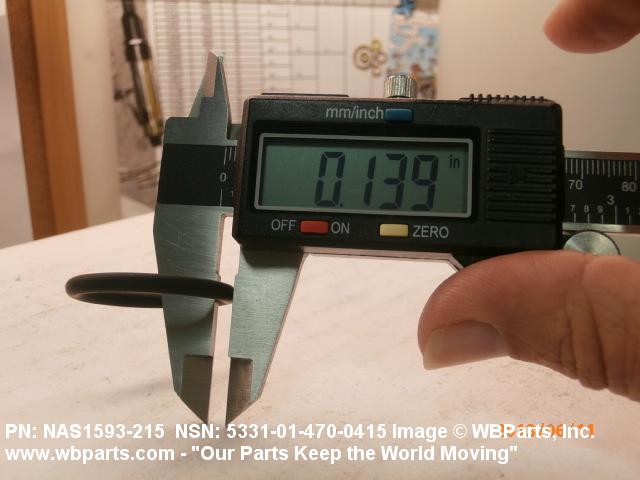

| CROSS-SECTIONAL HEIGHT | 0.135 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5331-01-470-0415
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
