NSN 5340-00-009-0501 MS519385, MS51938-5, 00-009-0501
Product Details | ANTIPILFERAGE SEAL
5340-00-009-0501 A closure device that serves as a check against tampering or unauthorized opening. The seal must be severed or mutilated before entry is possible.
Part Alternates: MS519385, MS51938-5, 5340-00-009-0501, 00-009-0501, 5340000090501, 000090501
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JUL 1972 | 00-009-0501 | 32251 ( SEAL, ANTIPILFERAGE ) |

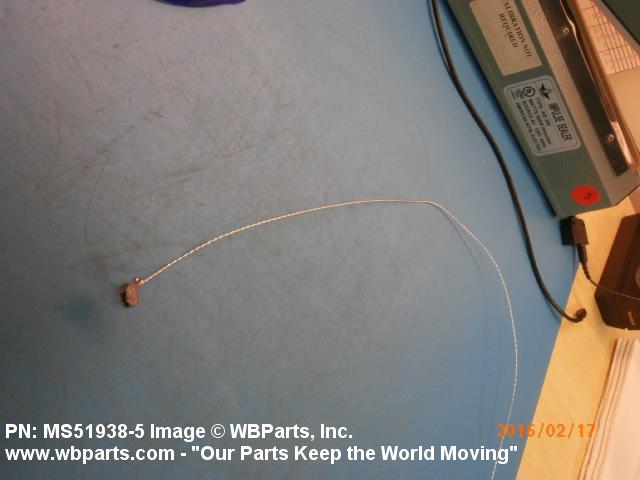

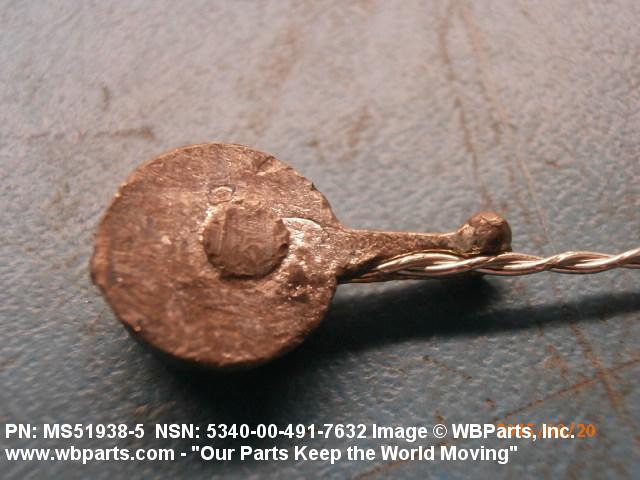

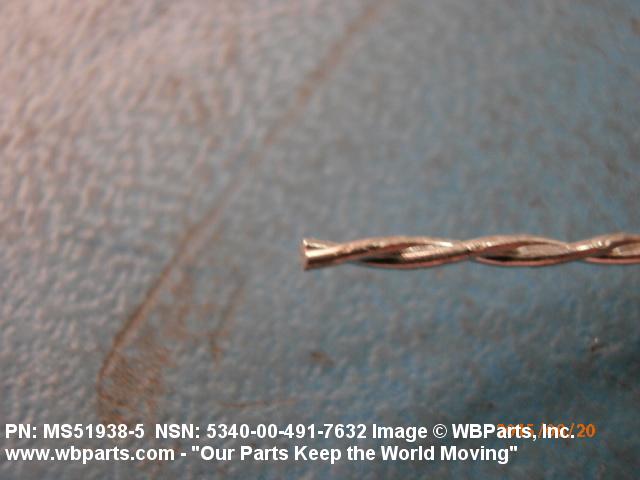

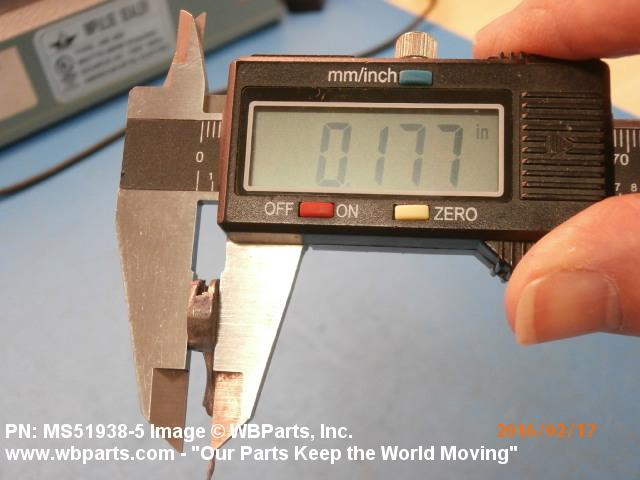

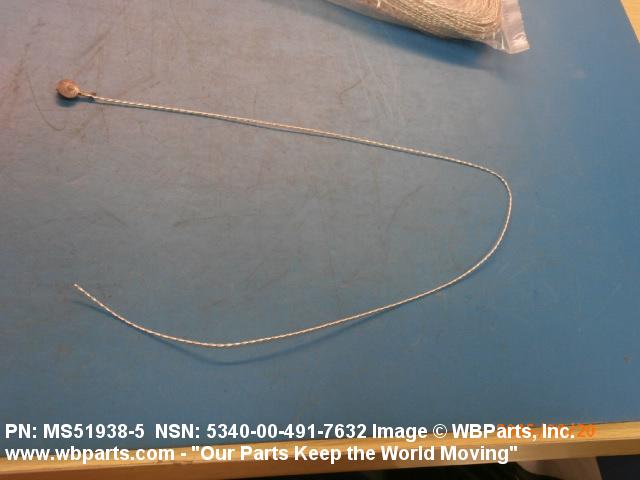

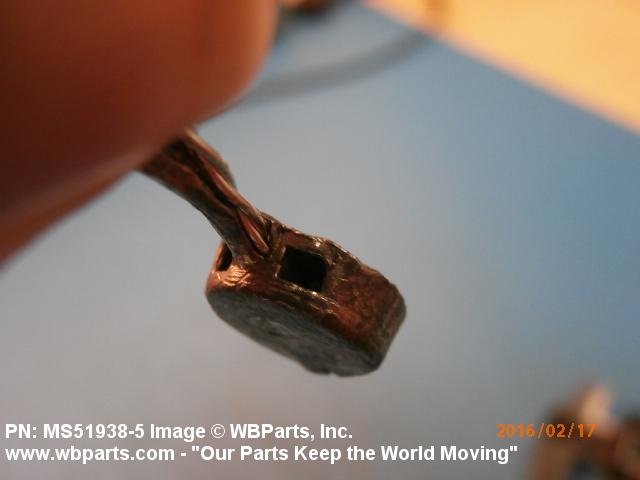

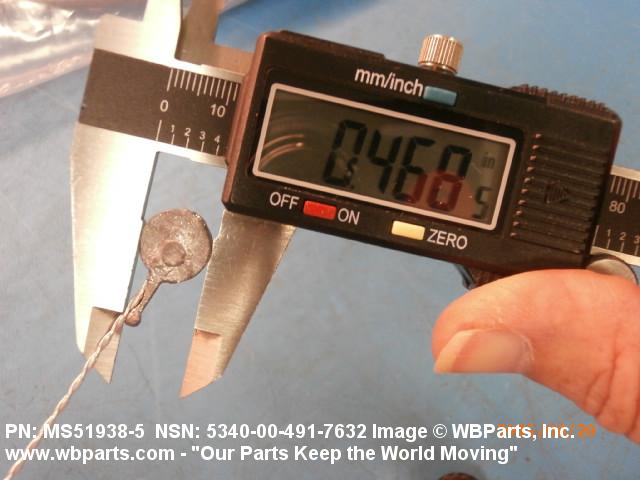

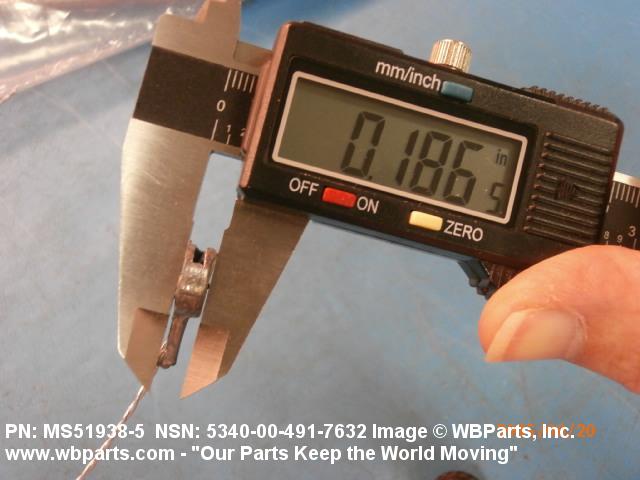

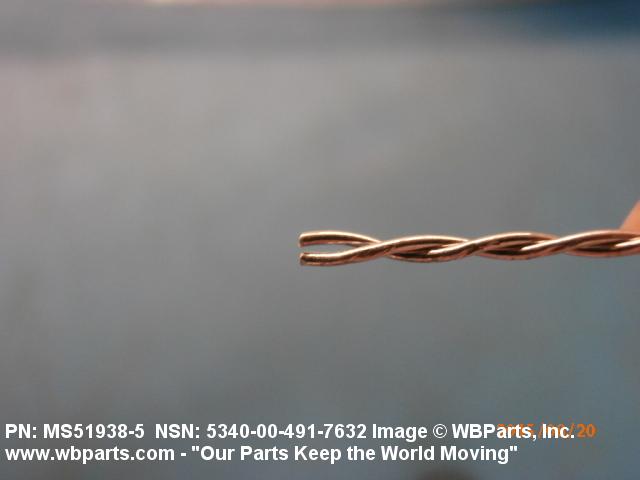

Drawings & Photos | NSN 5340-00-009-0501
Demand History | NSN 5340-00-009-0501
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS519385 | 2023-01-26 | 100 | US |
| MS519385 | 2016-02-41 | 150 | us |
| MS519385 | 2015-08-225 | 100 | United States |
| MS519385 | 2015-08-225 | 300 | United States |
| MS519385 | 2010-11-333 | 30 | United States |
| 5340-00-009-0501 | 2008-08-241 | 1400 | US |
Cross Reference | NSN 5340-00-009-0501
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51938-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-009-0501
Technical Data | NSN 5340-00-009-0501
| Characteristic | Specifications |
|---|---|
| MATERIAL | LEAD, QQ-L-201, GRADE B |

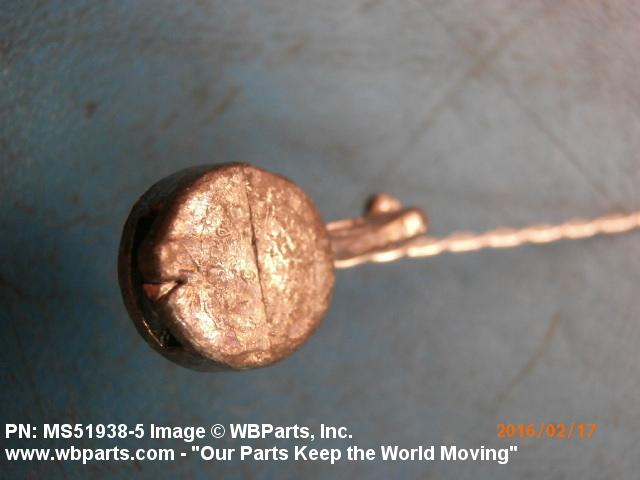

| SHAPE | CIRCULAR |

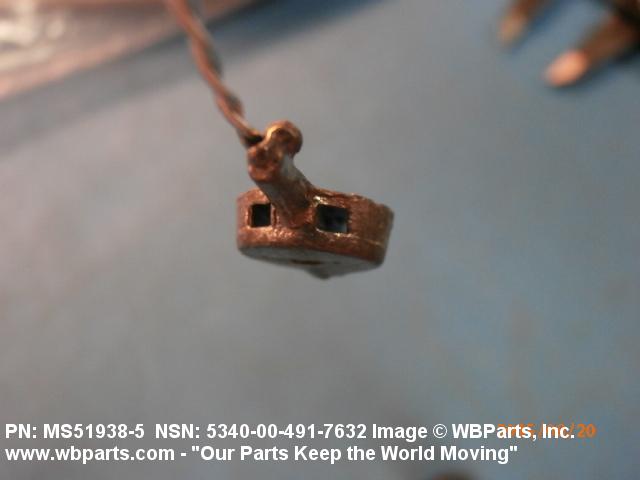

| HOLE QUANTITY | 2 |

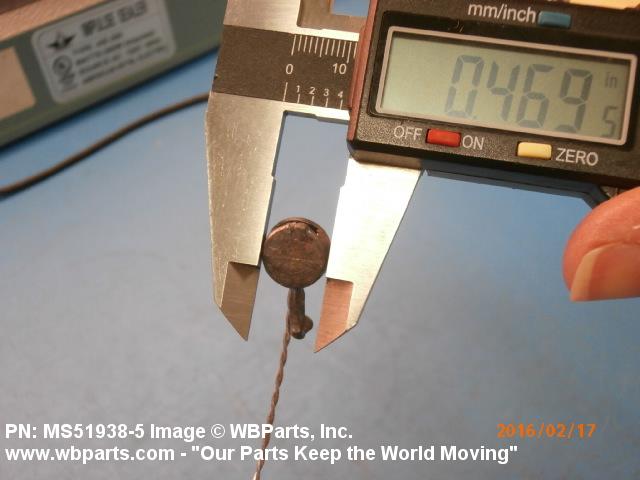

| DIAMETER | 0.440 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| THICKNESS | 0.125 INCHES NOMINAL |
| WIRE/CORD PROVISION | NOT INCLUDED |
| WIRE | INCLUDED |
| WIRE MATERIAL | STEEL |
| AWG SIZE DESIGNATION | 23 |

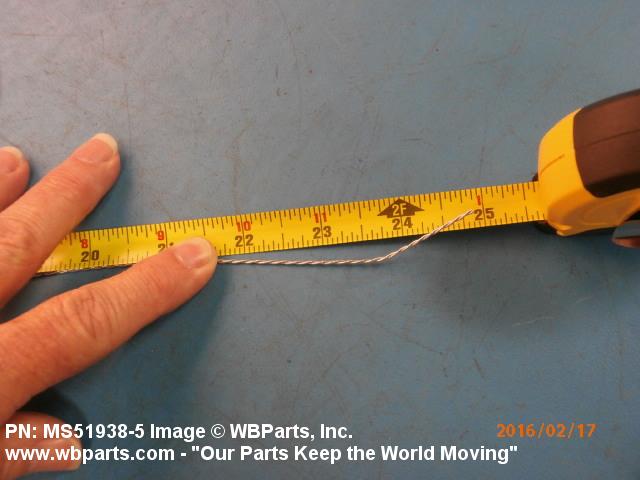

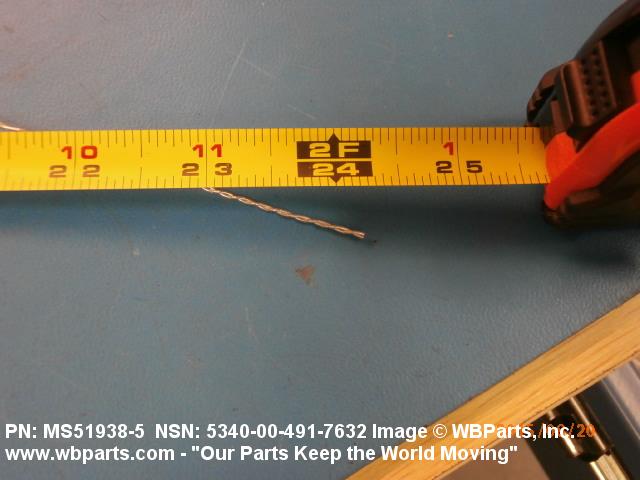

| WIRE LENGTH | 23.930 INCHES MINIMUM AND 24.060 INCHES MAXIMUM |
| WIRE SURFACE TREATMENT | TIN PLATED |

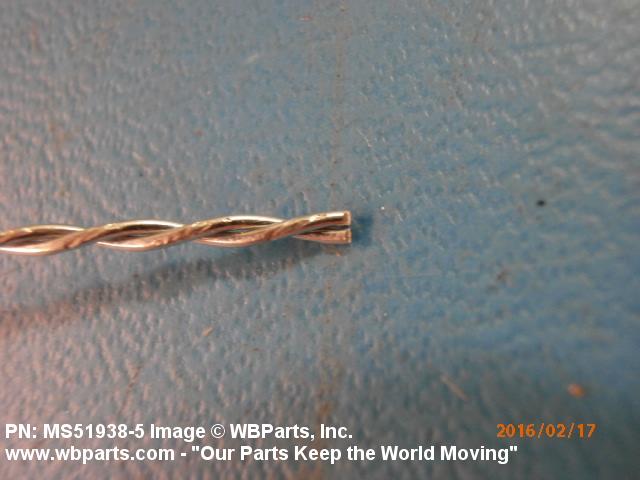

| STRAND QUANTITY | 2 |
| PIN | NOT INCLUDED |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY PACKING IN ACCORDANCE WITH MIL-P-23199 AND MATERIAL MUST CONFORM TO SHIPS PARTS CONTROL CENTER SPECIAL QUALITY CONTROL PROVISIONS |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51938-5 |
Restrictions/Controls & Freight Information | NSN 5340-00-009-0501
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 172640 | SEALS, SECURITY |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
