Product Details | LOOP CLAMP
5340-00-085-7884 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 8717264, 5340-00-085-7884, 00-085-7884, 5340000857884, 000857884
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-085-7884 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-00-085-7884
Cross Reference | NSN 5340-00-085-7884
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8717264 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-085-7884
Technical Data | NSN 5340-00-085-7884
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1008 OR STEEL COMP 1009 OR STEEL COMP 1015 OR STEEL COMP 1018 OR STEEL COMP 1020 BAND |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698,TEMPER 4 OR 5 FED SPEC ALL MATERIAL RESPONSES BAND |
| SURFACE TREATMENT | CADMIUM OR ZINC BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC 1ST TREATMENT RESPONSE OR QQ-Z-325,TY 2,CL 2 FED SPEC 2ND TREATMENT RESPONSE BAND |

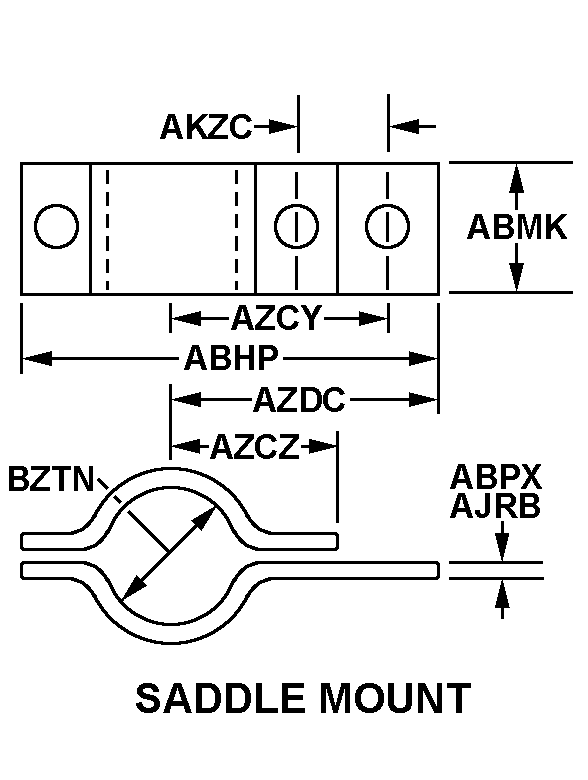

| STYLE DESIGNATOR | A8 SADDLE MOUNT |
| OVERALL LENGTH | 11.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.120 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 6.060 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO SHORT TONGUE END | 4.750 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 6.440 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 8.000 INCHES NOMINAL |
| TONGUE HOLE TYPE | OBLONG |
| SLOT WIDTH | 0.340 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| SLOT LENGTH | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8717264 |
