Product Details | HEADLESS STRAIGHT ROD
5340-00-088-6039 A headless, cylindrically shaped, unthreaded, solid metallic item with or without a drilled hole(s) perpendicular to the axis. Its length exceeds 12 inches (304.8mm) and it is of one nominal diameter. One or both ends are squared, chamfered, or rounded. Do not use if a more specific item name is applicable. Excludes BAR, METAL and PIN, STRAIGHT, HEADLESS.
Part Alternates: MS202532097, MS20253-2-097, MS2025327200, MS20253-2-7200, MS202532775, MS20253-2-775, N2L1830, DIA229INOXTYP316B, DIA2-29INOXTYP316B, LS35090C06G0090, LS35090C06G0098, LS35090C06G0111, LS35090C06G0204, LS35090C06G0239, LS35090C06G0266, LS35090C06G0290, LS35090C06G0377, 316B229, 316B2-29, 316DIA229, 316DIA2-29, 5340-00-088-6039, 00-088-6039, 5340000886039, 000886039
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 DEC 1967 | 00-088-6039 | 21876 ( ROD, STRAIGHT, HEADLESS ) |

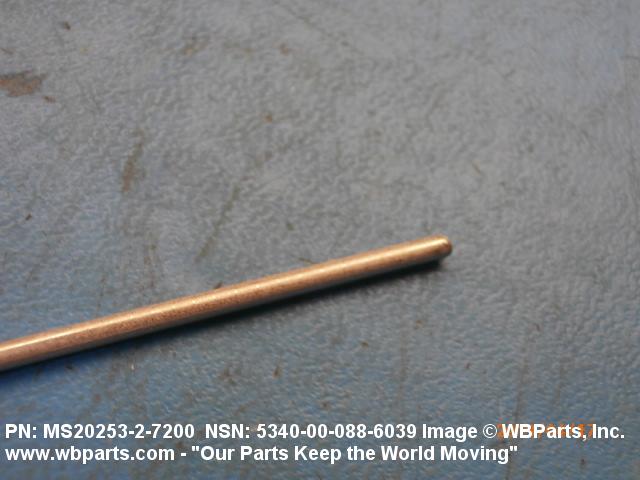

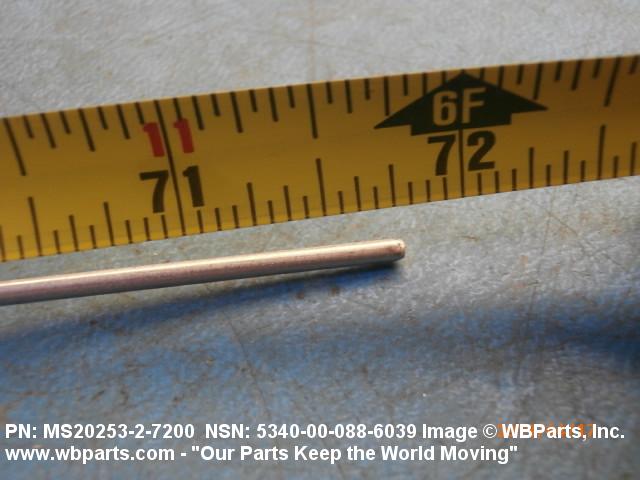

Drawings & Photos | NSN 5340-00-088-6039
Demand History | NSN 5340-00-088-6039
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-088-6039 | 2023-04-14 | 2 | United States |
| MS2025327200 | 2022-08-16 | 100 | TH |
| LS35090C06G0377 | 2019-04-10 | 10 | United States |
| MS2025327200 | 2019-04-10 | 10 | United States |
| LS35090C06G0377 | 2019-03-28 | 10 | United States |
| 5340-00-088-6039 | 2018-07-17 | 1585 | DIBBS |
| 5340-00-088-6039 | 2018-03-28 | 2717 | DIBBS |
| 5340-00-088-6039 | 2017-06-04 | 1585 | DIBBS |
| 5340-00-088-6039 | 2016-09-29 | 1364 | DIBBS |
| 5340-00-088-6039 | 2015-10-14 | 1106 | DIBBS |
| MS2025327200 | 2012-03-30 | 1029 | US |
| MS2025327200 | 2010-03-30 | 1 | Chile |
| 5340-00-088-6039 | 2009-11-06 | 485 | DIBBS |
| MS20253-2-7200 | 2009-06-01 | 10 | US |
| MS20253-2-7200 | 2009-06-01 | 25 | US |
| 5340-00-088-6039 | 2008-11-25 | 606 | DIBBS |
| 5340-00-088-6039 | 2008-10-22 | 355 | DIBBS |
| 5340-00-088-6039 | 2008-07-11 | 911 | DIBBS |
| 5340-00-088-6039 | 2007-11-20 | 8 | Iraq |
Cross Reference | NSN 5340-00-088-6039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 316B2-29 | F6033 | TECNOTEC SARL |
| 316DIA2-29 | F6033 | TECNOTEC SARL |
| DIA2-29INOXTYP316B | F6033 | TECNOTEC SARL |
| LS35090C06G0090 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| LS35090C06G0098 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| LS35090C06G0111 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| LS35090C06G0204 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| LS35090C06G0239 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| LS35090C06G0266 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| LS35090C06G0290 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| LS35090C06G0377 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| MS20253-2-097 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20253-2-7200 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20253-2-7200 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20253-2-7200 | F6033 | TECNOTEC SARL |
| MS20253-2-7200 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| MS20253-2-7200 | H0910 | VEREENIGDE INGENIEURSBUREAUX 'VIBA'N.V. |
| MS20253-2-775 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| N2L1830 | F6033 | TECNOTEC SARL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-088-6039
Related Products | NSN 5340-00-088-6039
5340-00-088-6057, 5340-00-088-6085, 5340-00-088-6112, 5340-00-088-6150, 5340-00-088-6223
Technical Data | NSN 5340-00-088-6039
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OR STEEL COMP 304 OR STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423,FORM 1,COND B FED SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| OVERALL LENGTH | 71.085 INCHES MINIMUM AND 72.015 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.088 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| CHAMFER LENGTH | 0.015 INCHES NOMINAL |
| CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-088-6039
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104380 | BARS/RODS I/S NOI BBC/CADMIUM COAT |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-088-6039
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
