NSN 5340-00-115-3000 MS917601, MS9176-01, 00-115-3000
Product Details | EXPANSION PLUG
5340-00-115-3000 An item, usually made of metal, having a finished cap with spring tension prongs on the underside, or spring wire fitted into the sides of the walls. When inserted in punched or drilled holes in metal sheets or tubes, the expanding action of the prongs or spring wire holds the item securely in place. It is specifically designed to close a hole; to cover a hole through which passes a shaft, cable, or the like; or to provide a perforated cover for a vent or breather hole. Excludes FASTENER, SPRING TENSION, TRIM.
Part Alternates: MS917601, MS9176-01, 5340-00-115-3000, 00-115-3000, 5340001153000, 001153000
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 AUG 1995 | 00-115-3000 | 11251 ( BUTTON, PLUG ) |

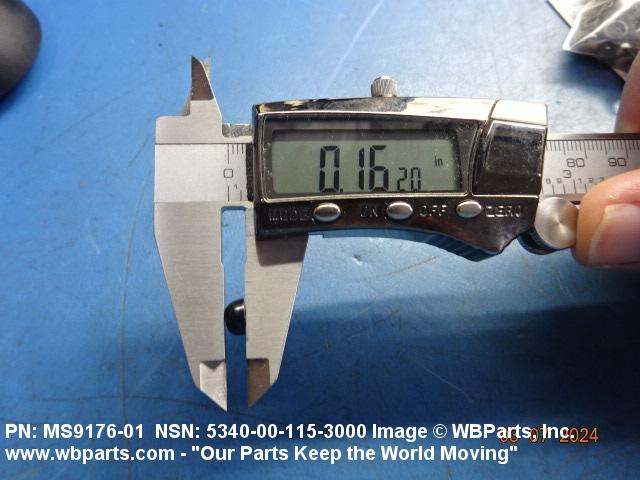

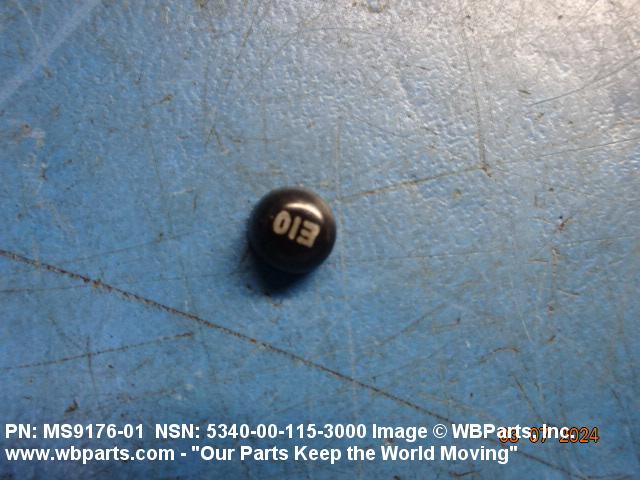

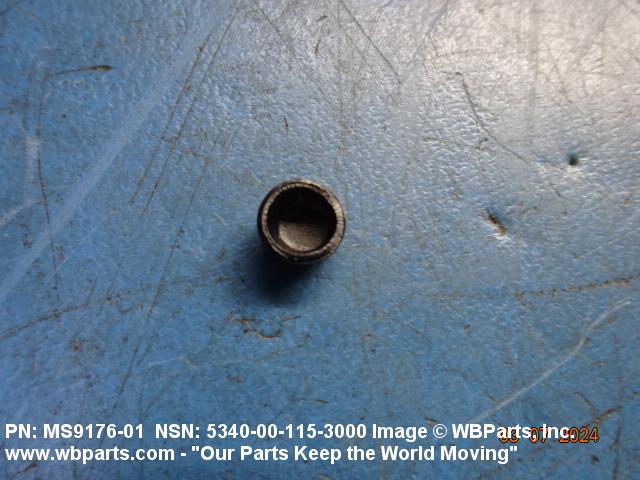

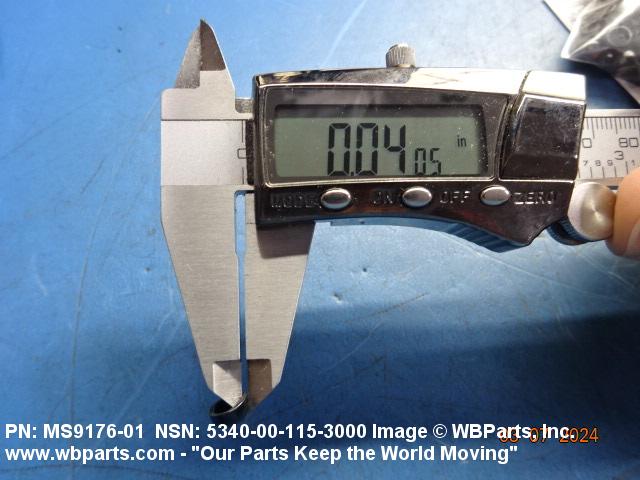

Drawings & Photos | NSN 5340-00-115-3000
Demand History | NSN 5340-00-115-3000
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS917601 | 2024-12-347 | 200 | United States |
| MS917601 | 2024-02-54 | 330 | United States |
| 5340-00-115-3000 | 2021-01-06 | 24 | DIBBS |
| 5340-00-115-3000 | 2020-12-356 | 8 | DIBBS |
| 5340-00-115-3000 | 2020-11-306 | 1 | DIBBS |
| 5340-00-115-3000 | 2020-08-233 | 1 | DIBBS |
| 5340-00-115-3000 | 2020-07-191 | 1 | DIBBS |
| 5340-00-115-3000 | 2017-02-32 | 30 | DIBBS |
| 5340-00-115-3000 | 2016-10-291 | 10 | DIBBS |
Cross Reference | NSN 5340-00-115-3000
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9176-01 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-115-3000
Technical Data | NSN 5340-00-115-3000
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5040 |
| SURFACE TREATMENT | ANODIZED |
| OUTSIDE DIAMETER | 0.286 INCHES MINIMUM AND 0.289 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.030 INCHES MINIMUM AND 0.040 INCHES MAXIMUM |
| HEIGHT | 0.156 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9176-01 |
Restrictions/Controls & Freight Information | NSN 5340-00-115-3000
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-00-115-3000
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
