Product Details | TEE HINGE

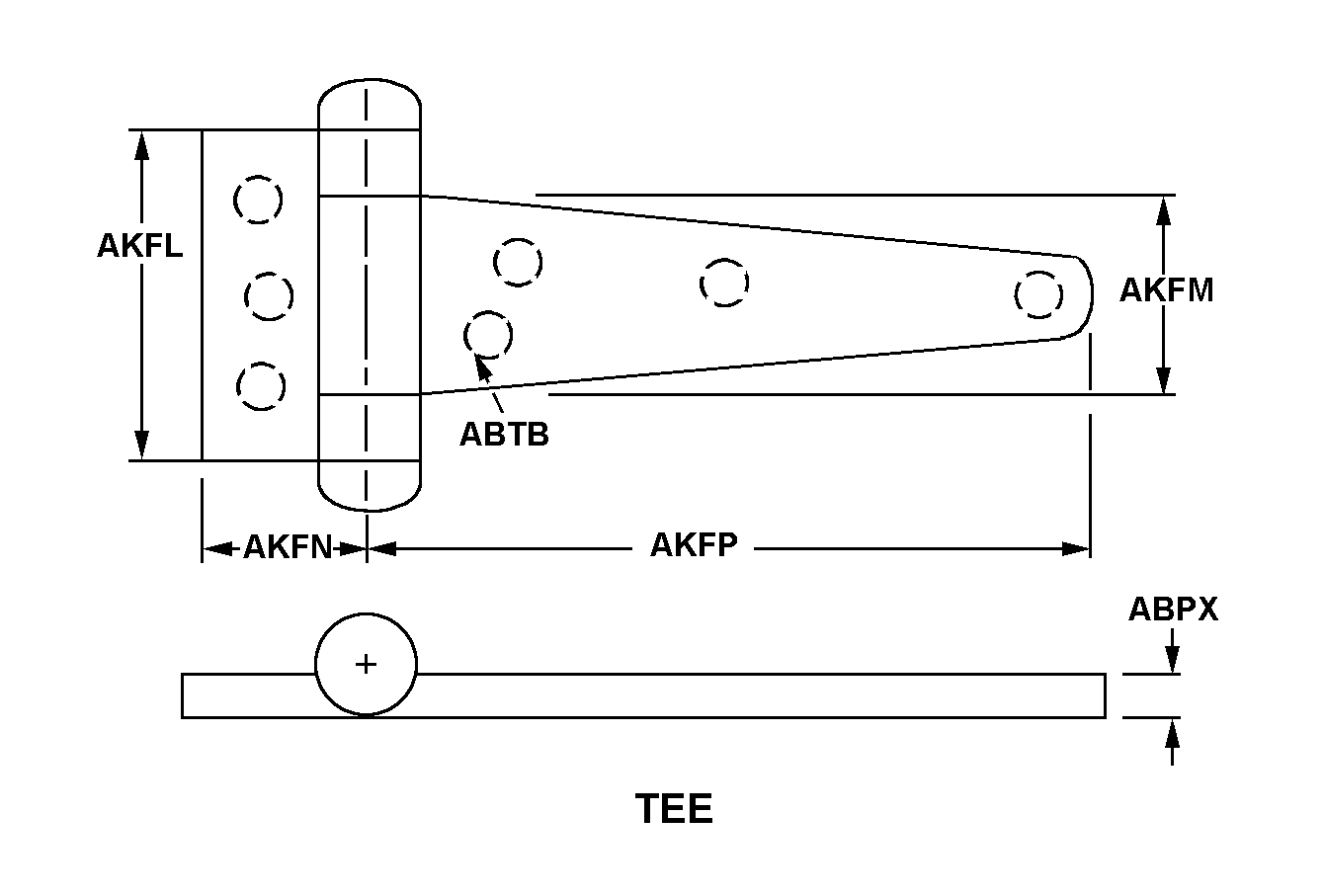

5340-00-128-0250 A hinge whose general shape is like the letter T, with one leaf resembling that of a butt hinge, and the other that of a strap hinge. The hinge may also have both leaves resembling strap hinges or butt hinges of different widths.
Part Alternates: 1409, 1409S, 214, 5340-00-128-0250, 00-128-0250, 5340001280250, 001280250
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-128-0250 | 06916 ( HINGE, TEE ) |
Drawings & Photos | NSN 5340-00-128-0250
Demand History | NSN 5340-00-128-0250
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1409 | 2019-11-324 | 1 | US |
| 214 | 2019-04-108 | 40 | US |
| 214 | 2009-11-334 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-128-0250
Related Products | NSN 5340-00-128-0250
Technical Data | NSN 5340-00-128-0250
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | IRON, MALLEABLE OVERALL |
| STYLE DESIGNATOR | 69 TEE |
| MATERIAL THICKNESS | 1.250 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.242 INCHES NOMINAL |
| JAMB LEAF WIDTH | 5.406 INCHES NOMINAL |
| DOOR LEAF WIDTH | 2.750 INCHES NOMINAL |
| PIN CENTER TO JAMB LEAF EDGE DISTANCE | 1.250 INCHES NOMINAL |
| PIN CENTER TO DOOR LEAF EDGE DISTANCE | 8.406 INCHES NOMINAL |

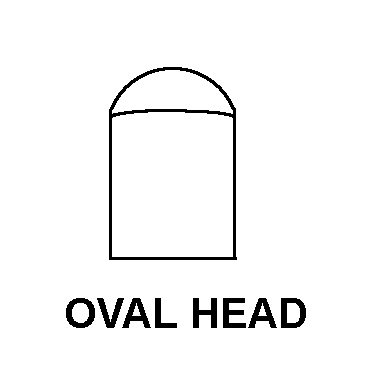

| PIN TIP STYLE | 4 OVAL HEAD 4 OVAL HEAD |
| REVERSIBLE FEATURE | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 1 |
| MOUNTING HOLE QUANTITY | 10 |
| PERFORMANCE TYPE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5340-00-128-0250
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095300 | HINGES/BUTTS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
