NSN 5340-00-200-2741 AN7426, AN742-6, HBCC1616
Product Details | LOOP CLAMP
5340-00-200-2741 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: AN7426, AN742-6, HBCC1616, HBCC161-6, 01208532, 5340-00-200-2741, 00-200-2741, 5340002002741, 002002741
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-200-2741 | 17532 ( CLAMP, LOOP ) |

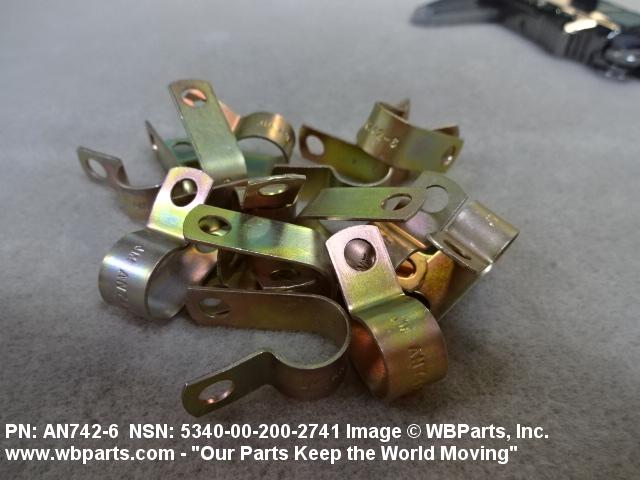

Drawings & Photos | NSN 5340-00-200-2741
Demand History | NSN 5340-00-200-2741
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN742-6 | 2014-06-157 | 50 | United States |
| 5340-00-200-2741 | 2008-06-157 | 1965 | DIBBS |
Cross Reference | NSN 5340-00-200-2741
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-200-2741
Technical Data | NSN 5340-00-200-2741
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1017 BAND |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-636,COND 4 FED SPEC SINGLE MATERIAL RESPONSE BAND |
| SURFACE TREATMENT | CADMIUM BAND |
| STYLE DESIGNATOR | A2 SINGLE LOOP |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.032 INCHES NOMINAL |

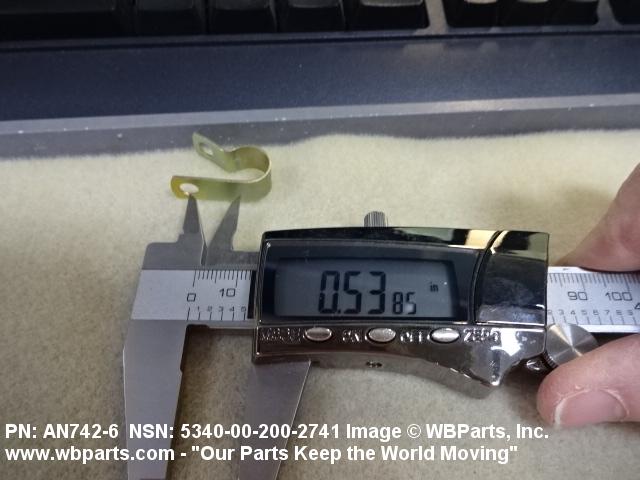

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.529 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.717 INCHES NOMINAL |

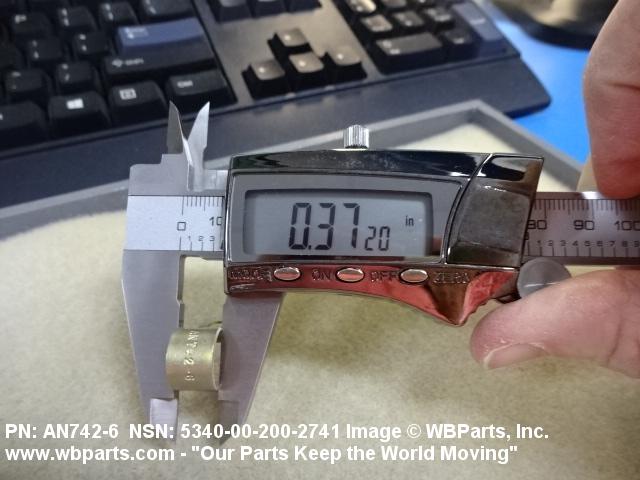

| LOOP INSIDE DIAMETER | 0.375 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

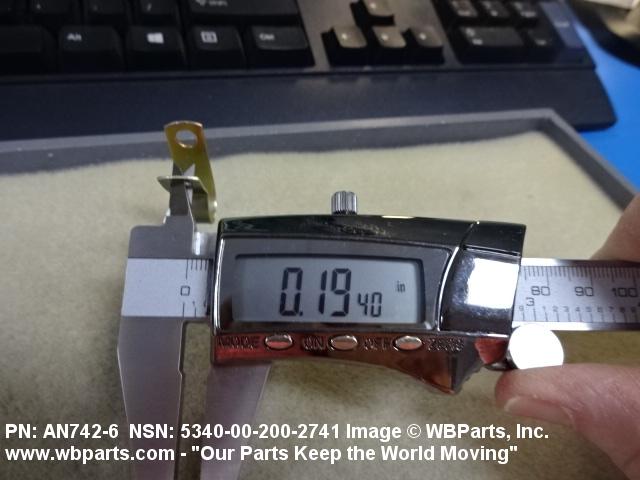

| DIAMETER | 0.204 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | ENGINE, AIRCRAFT, TF39-GE-1 (C-5A); RADAR SET, FIREFINDER (AN/TPQ-36); AIRCRAFT, C-2A (REPROCURED); ENGINE, AIRCRAFT, J69-T-25 (T-37B); SUPPORT EQUIPMENT, B-1 AIRCRAFT; ENGINE, AIRCRAFT F33-PW-102 (C-135E, EC-135H/K/P); ENGINE, AIRCRAFT, J85-GE-5/13 (F-5A/B, T-38A); ENGINE, AIRCRAFT, TF33-P-3/5/9 (C/EC-135, B-52H) |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN742-6 |
Restrictions/Controls & Freight Information | NSN 5340-00-200-2741
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-200-2741
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
