Product Details | BUTT HINGE
5340-00-209-7483 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: 1025, 105399, 5340-00-209-7483, 00-209-7483, 5340002097483, 002097483
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-209-7483 | 22894 ( HINGE, BUTT ) |
Drawings & Photos | NSN 5340-00-209-7483
Demand History | NSN 5340-00-209-7483
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1025 | 2012-10-297 | 5 | US |
| 1025 | 2011-03-80 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-209-7483
Technical Data | NSN 5340-00-209-7483
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| SURFACE TREATMENT AND LOCATION | ZINC OVERALL |

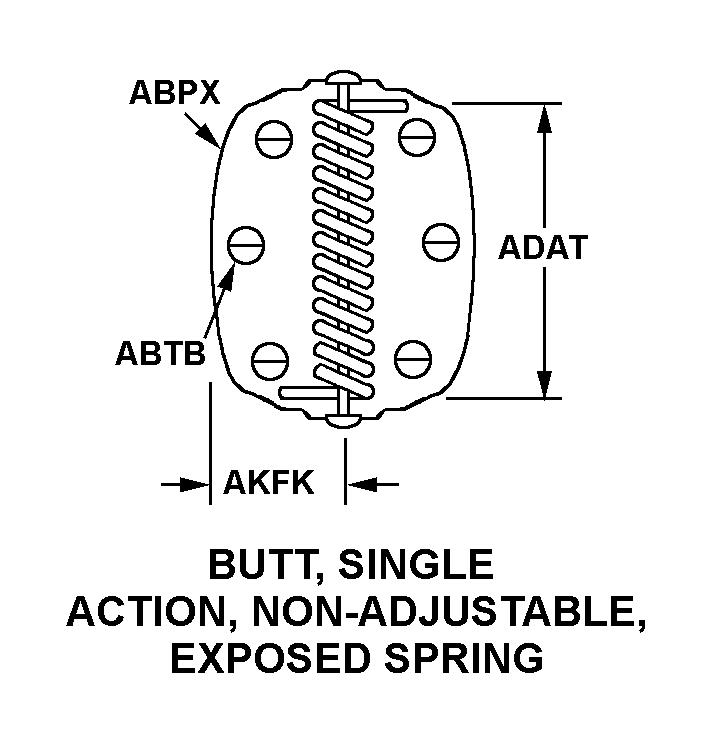

| STYLE DESIGNATOR | 36 BUTT, SINGLE ACTION, NON-ADJUSTABLE, EXPOSED SPRING |
| MATERIAL THICKNESS | 0.050 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.145 INCHES NOMINAL |
| BODY WIDTH | 1.500 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 0.562 INCHES NOMINAL |
| PIN TIP STYLE | 3 BALL |
| HINGE MOUNTING TYPE | FULL SURFACE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| PIN REMOVABILITY | NONREMOVABLE |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | ANY ACCEPTABLE |
| MOUNTING HOLE QUANTITY | 4 |
| PERFORMANCE TYPE | LIGHT DUTY |
