NSN 5340-00-229-4245 MS2795648, MS27956-48, 00-229-4245
Product Details | BUTT HINGE

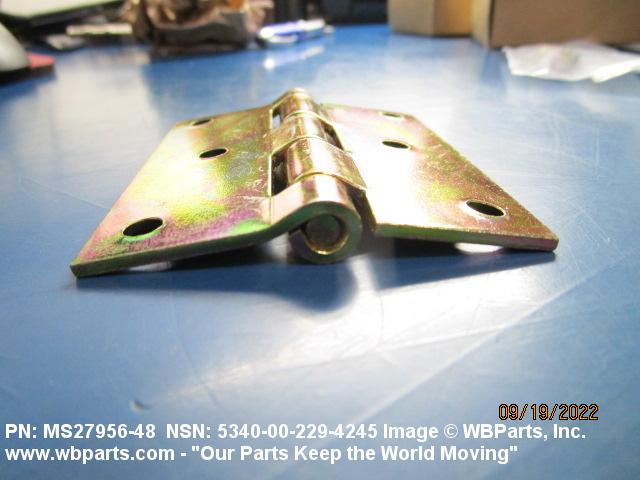

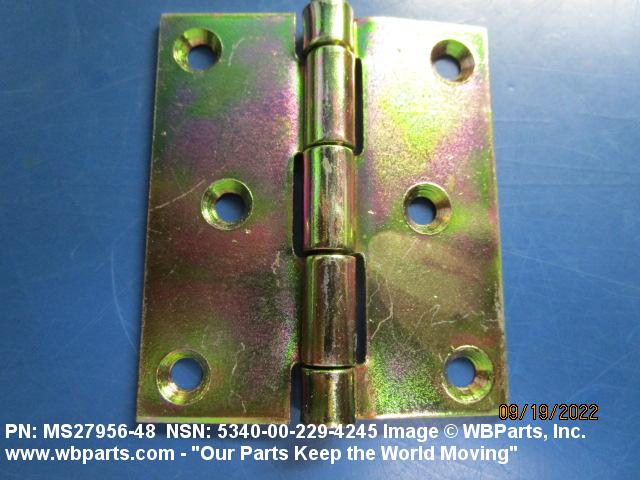

5340-00-229-4245 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: MS2795648, MS27956-48, 5340-00-229-4245, 00-229-4245, 5340002294245, 002294245
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-229-4245 | 22894 ( HINGE, BUTT ) |

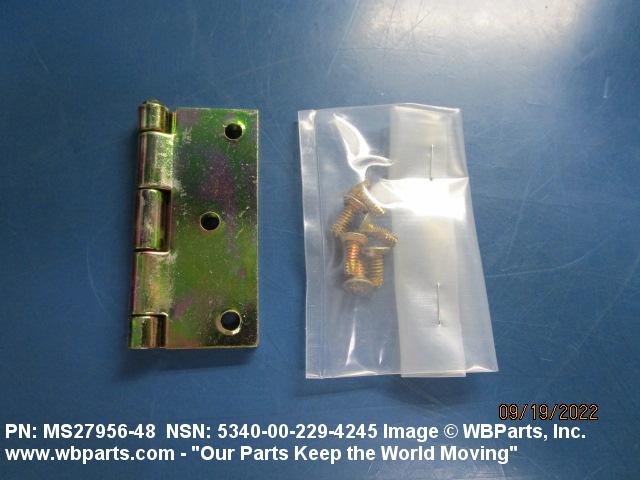

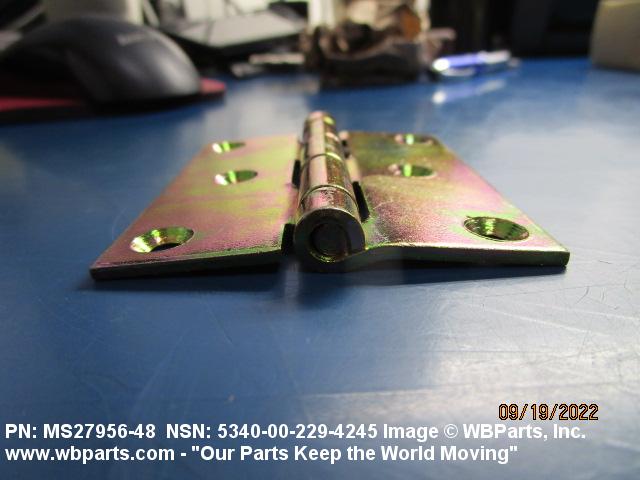

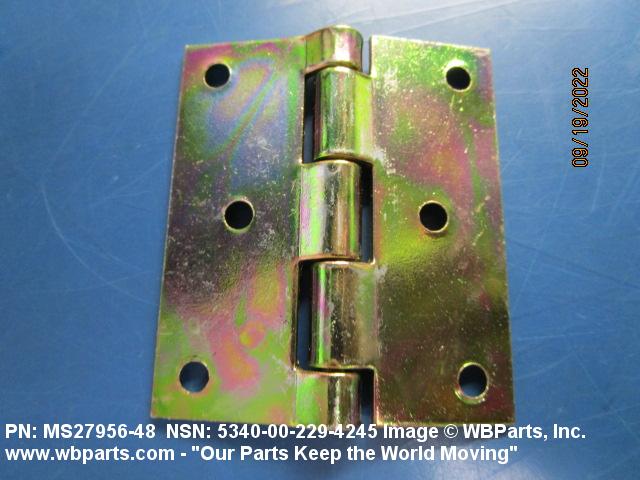

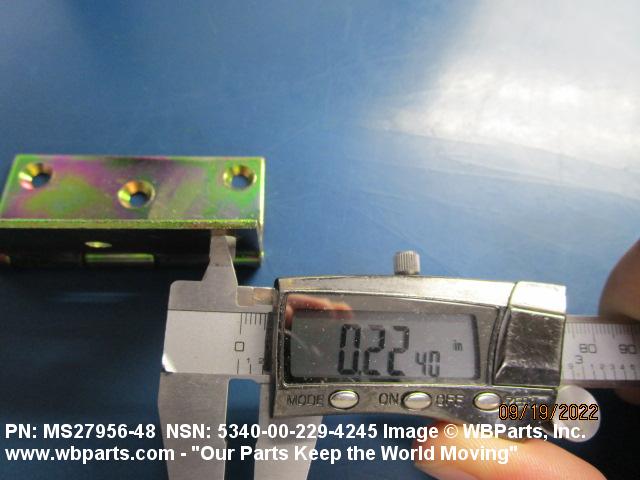

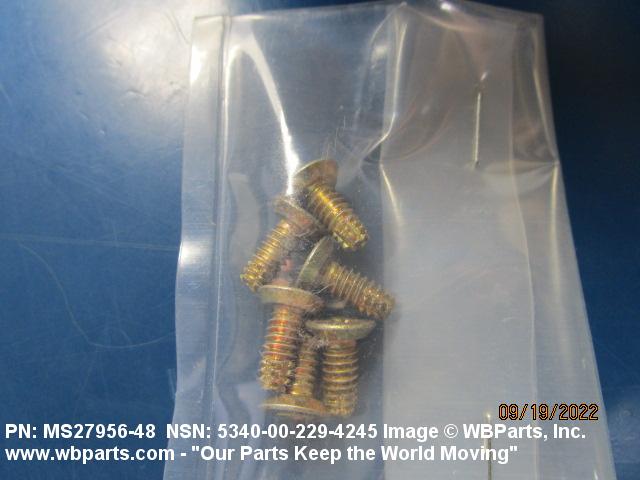

Drawings & Photos | NSN 5340-00-229-4245
Demand History | NSN 5340-00-229-4245
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-229-4245 | 2024-01-26 | 390 | US |
| MS2795648 | 2023-09-254 | 200 | us |
| 5340-00-229-4245 | 2023-05-135 | 131 | United States |
| 5340-00-229-4245 | 2023-05-127 | 150 | DIBBS |
| 5340-00-229-4245 | 2023-04-109 | 100 | us |
| 5340-00-229-4245 | 2023-04-104 | 50 | DIBBS |
| 5340-00-229-4245 | 2023-04-93 | 131 | United States |
| 5340-00-229-4245 | 2023-04-93 | 50 | DIBBS |
| 5340-00-229-4245 | 2023-03-81 | 131 | US |
| 5340-00-229-4245 | 2022-09-257 | 37 | United States |
| 5340-00-229-4245 | 2022-05-129 | 50 | DIBBS |
| 5340-00-229-4245 | 2022-04-115 | 50 | DIBBS |
| 5340-00-229-4245 | 2022-04-102 | 50 | DIBBS |
| 5340-00-229-4245 | 2021-10-284 | 100 | DIBBS |
| 5340-00-229-4245 | 2021-02-33 | 110 | DIBBS |
| 5340-00-229-4245 | 2020-11-316 | 100 | DIBBS |
| 5340-00-229-4245 | 2020-08-223 | 110 | DIBBS |
| 5340-00-229-4245 | 2019-01-23 | 72 | DIBBS |
| 5340-00-229-4245 | 2018-12-360 | 150 | DIBBS |
| 5340-00-229-4245 | 2018-12-351 | 150 | DIBBS |
| 5340-00-229-4245 | 2018-01-17 | 100 | DIBBS |
| 5340-00-229-4245 | 2016-01-12 | 20 | DIBBS |
| 5340-00-229-4245 | 2014-10-300 | 324 | DIBBS |
| 5340-00-229-4245 | 2014-10-288 | 324 | DIBBS |
| 5340-00-229-4245 | 2014-09-264 | 40 | DIBBS |
| 5340-00-229-4245 | 2013-08-232 | 180 | DIBBS |
| 5340-00-229-4245 | 2013-02-59 | 6 | DIBBS |
| 5340-00-229-4245 | 2013-02-43 | 6 | DIBBS |
| 5340-00-229-4245 | 2012-01-17 | 18 | DIBBS |
| 5340-00-229-4245 | 2011-06-181 | 198 | DIBBS |
| 5340-00-229-4245 | 2010-08-224 | 2 | DIBBS |
| 5340-00-229-4245 | 2010-03-74 | 12 | DIBBS |
| 5340-00-229-4245 | 2009-12-348 | 24 | DIBBS |
Cross Reference | NSN 5340-00-229-4245
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27956-48 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-229-4245
Related Products | NSN 5340-00-229-4245
Technical Data | NSN 5340-00-229-4245
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | BRASS, ASTM B121-66 PIN AND STEEL, FED STD 66, AISI 302, 303, OR 305/SAE 30302, 30303 OR 30305 PIN AND STEEL, ASTM A245-58 BODY |
| SURFACE TREATMENT AND LOCATION | ZINC, QQ-Z-325, TYPE 2, CLASS 2 BODY |
| STYLE DESIGNATOR | 10 BUTT |

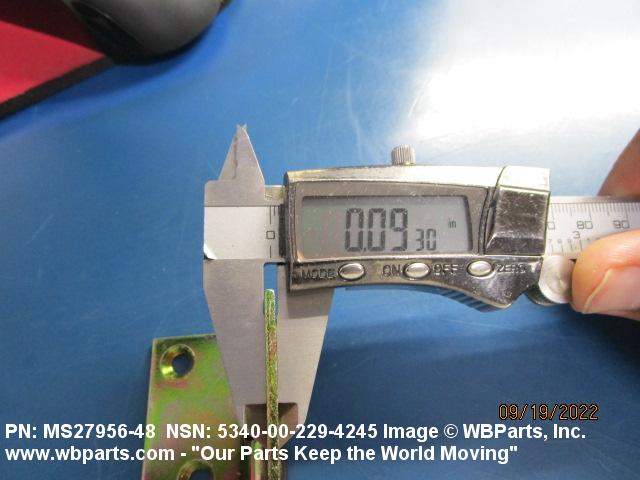

| MATERIAL THICKNESS | 0.092 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.196 INCHES NOMINAL |

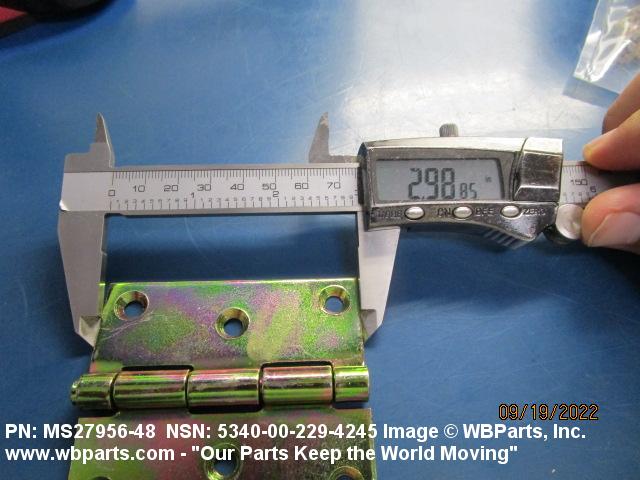

| BODY WIDTH | 3.000 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 1.250 INCHES NOMINAL |
| HINGE MOUNTING TYPE | FULL MORTISE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| PIN REMOVABILITY | REMOVABLE |
| RISING PIN | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 5 |
| MOUNTING HOLE QUANTITY | 6 |
| PERFORMANCE TYPE | NOT RATED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27956-48 |
Restrictions/Controls & Freight Information | NSN 5340-00-229-4245
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095290 | HINGES/BUTTS NOI METAL O/T I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
