NSN 5340-00-240-2306 SC1078K-4 IN., SC1078K4IN, SC290-ZN 4INCH
Product Details | BARREL BOLT

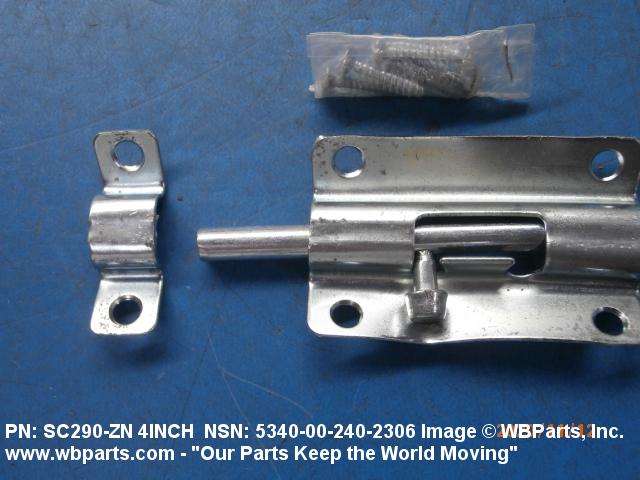

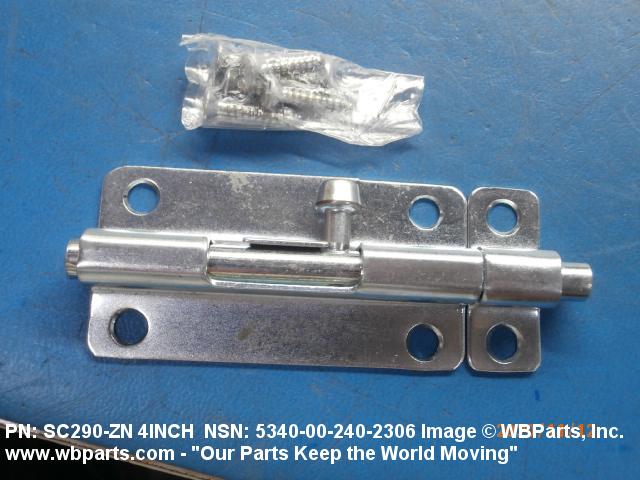

5340-00-240-2306 A bolt with a cylindrical bar guided in a cylindrical socket or barrel, mounted on a single attachment plate and manually operated by means of a knob projecting from approximately mid-length of the bar. It is usually installed in a horizontal position. Excludes BOLT (2), CHAIN; BOLT (2), FOOT; and BOLT (2), WINDOW, SPRING.
Part Alternates: SC1078K-4 IN., SC1078K4IN, SC290-ZN 4INCH, SC290ZN4INCH, FFH00111TYPEF1011C, 5340-00-240-2306, 00-240-2306, 5340002402306, 002402306
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-240-2306 | 06596 ( BOLT, BARREL ) |

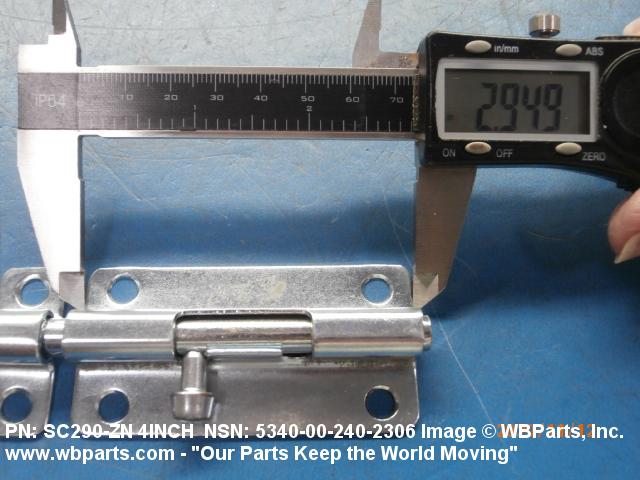

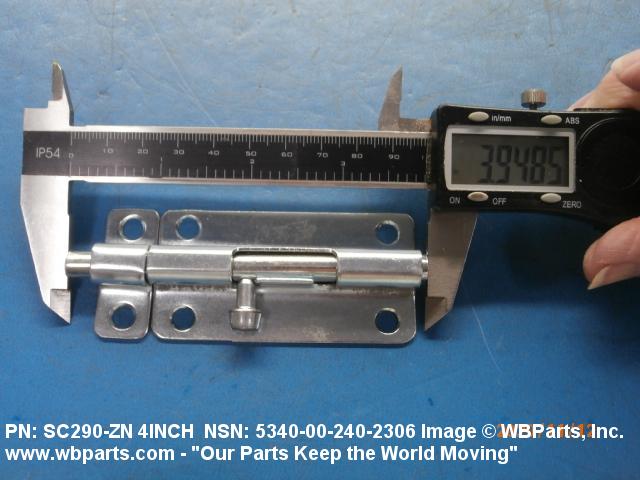

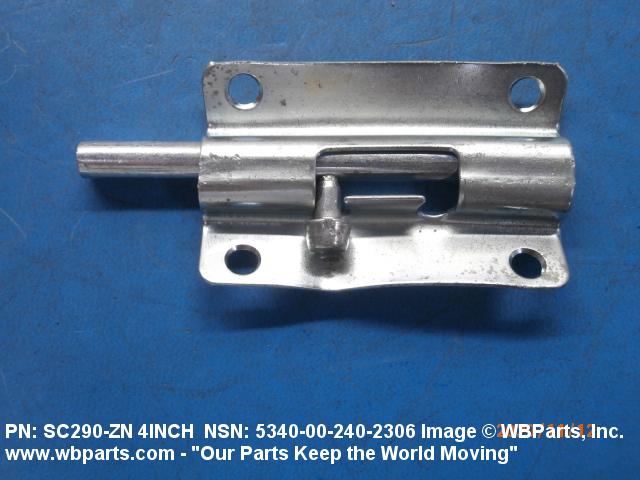

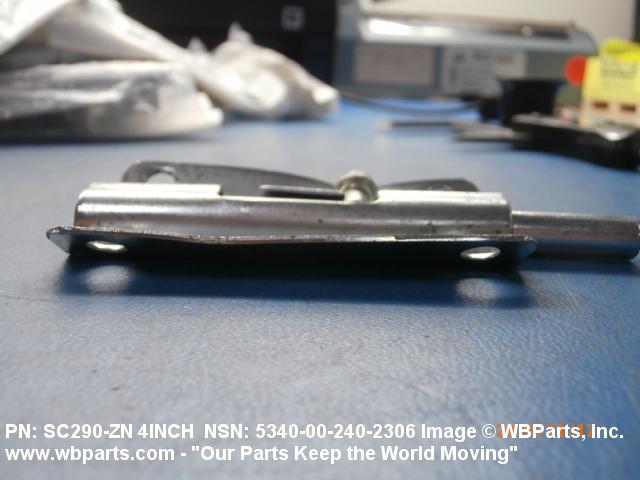

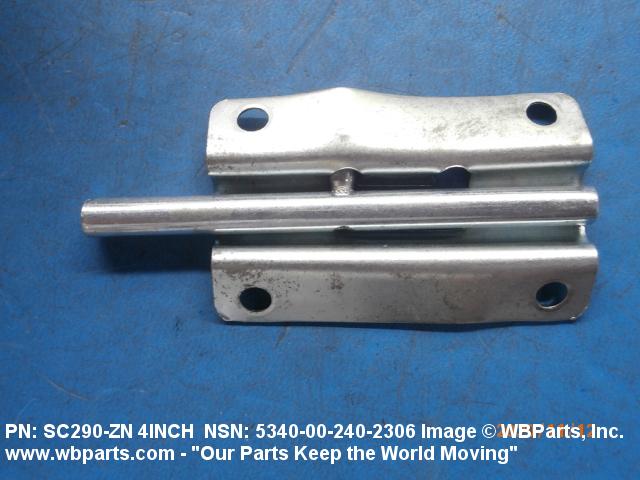

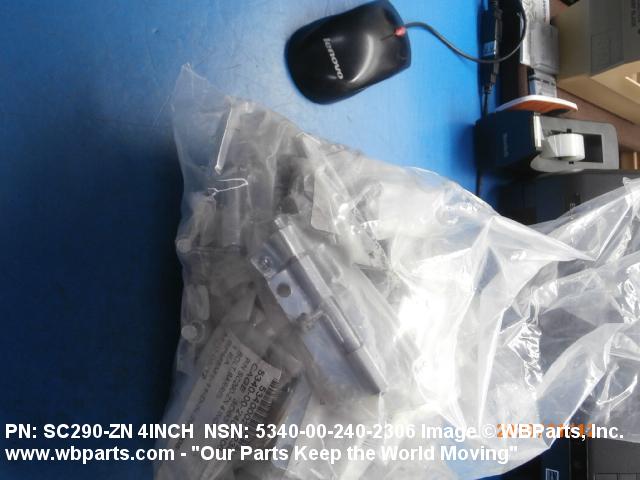

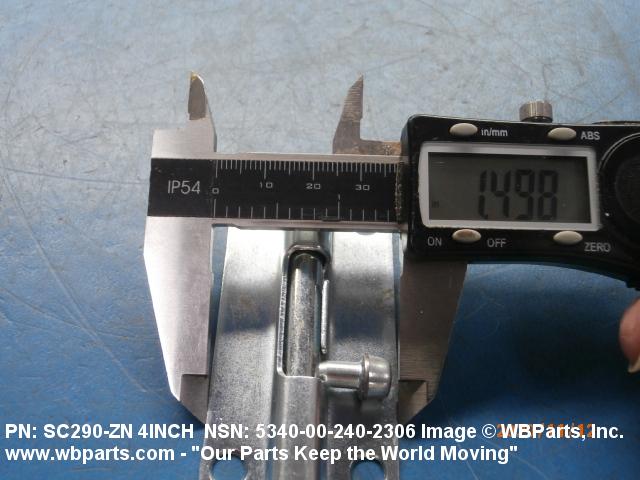

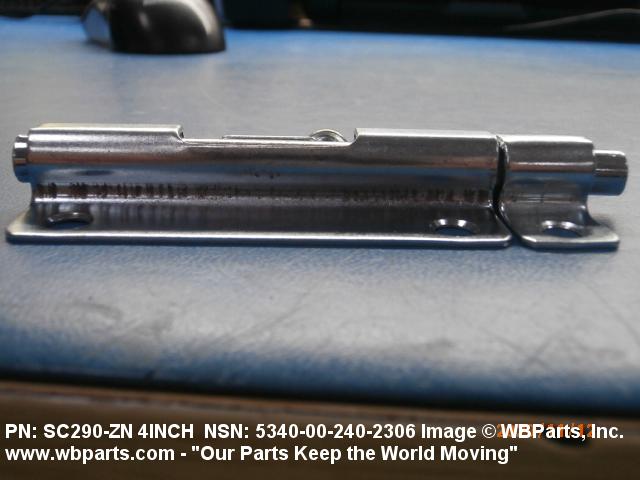

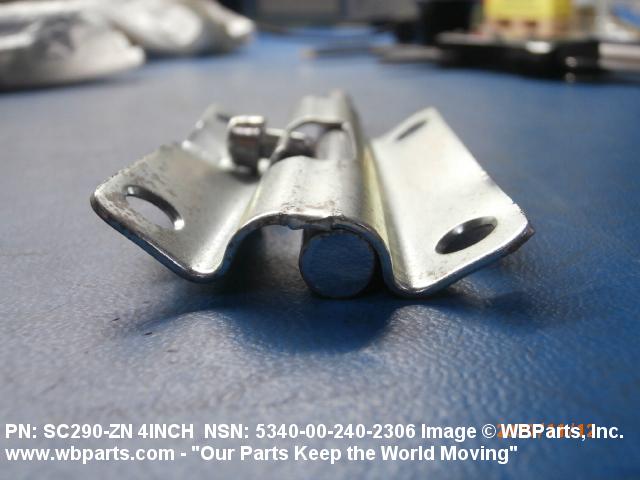

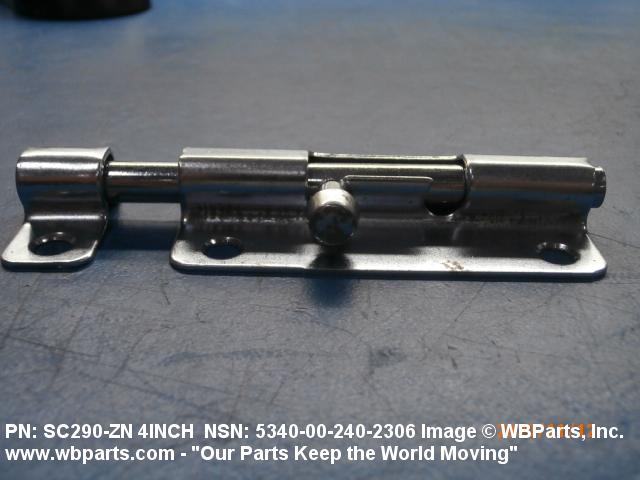

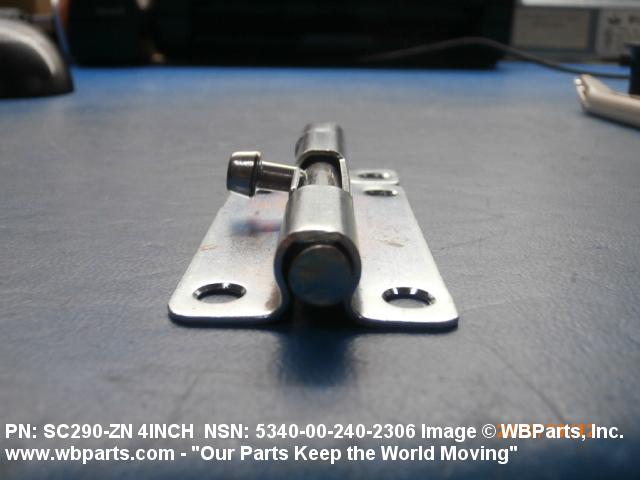

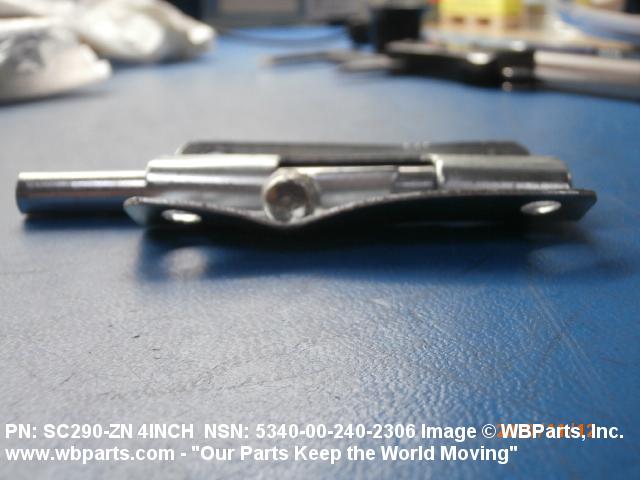

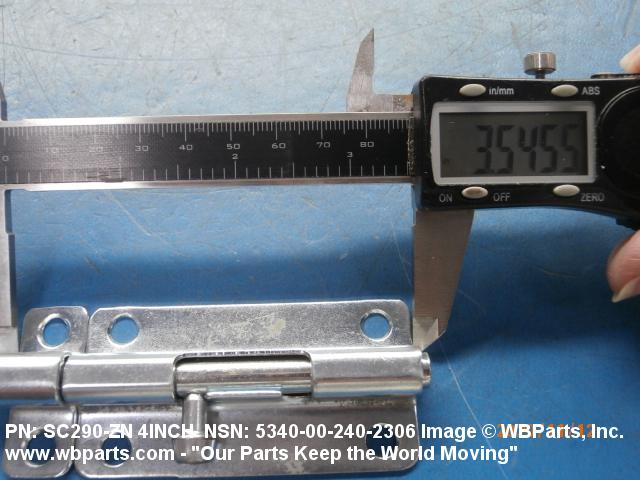

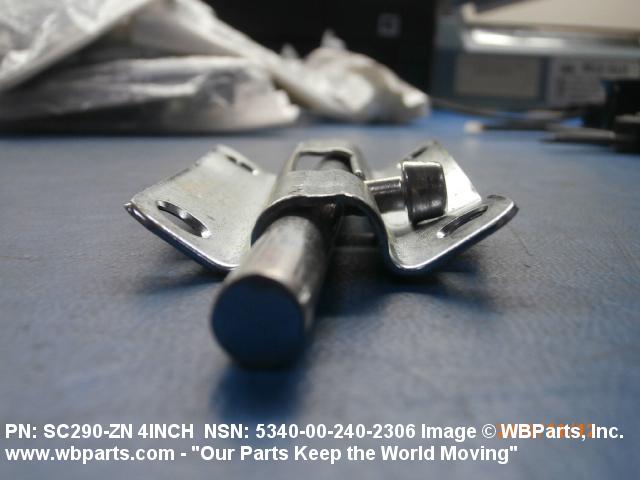

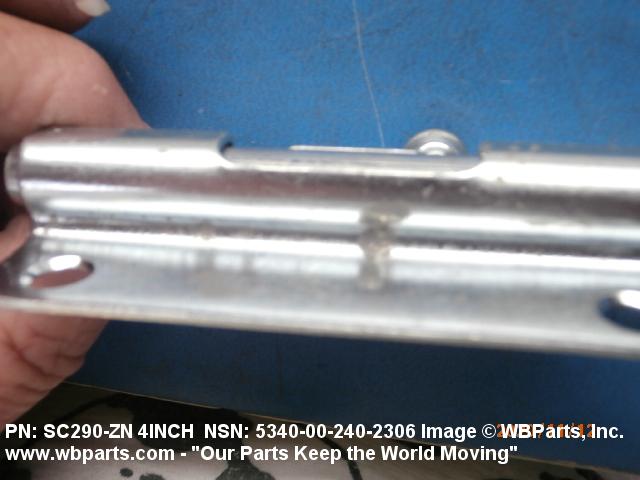

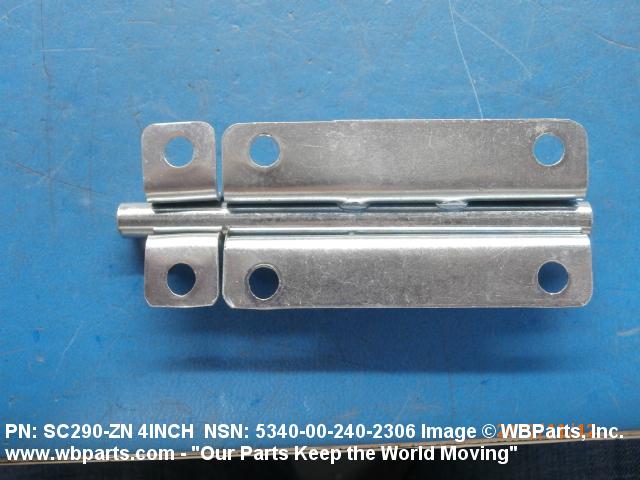

Drawings & Photos | NSN 5340-00-240-2306
Demand History | NSN 5340-00-240-2306
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SC290-ZN 4INCH | 2025-04-100 | 947 | DIBBS |
| SC290-ZN 4INCH | 2021-10-286 | 1339 | DIBBS |
| SC290-ZN 4INCH | 2021-07-199 | 929 | DIBBS |
| 5340-00-240-2306 | 2021-05-145 | 50 | United States |
| SC290-ZN 4INCH | 2020-11-322 | 93 | DIBBS |
| 5340-00-240-2306 | 2020-10-281 | 50 | United States |
| SC290-ZN 4INCH | 2020-10-281 | 1280 | DIBBS |
| 5340-00-240-2306 | 2020-09-253 | 30 | United States |
| SC290-ZN 4INCH | 2020-08-233 | 93 | DIBBS |
| SC290-ZN 4INCH | 2020-08-231 | 93 | DIBBS |
| SC290-ZN 4INCH | 2020-08-219 | 93 | DIBBS |
| SC290-ZN 4INCH | 2020-07-211 | 93 | DIBBS |
| 5340-00-240-2306 | 2020-01-16 | 4 | United States |
| 5340-00-240-2306 | 2020-01-03 | 4 | United States |
| 5340-00-240-2306 | 2019-12-361 | 4 | US |
| SC290-ZN 4INCH | 2019-05-121 | 1208 | DIBBS |
| FFH00111TYPEF1011C | 2017-01-25 | 12 | United States |
| 5340-00-240-2306 | 2010-11-322 | 2000 | DIBBS |
| 5340-00-240-2306 | 2010-06-168 | 1282 | DIBBS |
| 5340-00-240-2306 | 2010-03-78 | 855 | DIBBS |
| 5340-00-240-2306 | 2009-12-364 | 469 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-240-2306
Related Products | NSN 5340-00-240-2306
Technical Data | NSN 5340-00-240-2306
| Characteristic | Specifications |
|---|---|

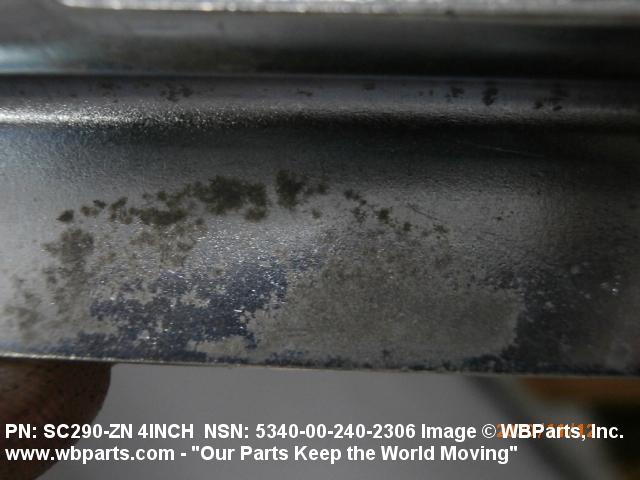

| SURFACE TREATMENT | ZINC BAR ZINC PLATE |
| LENGTH | 4.000 INCHES NOMINAL PLATE |

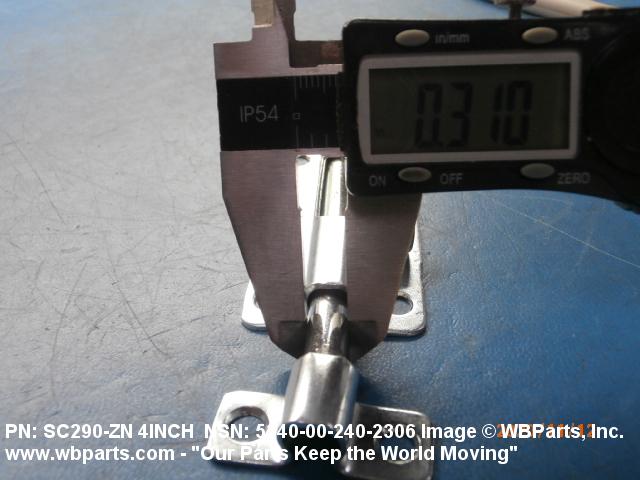

| DIAMETER | 0.313 INCHES NOMINAL BAR |
| WIDTH | 1.125 INCHES NOMINAL PLATE |
| STRIKE TYPE | RIM |
| STRIKE QUANTITY | 1 |
| SPECIAL FEATURES | WEIGHT:3.375 LBS PER DOZEN;BAR O/A LG:4.000 IN.NOM;MATL:STEEL; |
| NONDEFINITIVE SPEC/STD DATA | F1011C TYPE |
Restrictions/Controls & Freight Information | NSN 5340-00-240-2306
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-240-2306
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
