NSN 5340-00-299-8721 00-299-8721, 002998721
Product Details | SWIVEL CASTER
5340-00-299-8721 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: 5340-00-299-8721, 00-299-8721, 5340002998721, 002998721
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-299-8721 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-00-299-8721
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-299-8721
Related Products | NSN 5340-00-299-8721
Technical Data | NSN 5340-00-299-8721
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY BODY RUBBER TREAD RUBBER TIRE STEEL BODY |
| SURFACE TREATMENT AND LOCATION | ANODIZED BODY CADMIUM BODY ZINC BODY |
| SAFE OPERATING LOAD RATING | 125.0 POUNDS MINIMUM |
| STYLE DESIGNATOR | 6 SWIVEL OFFSET |
| WHEEL DIAMETER | 5.000 INCHES NOMINAL |
| TREAD WIDTH | 0.937 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 5.562 INCHES NOMINAL |
| STEM STYLE | 13 THREADED |
| STEM LENGTH | 1.125 INCHES NOMINAL |
| STEM THREAD SERIES DESIGNATOR | UNC |
| STEM THREAD QUANTITY PER INCH | 11 |
| STEM THREAD DIAMETER | 0.625 INCHES NOMINAL |

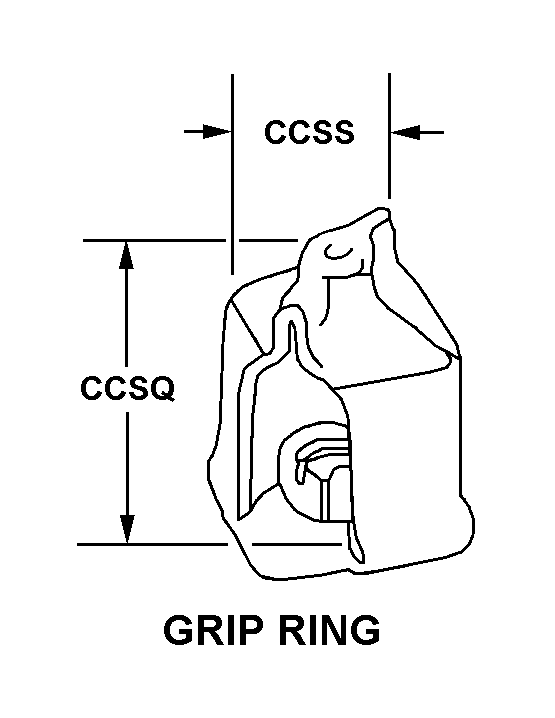

| STEM SOCKET STYLE | 25 GRIP RING |
| STEM SOCKET DEPTH | 2.000 INCHES NOMINAL |
| STEM SOCKET WIDTH | 1.250 INCHES NOMINAL |
| WHEEL BEARING TYPE | PLAIN, SELF-LUBRICATED |
| SWIVEL BEARING TYPE | BALL |
| SWIVEL BEARING ARRANGEMENT | TWO ROW |
| KING BOLT BEARING TYPE | BALL |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | SOLID |
| FEATURES PROVIDED | BRAKE LOCK AND SWIVEL LOCK |
| DEPARTURE FROM CITED DOCUMENT | PARAGRAPHS 3.3,CASTERS,AND 3.4,FINISH |
Restrictions/Controls & Freight Information | NSN 5340-00-299-8721
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041725 | CASTERS NOI IN BAGS/BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-299-8721
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9M | Defense Supply Center Philadelphia Director of Medical Materiel Philadelphia, PA 19145 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
