NSN 5340-00-318-7479 W2-4-1, W-2-4-2, W2-4-2
Product Details | HAND CRANK
5340-00-318-7479 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.20229900045Miscellaneous Engine Accessories, Nonaircraft53400020Hardware, Commercial
Part Alternates: W2-4-1, W-2-4-2, W2-4-2, W242, W241, 20784PCW242, 20784PCW2-4-2, 40022S4PC26, 40049S1PC18, 40050S2PC18, 412732PC16, 41273-2PC16, 5340-00-318-7479, 00-318-7479, 5340003187479, 003187479
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-318-7479 | 17533 ( CRANK, HAND ) |
Drawings & Photos | NSN 5340-00-318-7479
Cross Reference | NSN 5340-00-318-7479
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20784PCW2-4-2 | 05744 | VIGOR SHIPYARDS, INC. |
| 20784PCW2-4-2 | 31923 | TODD COMBUSTION INC |
| 40022S4PC26 | 05744 | VIGOR SHIPYARDS, INC. |
| 40049S1PC18 | 05744 | VIGOR SHIPYARDS, INC. |
| 40050S2PC18 | 05744 | VIGOR SHIPYARDS, INC. |
| 41273-2PC16 | 05744 | VIGOR SHIPYARDS, INC. |
| W-2-4-2 | 31923 | TODD COMBUSTION INC |
| W2-4-1 | 05744 | VIGOR SHIPYARDS, INC. |
| W2-4-2 | 05744 | VIGOR SHIPYARDS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-318-7479
Technical Data | NSN 5340-00-318-7479
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| SURFACE TREATMENT AND LOCATION | ALUMINUM OVERALL |

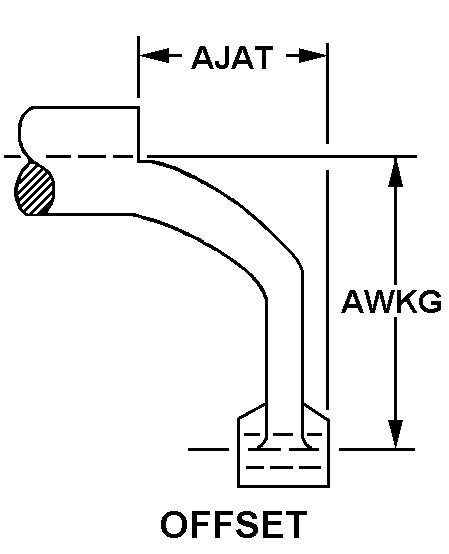

| ARM STYLE | 2 OFFSET |
| OFFSET HEIGHT | 1.200 INCHES NOMINAL |
| CRANK THROW LENGTH | 6.000 INCHES NOMINAL |
| DRIVE END STYLE | 106 EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | ANY ACCEPTABLE |
| SHANK HEIGHT | ANY ACCEPTABLE |
| DRIVE FACILITY STYLE | 130 SQUARE |
| DRIVE WIDTH | 0.750 INCHES NOMINAL |
| CRANK OVERALL LENGTH | 7.385 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-00-318-7479
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-318-7479
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
