NSN 5340-00-345-3768 CVC853, CVC85-3, 66836DR
Product Details | LINE SUPPORTING STRAP
5340-00-345-3768 A flexible strap, furnished with a buckle, specificifically designed to support other items, such as cable(s), wire(s), tube(s), and the like. The buckle may be permanently assembled and may be provided with a mounting feature. The strap may be used to bridge a channel by mounting the buckle and strap separately. Excludes CLAMP, LOOP; STRAP, RETAINING; STRAP, LEATHER; and STRAP, WEBBING.20253400020Hardware, Commercial59750032Electrical Hardware and Supplies
Part Alternates: CVC853, CVC85-3, 66836DR, 668-3-6DR, 6683DR, 668-3DR, 8538332, 5340-00-345-3768, 00-345-3768, 5340003453768, 003453768
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-345-3768 | 22129 ( STRAP, LINE SUPPORTING ) |

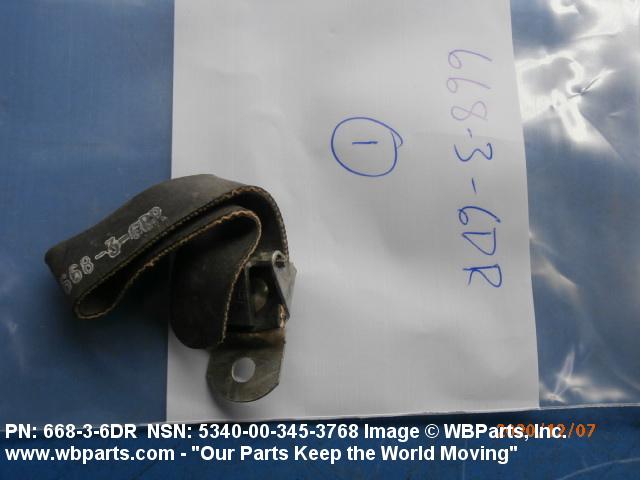

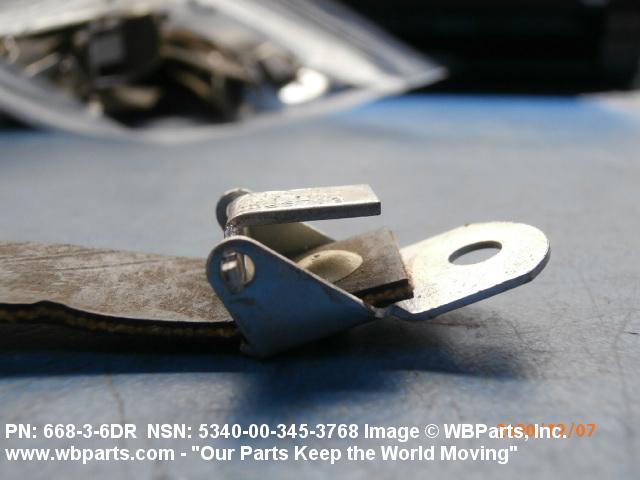

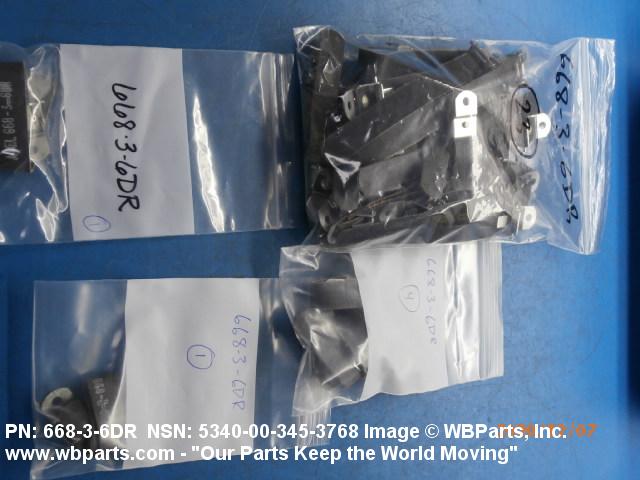

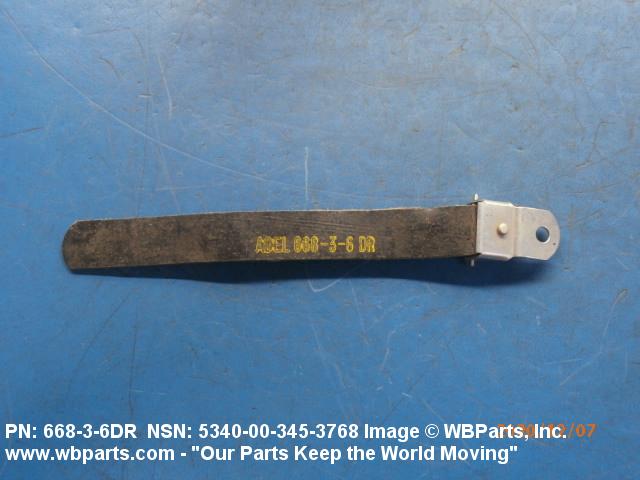

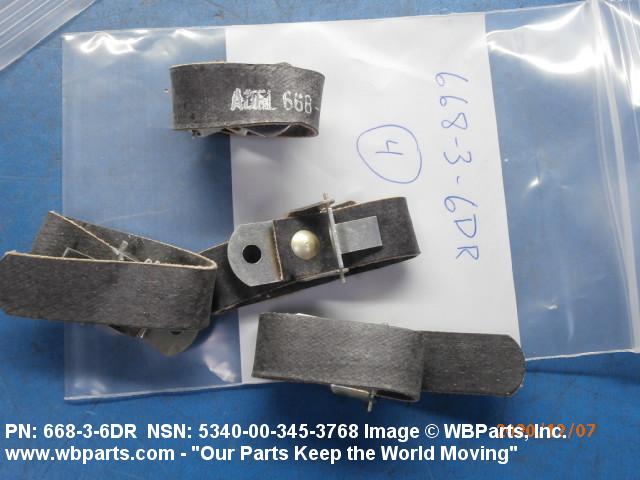

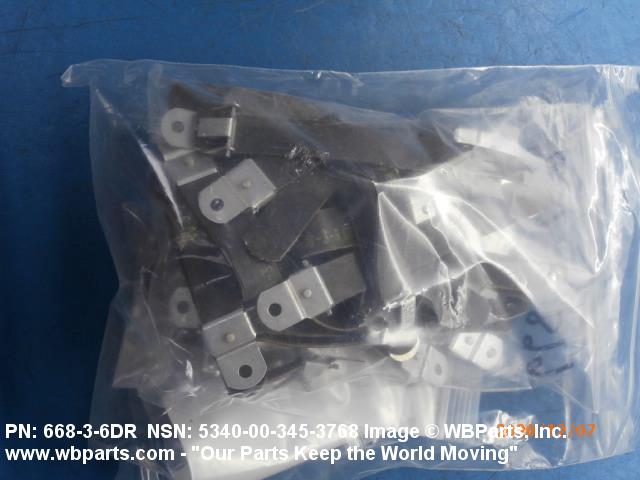

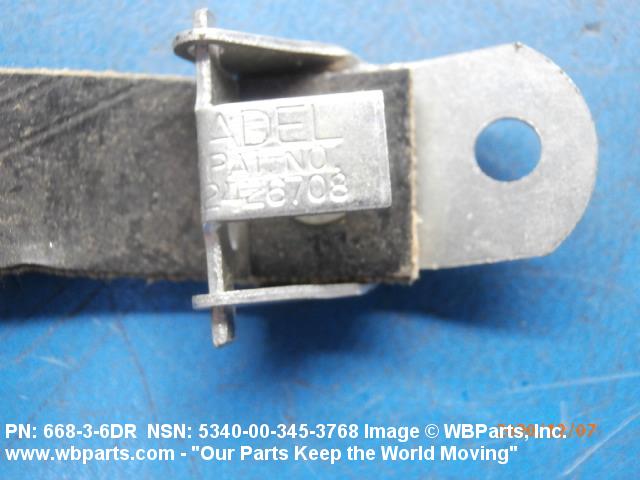

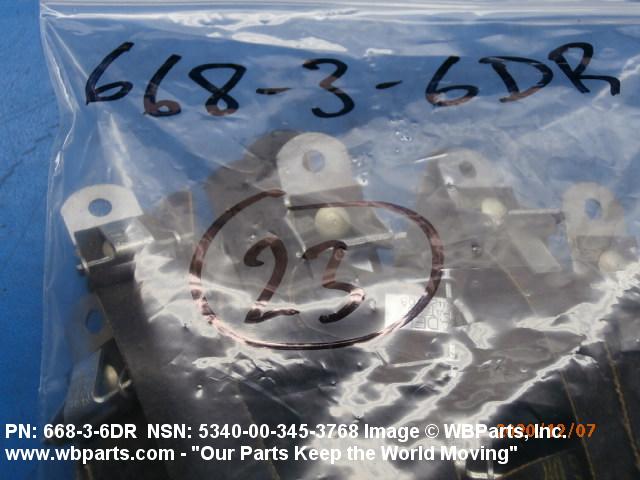

Drawings & Photos | NSN 5340-00-345-3768
Demand History | NSN 5340-00-345-3768
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-345-3768 | 2025-02-57 | 110 | United States |
| 66836DR | 2023-08-243 | 106 | United States |
| 5340-00-345-3768 | 2021-02-56 | 24 | United States |
| 66836DR | 2020-11-335 | 288 | United States |
| 5340-00-345-3768 | 2020-09-253 | 24 | United States |
Cross Reference | NSN 5340-00-345-3768
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-345-3768
Related Products | NSN 5340-00-345-3768
Technical Data | NSN 5340-00-345-3768
| Characteristic | Specifications |
|---|---|
| STRAP MATERIAL | COTTON DUCK, RUBBER IMPREGNATED |
| BUCKLE MATERIAL | STEEL |
| BUCKLE SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | J1 BOLT TYPE |

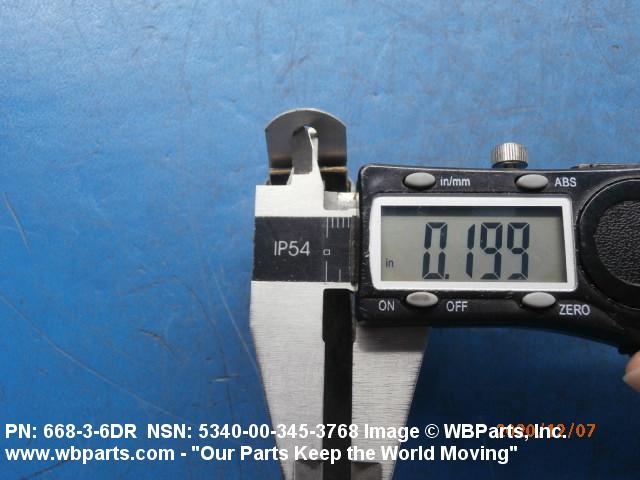

| MOUNTING HOLE DIAMETER | 0.199 INCHES NOMINAL |
| STRAP LENGTH | 6.000 INCHES NOMINAL |

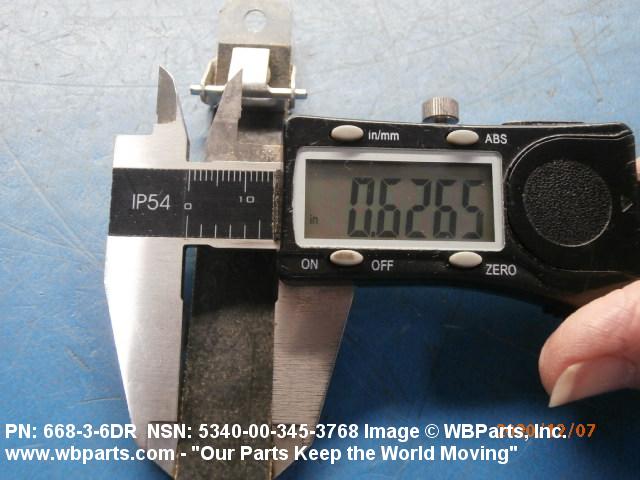

| STRAP WIDTH | 0.625 INCHES NOMINAL |

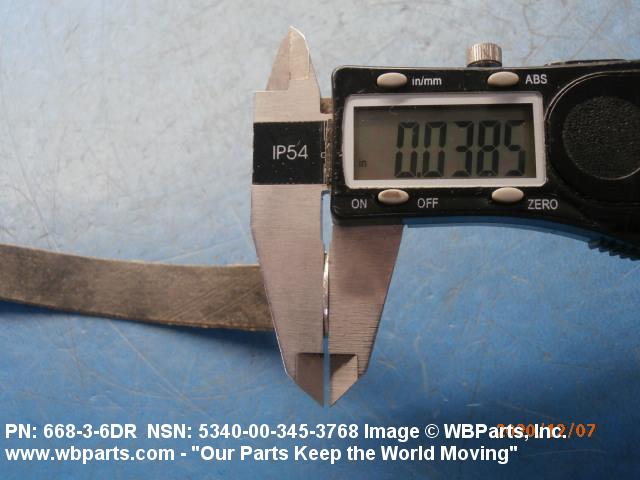

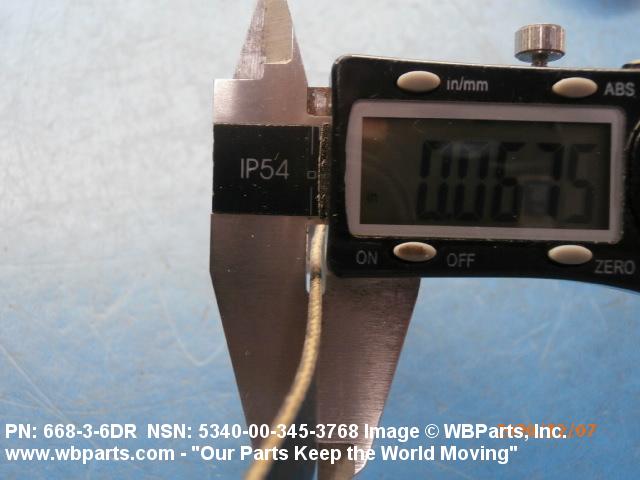

| STRAP THICKNESS | 0.063 INCHES NOMINAL |

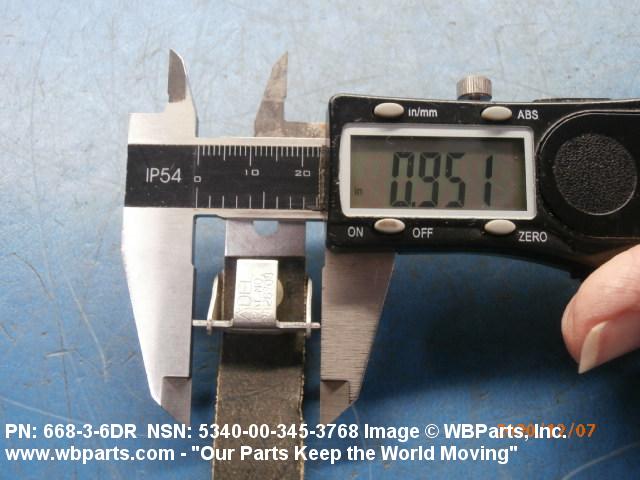

| BUCKLE OVERALL WIDTH | 0.938 INCHES NOMINAL |
| BUCKLE LENGTH | 1.063 INCHES NOMINAL |
| DISTANCE FROM MOUNTING HOLE CENTER TO BUCKLE END | 0.250 INCHES NOMINAL |
| BUCKLE MATERIAL THICKNESS | 0.035 INCHES NOMINAL |
| ANTIABRASION PAD | NOT INCLUDED |
| MANUFACTURERS CODE | 83930 |
| DESIGN CONTROL REFERENCE | 668-3-6DR |
Restrictions/Controls & Freight Information | NSN 5340-00-345-3768
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157170 | PLASTIC/RUBR STRAPS/ROPE/CORD/STRIP |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-345-3768
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
