NSN 5340-00-482-6072 MS279686, MS27968-6, AA555876
Product Details | BUTT HINGE

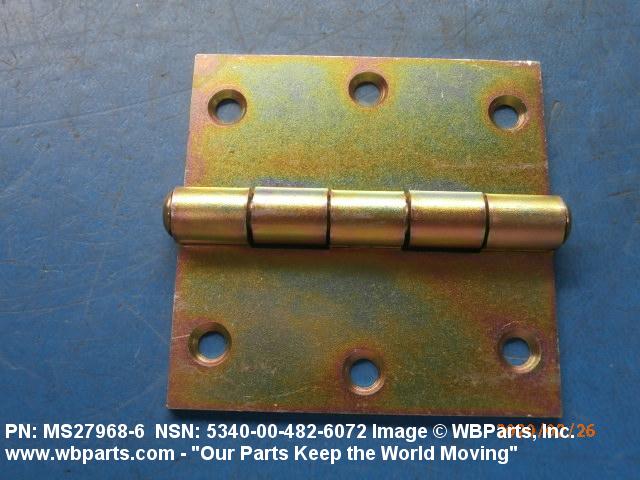

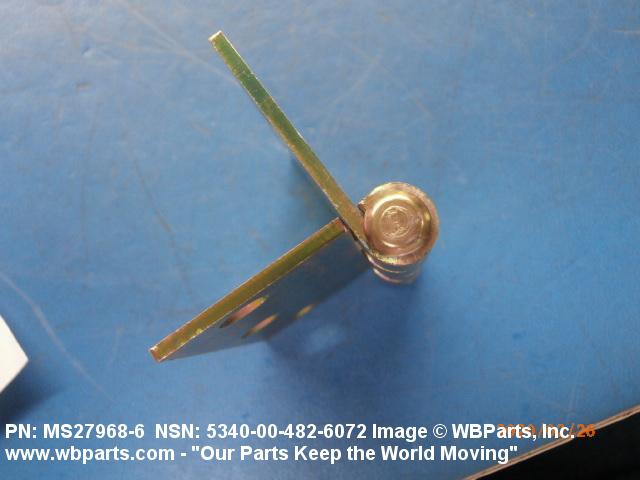

5340-00-482-6072 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: MS279686, MS27968-6, AA555876, AA55587-6, 5340-00-482-6072, 00-482-6072, 5340004826072, 004826072
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 FEB 1971 | 00-482-6072 | 22894 ( HINGE, BUTT ) |

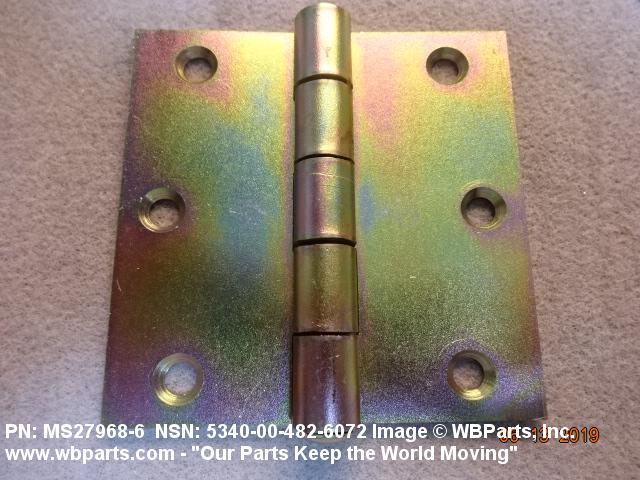

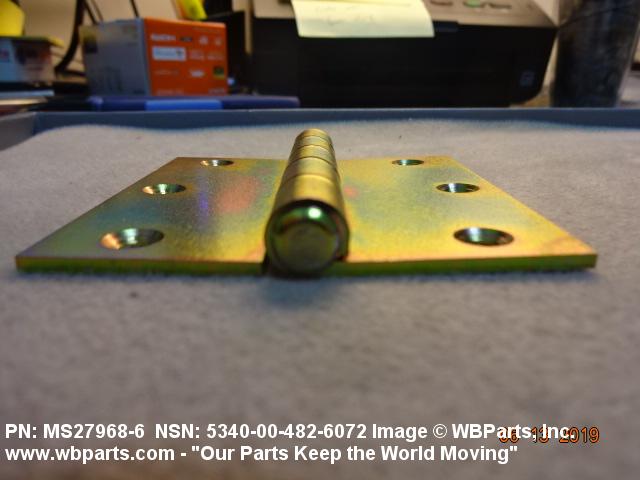

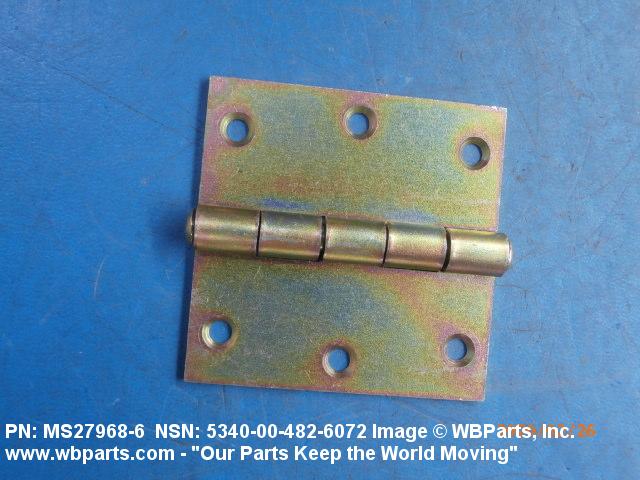

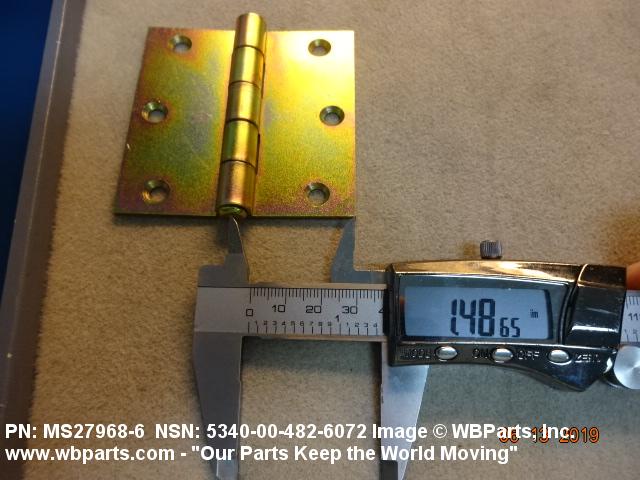

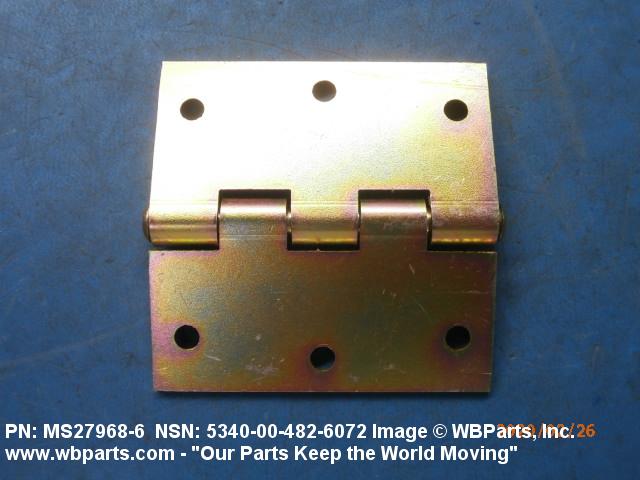

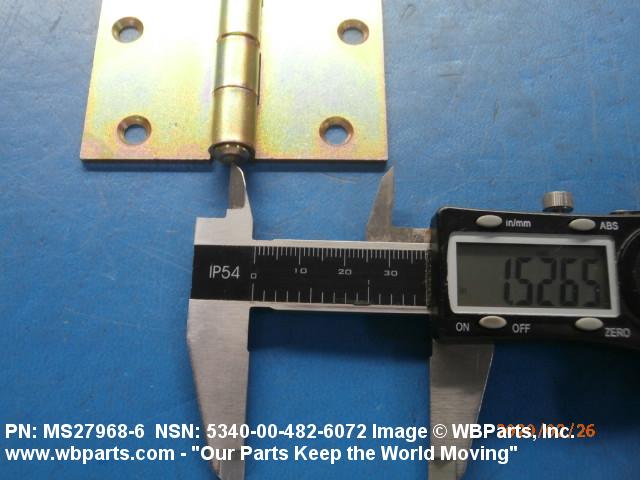

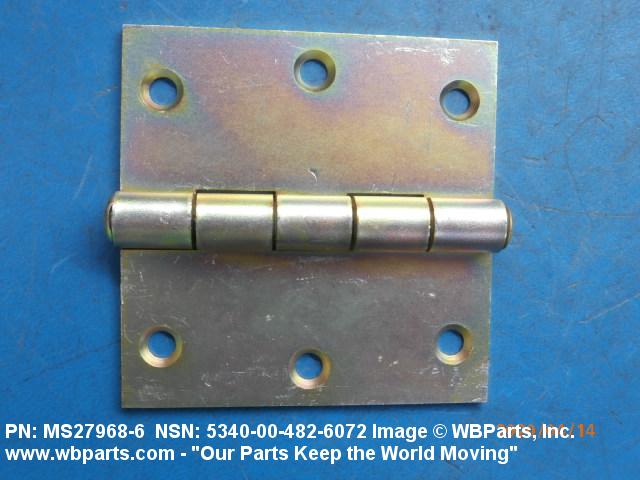

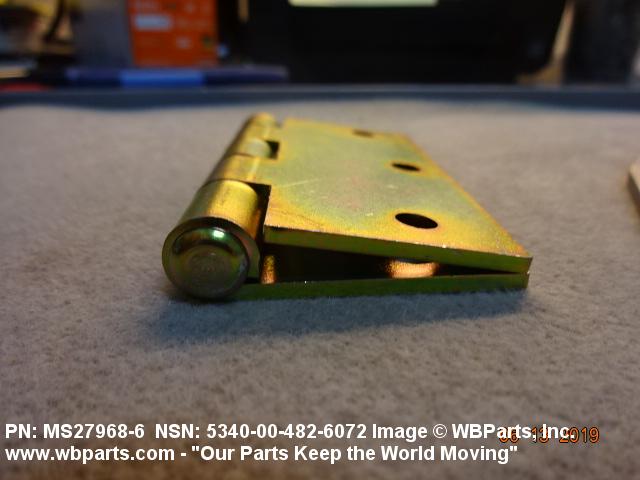

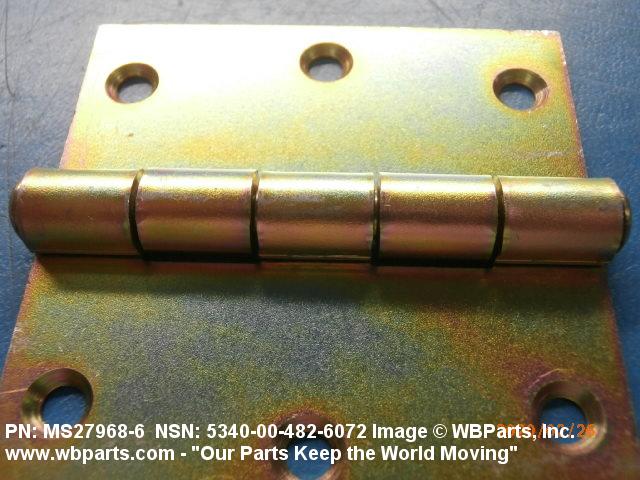

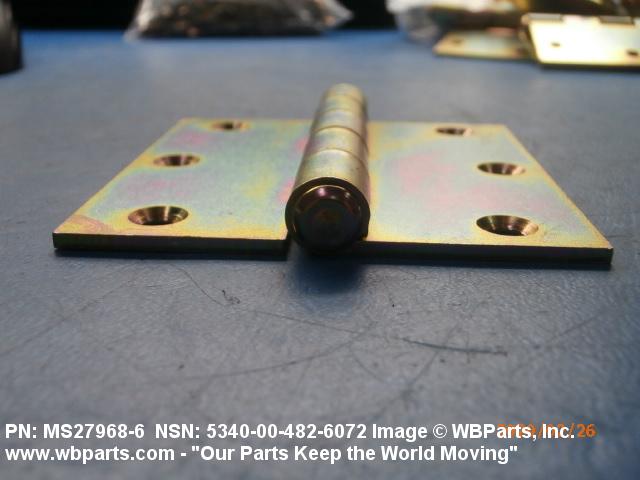

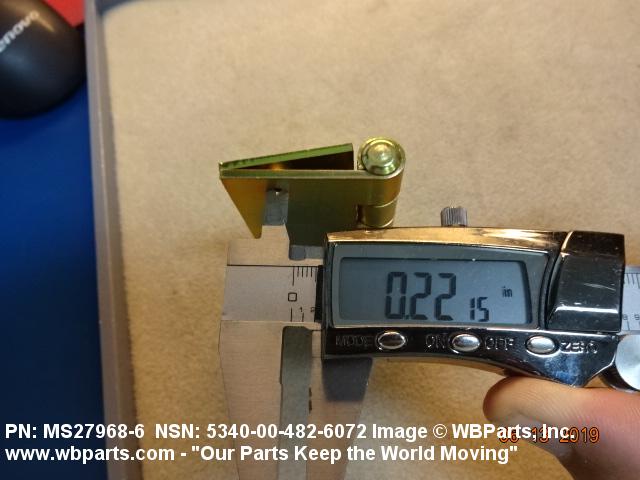

Drawings & Photos | NSN 5340-00-482-6072
Demand History | NSN 5340-00-482-6072
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-482-6072 | 2023-02-41 | 116 | US |
| 5340-00-482-6072 | 2023-02-32 | 116 | US |
| MS279686 | 2022-05-140 | 20 | US |
| 5340-00-482-6072 | 2022-04-98 | 3 | DIBBS |
| 5340-00-482-6072 | 2022-03-87 | 3 | DIBBS |
| 5340-00-482-6072 | 2021-10-280 | 3 | DIBBS |
| MS279686 | 2021-10-278 | 10 | United States |
| 5340-00-482-6072 | 2021-09-269 | 3 | DIBBS |
| 5340-00-482-6072 | 2020-10-287 | 100 | DIBBS |
| 5340-00-482-6072 | 2020-10-279 | 100 | DIBBS |
| MS279686 | 2020-02-49 | 28 | United States |
| MS279686 | 2020-02-49 | 50 | United States |
| 5340-00-482-6072 | 2019-11-323 | 3 | DIBBS |
| 5340-00-482-6072 | 2019-11-315 | 3 | DIBBS |
| MS279686 | 2019-04-99 | 100 | United States |
| 5340-00-482-6072 | 2011-12-346 | 25 | United States |
| 5340-00-482-6072 | 2008-05-150 | 52 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-482-6072
Related Products | NSN 5340-00-482-6072
Technical Data | NSN 5340-00-482-6072
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | BRASS, QQ-B-626, COMP 11 PIN AND STEEL, FED STD 66, COMP 302, 303, OR 304 PIN AND STEEL, FED STD 66, AISI OR SAE 1008 THRU 1022 BODY |
| SURFACE TREATMENT AND LOCATION | CADMIUM, QQ-P-416, TYPE 2, CLASS 2 OVERALL AND ZINC, QQ-Z-325, TYPE 2, CLASS 2 OVERALL |
| STYLE DESIGNATOR | 11 BUTT |

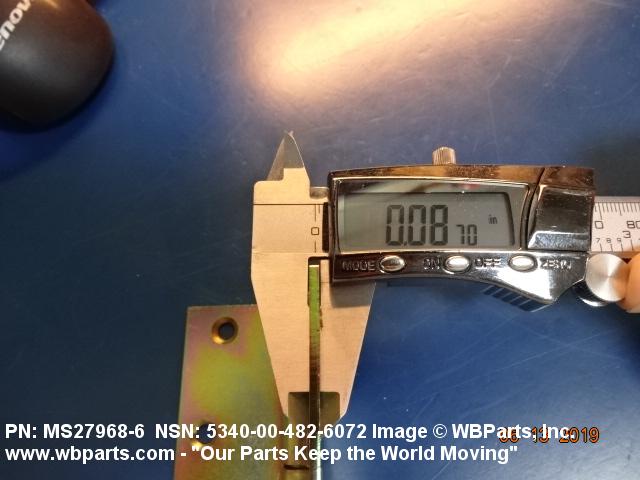

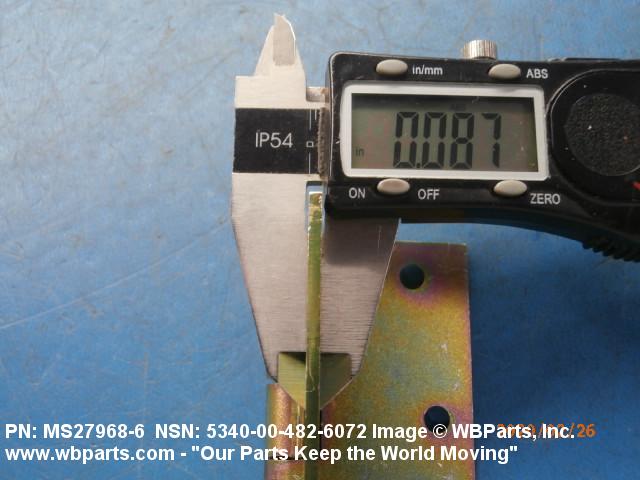

| MATERIAL THICKNESS | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.164 INCHES NOMINAL |

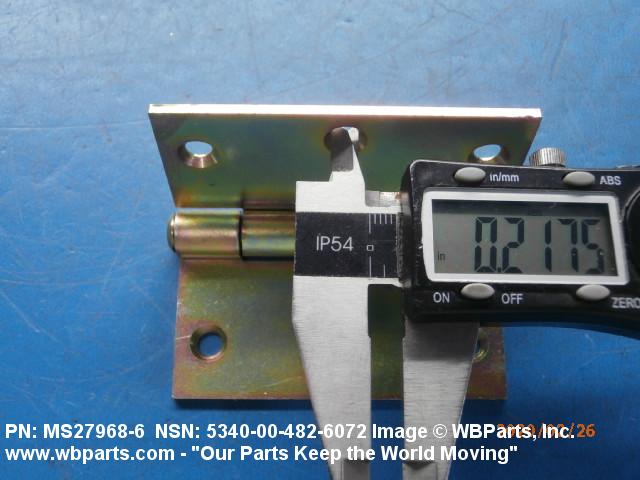

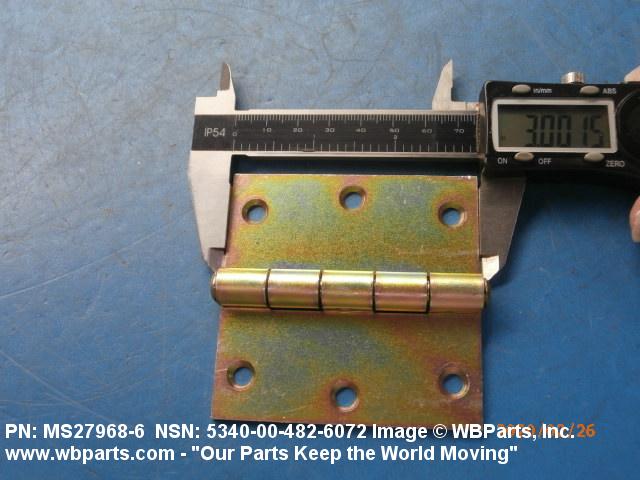

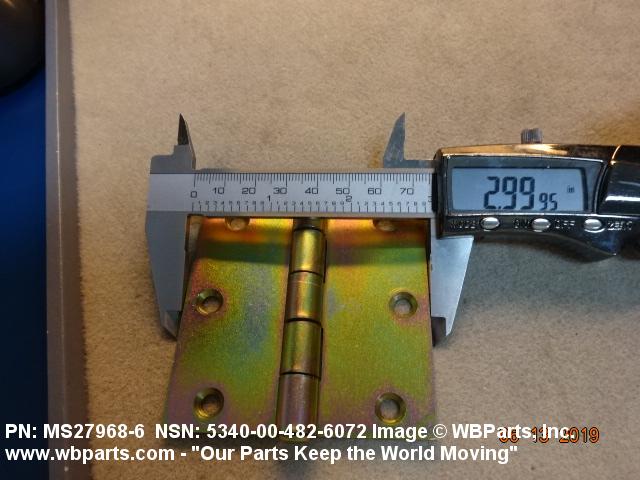

| BODY WIDTH | 2.938 INCHES MINIMUM AND 3.062 INCHES MAXIMUM |
