Product Details | WEBBING STRAP
5340-00-494-8240 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal
Part Alternates: 10190635-3, 5340-00-494-8240, 00-494-8240, 5340004948240, 101906353, 004948240
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUN 1969 | 00-494-8240 | 20659 ( STRAP, WEBBING ) |

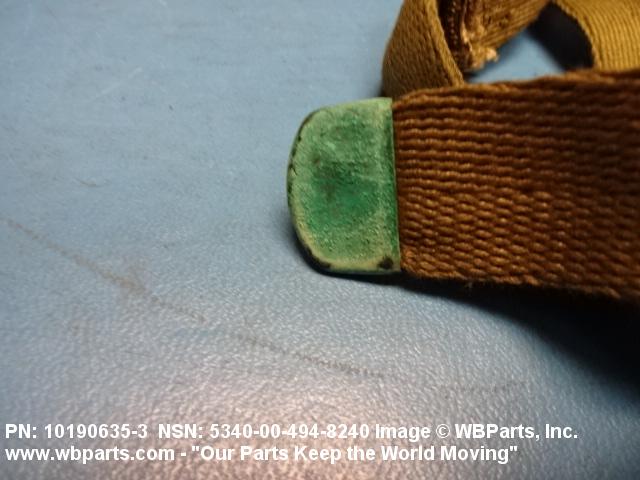

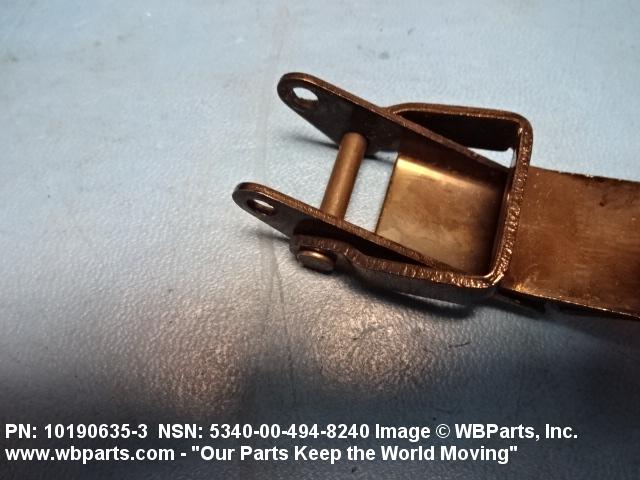

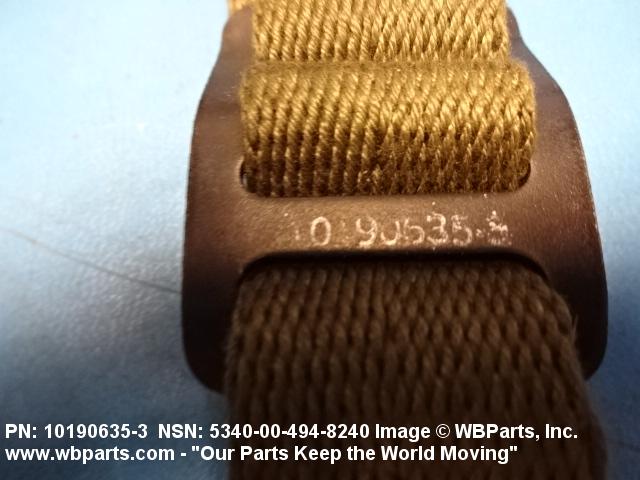

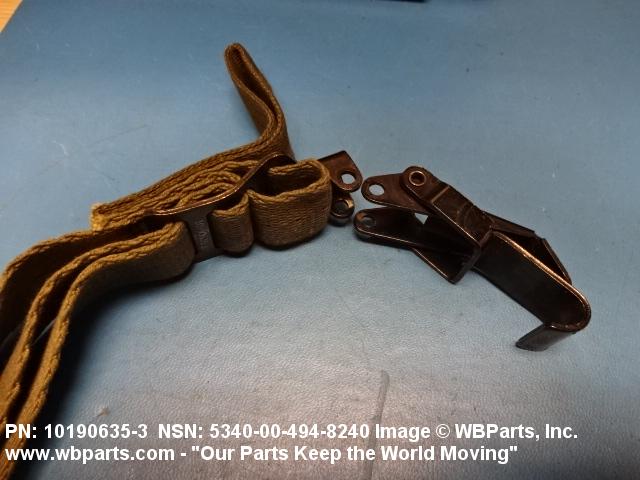

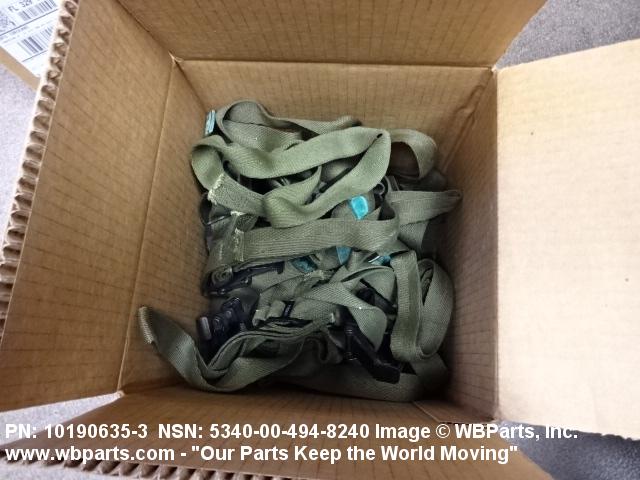

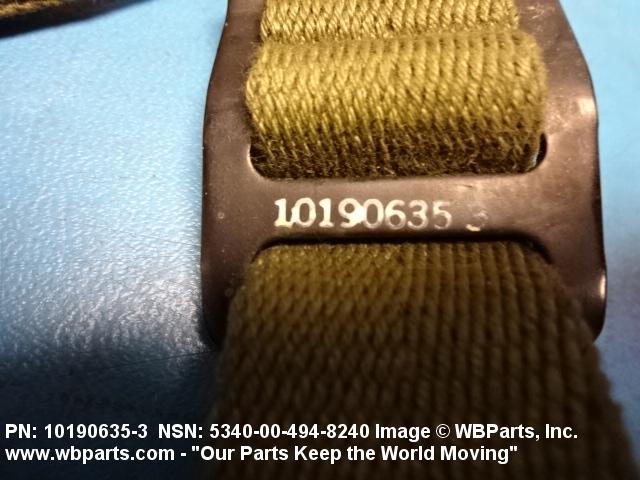

Drawings & Photos | NSN 5340-00-494-8240
Demand History | NSN 5340-00-494-8240
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-494-8240 | 2020-03-30 | 154 | US |
| 5340-00-494-8240 | 2020-03-11 | 1 | DIBBS-RFPs |
| 5340-00-494-8240 | 2019-01-23 | 16 | United States |
| 5340-00-494-8240 | 2019-01-23 | 28 | United States |
| 5340-00-494-8240 | 2019-01-23 | 28 | United States |
| 10190635-3 | 2019-01-18 | 28 | US |
| 5340-00-494-8240 | 2019-01-18 | 28 | MANUAL |
| 5340-00-494-8240 | 2018-12-07 | 28 | United States |
| 5340-00-494-8240 | 2018-12-06 | 28 | United States |
| 5340-00-494-8240 | 2018-10-30 | 1 | United States |
| 101906353 | 2009-01-23 | 10 | US |
Cross Reference | NSN 5340-00-494-8240
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10190635-3 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-494-8240
Related Products | NSN 5340-00-494-8240
5340-00-494-8690, 5340-00-494-8840, 5340-00-494-9156, 5340-00-494-9163, 5340-00-494-9176
Technical Data | NSN 5340-00-494-8240
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON, MIL-W-5665, TYPE 17, CLASS 2B OR COTTON MIL-W-5665,TY 17,CL 3 |
| ENVIRONMENTAL PROTECTION | FUNGUS RESISTANT |
| LENGTH | 16.000 INCHES NOMINAL |
| WIDTH | 1.000 INCHES NOMINAL |
| END TYPE | FOLDED W/ATTACHMENT |
| FOLD TYPE | LOOSE |
| ATTACHMENT METHOD FOR WHICH DESIGNED | SEWED |
| END ATTACHMENT/FASTENING FACILITY | BUCKLE |
| FASTENED BUCKLE FEATURE | INCLUDED |
| BUCKLE FASTENING METHOD | LEVER ACTUATED |
| END CLIP MATERIAL | BRASS OR STEEL |
| END CLIP QUANTITY | 1 |

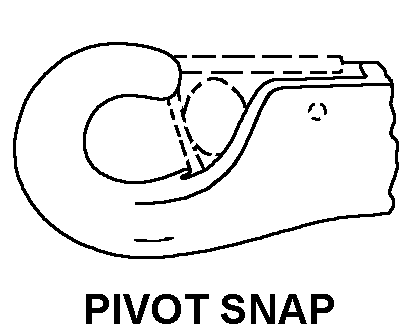

| HOOK STYLE DESIGNATOR | C4 PIVOT SNAP |
| HOOK CONNECTION TYPE | SWIVELING |
| HOOK MATERIAL | STEEL |
| HOOK QUANTITY | 1 |
| FASTENED HOOK FEATURE | NOT INCLUDED |
| HOOK FASTENING METHOD | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10190635-3 |
Restrictions/Controls & Freight Information | NSN 5340-00-494-8240
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 179580 | STRAPS LEATHER IMITATION LEATHER |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-494-8240
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
