NSN 5340-00-515-0792 AG0352, AG0352L, SCDL26213
Product Details | HAND CRANK
5340-00-515-0792 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.20229900045Miscellaneous Engine Accessories, Nonaircraft53400020Hardware, Commercial
Part Alternates: AG0352, AG0352L, SCDL26213, SMB202426, SM-B-202426, SMB202427, SM-B-202427, SMB202428, SM-B-202428, SMB202429, SM-B-202429, SMB202430, SM-B-202430, SMB202431, SM-B-202431, SMB202432, SM-B-202432, US83346, D213595, RLD6213, RLD6213G, RLD6213REVJ, GC7, 5340-00-515-0792, 00-515-0792, 5340005150792, 005150792
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-515-0792 | 17533 ( CRANK, HAND ) |
Drawings & Photos | NSN 5340-00-515-0792
Cross Reference | NSN 5340-00-515-0792
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AG0352 | 3E191 | RAULAND-BORG CORPORATION |
| AG0352L | 36004 | LEWYT CORP |
| D213595 | 72380 | CROSLEY CORP THE |
| GC7 | 53380 | HUFFY CORP |
| GC7 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| RLD6213 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| RLD6213G | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| RLD6213REVJ | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| SCDL26213 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SM-B-202426 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SM-B-202427 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SM-B-202428 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SM-B-202429 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SM-B-202430 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SM-B-202431 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SM-B-202432 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| US83346 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
| US83346 | 79201 | WARWICK ELECTRONICS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-515-0792
Related Products | NSN 5340-00-515-0792
Technical Data | NSN 5340-00-515-0792
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL ARM STEEL BUSHING STEEL DRIVE END WOOD HANDLE |
| SURFACE TREATMENT AND LOCATION | ENAMEL ARM ENAMEL HANDLE |
| COLOR AND LOCATION | OLIVE DRAB ARM OLIVE DRAB HANDLE |
| ARM STYLE | 5 STRAIGHT |
| CRANK THROW LENGTH | 7.000 INCHES NOMINAL |
| DRIVE END STYLE | 105 EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| LENGTH FROM END TO ARM CENTER | 1.719 INCHES NOMINAL |

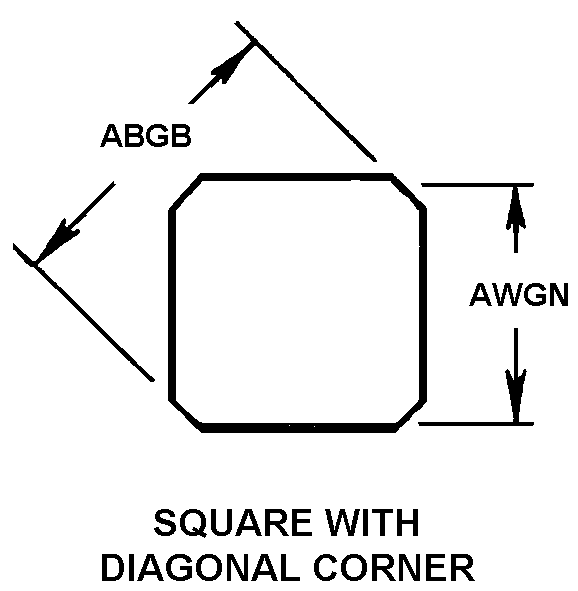

| DRIVE FACILITY STYLE | 166 SQUARE WITH DIAGONAL CORNER |
| DRIVE WIDTH | 0.375 INCHES MINIMUM AND 0.378 INCHES MAXIMUM |
| MOUNTING FACILITY | SPRING LOADED BALL |
| HANDLE MOUNTING METHOD | INTEGRAL |
| HANDLE STYLE | 64 ROUND |
| HANDLE LENGTH | 3.000 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | INCLUDED |
| RATCHET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-00-515-0792
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-515-0792
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
