NSN 5340-00-520-2767 12B1077812, 12B10778-12, 00-520-2767
Product Details | BUTT HINGE LEAF
5340-00-520-2767 An item consisting of one leaf only of a HINGE, BUTT, with or without a hinge pin.
Part Alternates: 12B1077812, 12B10778-12, 5340-00-520-2767, 00-520-2767, 5340005202767, 005202767
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-520-2767 | 07655 ( LEAF, BUTT HINGE ) |
Drawings & Photos | NSN 5340-00-520-2767
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-520-2767
Related Products | NSN 5340-00-520-2767
Technical Data | NSN 5340-00-520-2767
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-250/4, ALLOY 2024, T851 OVERALL |

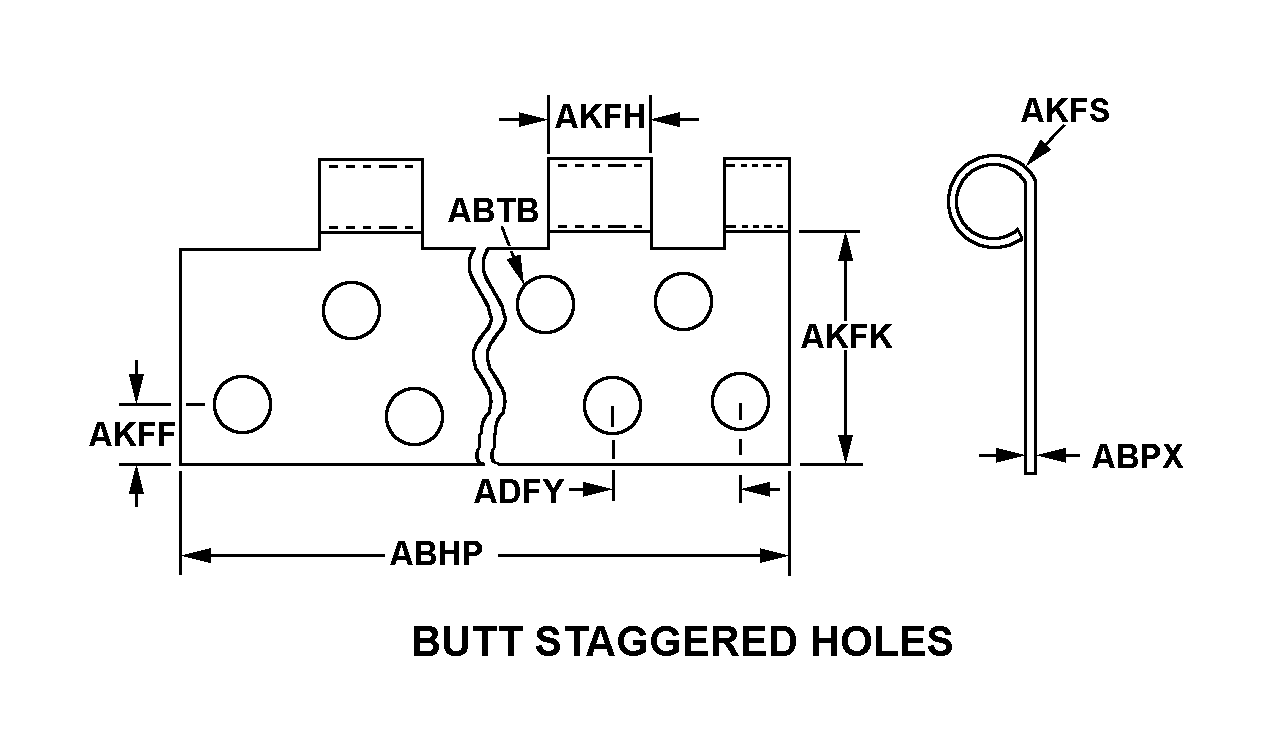

| STYLE DESIGNATOR | 50 BUTT STAGGERED HOLES |
| OVERALL LENGTH | 10.875 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.070 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.097 INCHES MINIMUM AND 0.102 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.920 INCHES NOMINAL |
| LEAF OUTER EDGE TO HOLE CENTER VERTICAL DISTANCE | 0.312 INCHES NOMINAL |
| KNUCKLE LENGTH | 0.491 INCHES MINIMUM AND 0.495 INCHES MAXIMUM |
| PIN CENTER TO BODY EDGE DISTANCE | 1.840 INCHES NOMINAL |
| KNUCKLE INSIDE DIAMETER | 0.188 INCHES MINIMUM AND 0.194 INCHES MAXIMUM |
| REVERSIBLE FEATURE | NOT INCLUDED |
| HINGE PIN | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 10 |
| MOUNTING HOLE QUANTITY | 23 |
| PERFORMANCE TYPE | NOT RATED |
| SPECIAL FEATURES | OPPOSITE OF P/N 12B10778-11 |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 12B10778-12 |
