Product Details | NUT AND BOLT RETAINER
5340-00-596-5567 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Part Alternates: 681002, 6810-02, 5340-00-596-5567, 00-596-5567, 5340005965567, 005965567
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-596-5567 | 16010 ( RETAINER, NUT AND BOLT ) |
Drawings & Photos | NSN 5340-00-596-5567
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-596-5567
Related Products | NSN 5340-00-596-5567
5340-00-596-5568, 5340-00-596-5569, 5340-00-596-5570, 5340-00-596-5571, 5340-00-596-5572
Technical Data | NSN 5340-00-596-5567
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-636-CANCELED |
| SURFACE TREATMENT | CADMIUM |

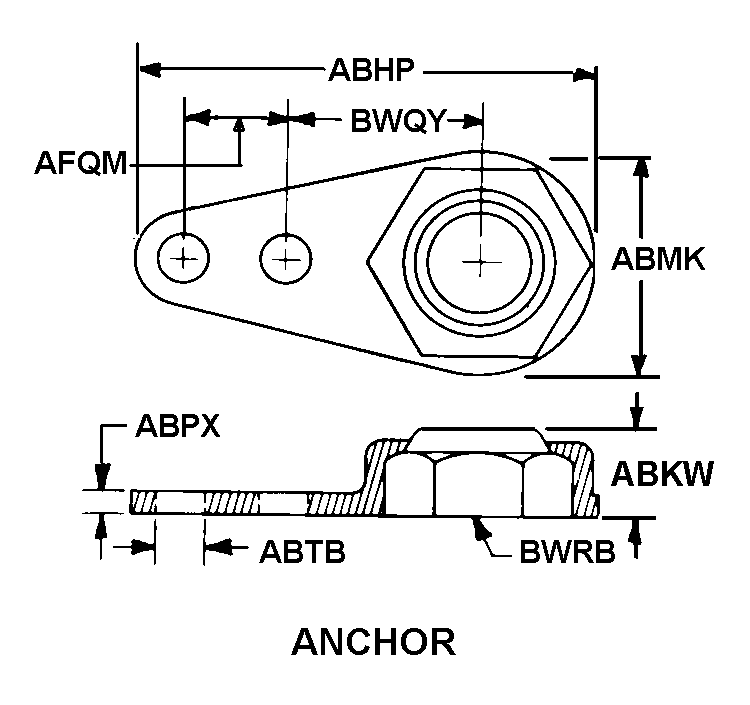

| STYLE DESIGNATOR | B3 ANCHOR |
| OVERALL LENGTH | 1.063 INCHES MINIMUM AND 1.093 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.156 INCHES MINIMUM AND 0.186 INCHES MAXIMUM |
| OVERALL WIDTH | 0.547 INCHES MINIMUM AND 0.587 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.200 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.083 INCHES MINIMUM AND 0.113 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 0.297 INCHES MINIMUM AND 0.327 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN CUP AND MOUNTING HOLE | 0.328 INCHES MINIMUM AND 0.358 INCHES MAXIMUM |
| WIDTH BETWEEN CUP FLATS | 0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| MANUFACTURERS CODE | 80539 |
| DESIGN CONTROL REFERENCE | 6810-02 |
