Product Details | ROD END CONNECTOR
5340-00-702-9836 An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION.
Part Alternates: 4F44205101A, 4F44205-101A, 4F54205101A, 4F54205-101A, 5340-00-702-9836, 00-702-9836, 5340007029836, 007029836
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 FEB 1968 | 00-702-9836 | 03439 ( CONNECTOR, ROD END ) |

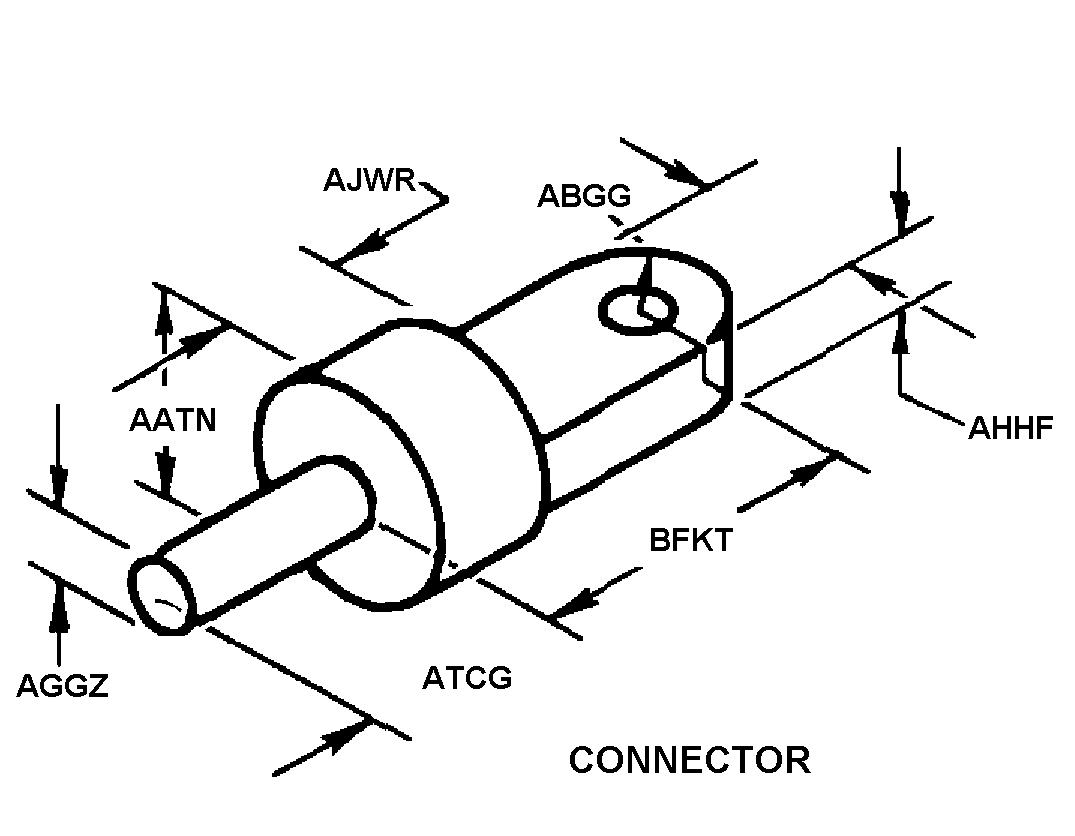

Drawings & Photos | NSN 5340-00-702-9836
Demand History | NSN 5340-00-702-9836
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4F44205-101A | 2019-10-14 | 128 | DIBBS |
| 4F54205-101A | 2019-10-14 | 128 | DIBBS |
| 5340-00-702-9836 | 2018-11-15 | 85 | DIBBS |
| 5340-00-702-9836 | 2018-10-29 | 500 | DIBBS |
| 5340-00-702-9836 | 2018-09-13 | 116 | DIBBS |
| 5340-00-702-9836 | 2018-07-02 | 116 | DIBBS |
| 5340-00-702-9836 | 2018-06-24 | 116 | DIBBS |
| 5340-00-702-9836 | 2018-06-06 | 1 | DIBBS-RFPs |
| 5340-00-702-9836 | 2018-01-01 | 85 | DIBBS |
| 5340-00-702-9836 | 2017-02-06 | 40 | DIBBS |
| 5340-00-702-9836 | 2013-04-17 | 82 | DIBBS |
| 5340-00-702-9836 | 2011-12-05 | 51 | DIBBS |
| 5340-00-702-9836 | 2011-11-14 | 0 | DIBBS |
| 5340-00-702-9836 | 2009-01-16 | 69 | DIBBS |
| 5340-00-702-9836 | 2008-07-15 | 92 | DIBBS |
| 5340-00-702-9836 | 2008-06-30 | 92 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-702-9836
Related Products | NSN 5340-00-702-9836
5340-00-703-0078, 5340-00-703-0079, 5340-00-703-0112, 5340-00-703-0256, 5340-00-703-0561
Technical Data | NSN 5340-00-702-9836
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.190 INCHES ROD CONNECTION |
| THREAD CLASS | 3A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.300 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 65 CONNECTOR |
| RADIUS | 0.188 INCHES NOMINAL |
| TONGUE WIDTH | 0.375 INCHES NOMINAL |
| TONGUE THICKNESS | 0.145 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.025 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |
| SHANK OVERALL LENGTH | 0.300 INCHES NOMINAL |
| BODY OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| DISTANCE FROM END TO HOLE CENTER | 0.235 INCHES NOMINAL |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 4F54205-101A |
