Product Details | HANDWHEEL
5340-00-717-5074 An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL.
Part Alternates: BL2441, 5340-00-717-5074, 00-717-5074, 5340007175074, 007175074
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-717-5074 | 13379 ( HANDWHEEL ) |

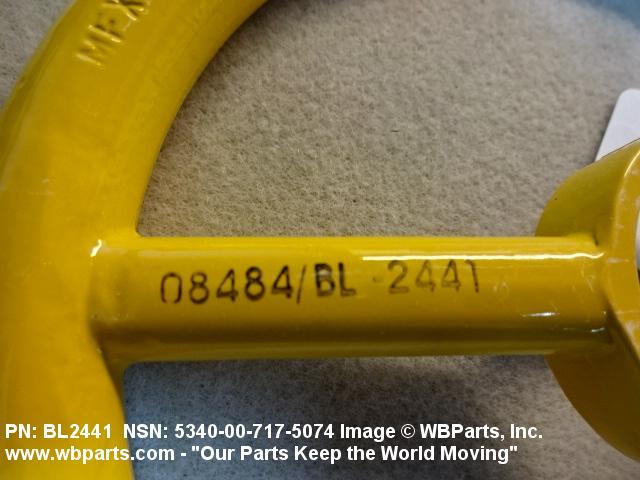

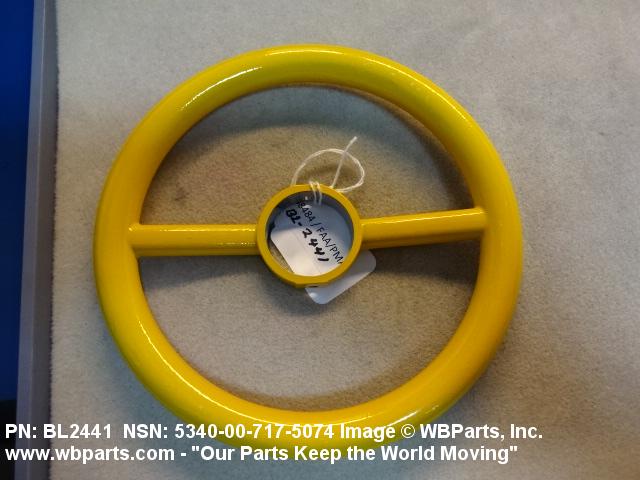

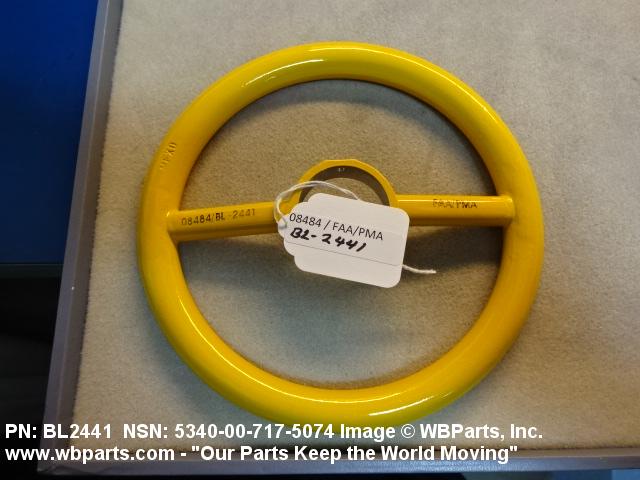

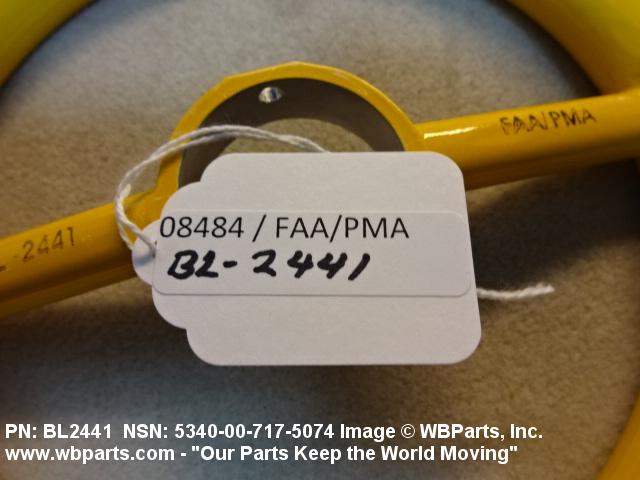

Drawings & Photos | NSN 5340-00-717-5074
Demand History | NSN 5340-00-717-5074
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-717-5074 | 2024-05-15 | 30 | US |
| BL2441 | 2024-05-13 | 30 | DIBBS |
| BL2441 | 2024-05-02 | 30 | DIBBS |
| BL2441 | 2023-11-12 | 10 | DIBBS |
| BL2441 | 2023-09-14 | 2 | DIBBS |
| BL2441 | 2023-06-14 | 7 | DIBBS |
| BL2441 | 2023-05-11 | 2 | DIBBS |
| BL2441 | 2022-11-05 | 5 | DIBBS |
| BL2441 | 2022-10-16 | 1 | DIBBS |
| BL2441 | 2022-10-06 | 4 | DIBBS |
| BL2441 | 2022-05-26 | 3 | DIBBS |
| BL2441 | 2022-05-19 | 1 | DIBBS |
| BL2441 | 2022-05-11 | 3 | DIBBS |
| BL2441 | 2022-04-14 | 4 | DIBBS |
| BL2441 | 2022-04-03 | 4 | DIBBS |
| BL2441 | 2022-03-20 | 1 | DIBBS |
| BL2441 | 2021-12-13 | 2 | DIBBS |
| BL2441 | 2021-12-02 | 2 | DIBBS |
| BL2441 | 2021-07-18 | 1 | DIBBS |
| 5340-00-717-5074 | 2020-04-07 | 1 | India |
| BL2441 | 2019-09-20 | 1 | India |
| BL2441 | 2019-06-27 | 6 | DIBBS |
| 5340-00-717-5074 | 2019-05-27 | 1 | India |
| BL2441 | 2019-03-21 | 3 | DIBBS |
| 5340-00-717-5074 | 2018-09-13 | 3 | DIBBS |
| 5340-00-717-5074 | 2018-08-21 | 1 | India |
| 5340-00-717-5074 | 2018-04-15 | 4 | DIBBS |
| 5340-00-717-5074 | 2018-01-01 | 3 | DIBBS |
| 5340-00-717-5074 | 2017-10-04 | 1 | Malaysia |
| 5340-00-717-5074 | 2017-08-16 | 1 | Malaysia |
| 5340-00-717-5074 | 2017-08-16 | 1 | Malaysia |
| 5340-00-717-5074 | 2017-05-04 | 4 | DIBBS |
| 5340-00-717-5074 | 2017-02-01 | 3 | DIBBS |
| 5340-00-717-5074 | 2016-05-02 | 3 | DIBBS |
| 5340-00-717-5074 | 2016-02-17 | 5 | Malaysia |
| 5340-00-717-5074 | 2015-07-19 | 3 | DIBBS |
| 5340-00-717-5074 | 2013-12-22 | 3 | DIBBS |
| 5340-00-717-5074 | 2013-03-15 | 3 | DIBBS |
| 5340-00-717-5074 | 2012-09-06 | 2 | DIBBS |
| 5340-00-717-5074 | 2010-12-15 | 13 | DIBBS |
| 5340-00-717-5074 | 2010-08-03 | 18 | DIBBS |
| 5340-00-717-5074 | 2010-04-10 | 5 | DIBBS |
| 5340-00-717-5074 | 2009-12-14 | 7 | DIBBS |
| 5340-00-717-5074 | 2009-08-07 | 7 | DIBBS |
| 5340-00-717-5074 | 2009-07-31 | 5 | DIBBS |
| 5340-00-717-5074 | 2009-05-21 | 6 | DIBBS |
| 5340-00-717-5074 | 2009-05-01 | 2 | DIBBS |
| 5340-00-717-5074 | 2008-11-11 | 4 | DIBBS |
| 5340-00-717-5074 | 2008-09-09 | 7 | DIBBS |
Cross Reference | NSN 5340-00-717-5074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BL2441 | 08484 | BREEZE-EASTERN CORPORATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-717-5074
Related Products | NSN 5340-00-717-5074
5340-00-717-5650, 5340-00-717-5786, 5340-00-717-6164, 5340-00-717-6202, 5340-00-717-6636
Technical Data | NSN 5340-00-717-5074
| Characteristic | Specifications |
|---|---|
| III FSC APPLICATION DATA | WINCH,AIRCRAFT MOUNTED |
| MANUFACTURERS CODE | 08484 |
| DESIGN CONTROL REFERENCE | BL2441 |
Restrictions/Controls & Freight Information | NSN 5340-00-717-5074
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197583 | WHEELS NOT SUITBLE FOR TIRES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-717-5074
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
