NSN 5340-00-753-3456 MS252812, MS25281-2, MS252812P
Product Details | LOOP CLAMP
5340-00-753-3456 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS252812, MS25281-2, MS252812P, MS25281-2P, MS25281R2, MS25281-R2, MMCCL141N2, NMCCL141N2, 23C2502, 23C250-2, 5340-00-753-3456, 00-753-3456, 5340007533456, 007533456
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-753-3456 | 17532 ( CLAMP, LOOP ) |

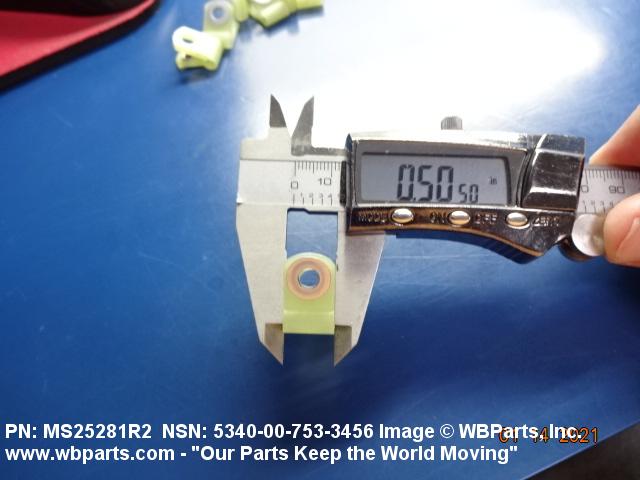

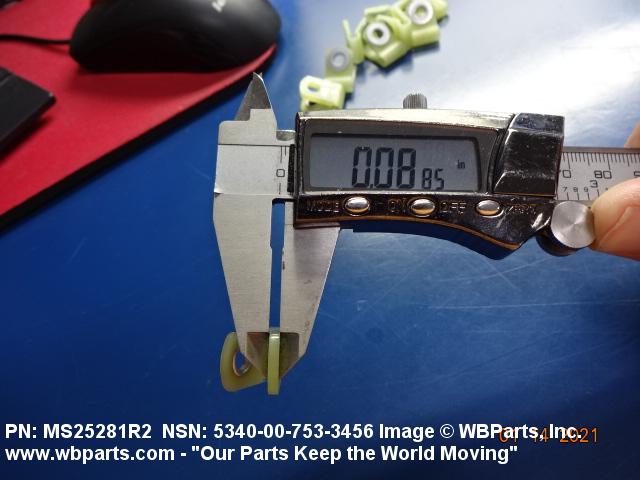

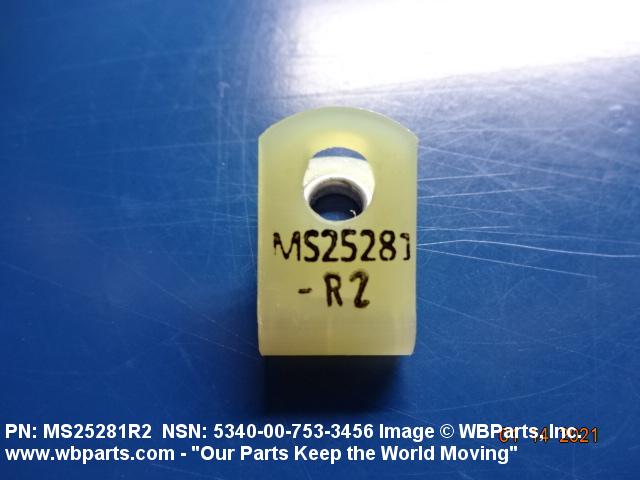

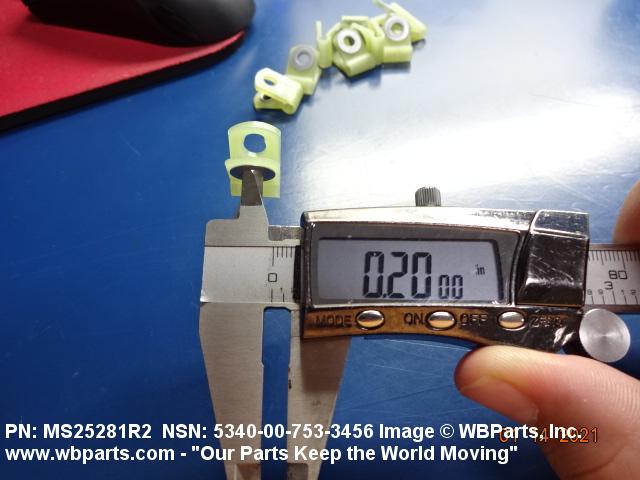

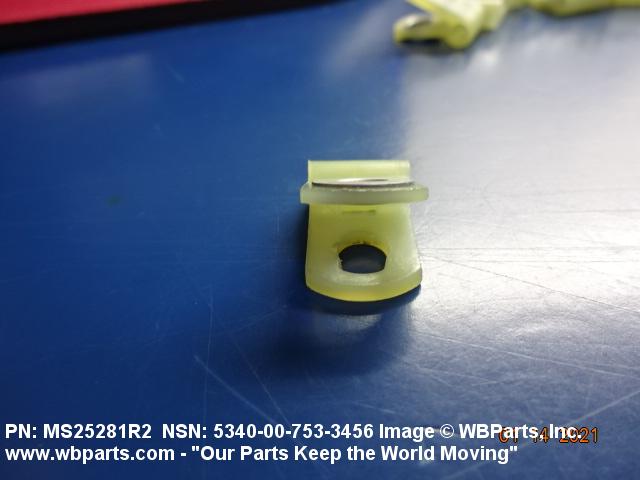

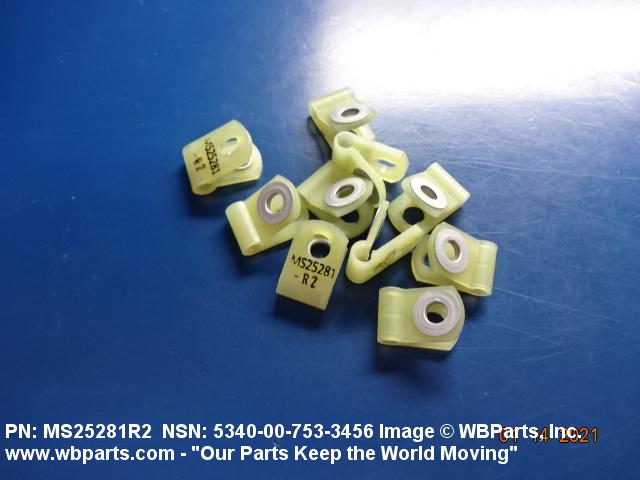

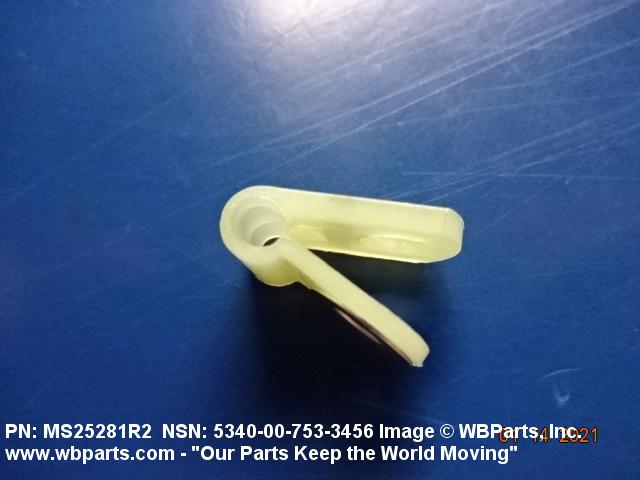

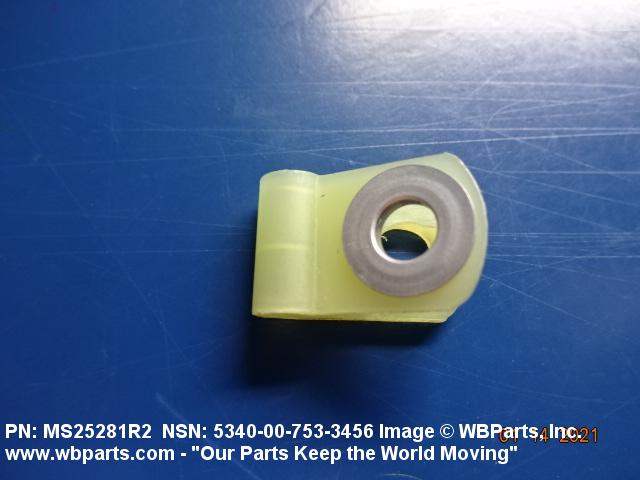

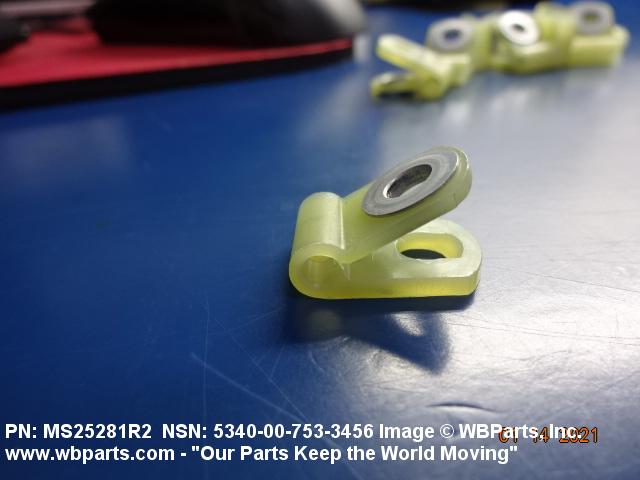

Drawings & Photos | NSN 5340-00-753-3456
Demand History | NSN 5340-00-753-3456
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-753-3456 | 2008-04-107 | 100 | US |
| MS25281R2 | 2008-03-65 | 3 | US |
| 5340-00-753-3456 | 2008-01-31 | 3513 | DIBBS |
| 5340-00-753-3456 | 2007-08-229 | 100 | US |
Cross Reference | NSN 5340-00-753-3456
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23C250-2 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 9M843-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
| AS25281-R2 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MMCCL141N2 | 03296 | NMC GROUP, INC. |
| MS25281-2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS25281-2P | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS25281-R2 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS25281-R2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS25281R2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NMCCL141N2 | 03296 | NMC GROUP, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-753-3456
Technical Data | NSN 5340-00-753-3456
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYHEXAMETHYLENE AMIDE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D4066 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A2 SINGLE LOOP |
| OVERALL WIDTH | 0.495 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.440 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.690 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 0.125 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.198 INCHES MINIMUM AND 0.213 INCHES MAXIMUM |
| SPECIAL FEATURES | COLOR NATURAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25281R2 |
Restrictions/Controls & Freight Information | NSN 5340-00-753-3456
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
