Product Details | STRAP FASTENER LOOP
5340-00-755-4856 An item of rigid material having an aperture or opening through which the end(s) of a strap(s) or belt(s) is designed to be inserted, folded, and secured to itself by sewing, riveting, or the like. It is used to fasten the end(s) of a strap or belt to itself, to another belt or strap, or to an object or structure.
Part Alternates: 10886192, 5340-00-755-4856, 00-755-4856, 5340007554856, 007554856
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-755-4856 | 20539 ( LOOP, STRAP FASTENER ) |

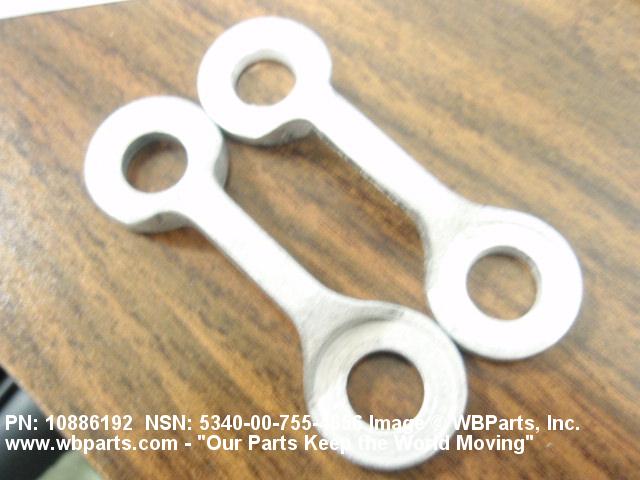

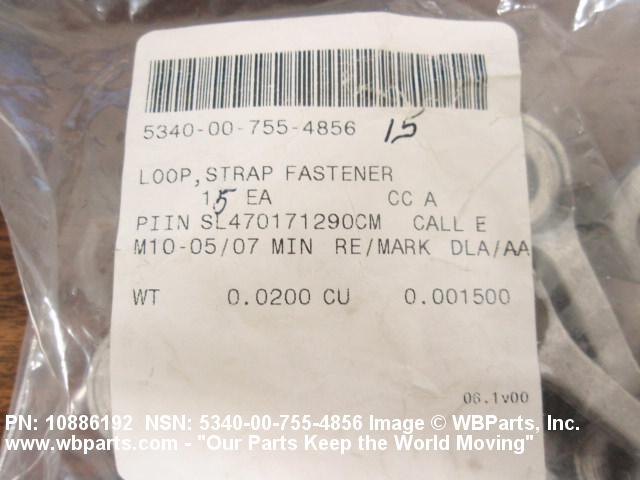

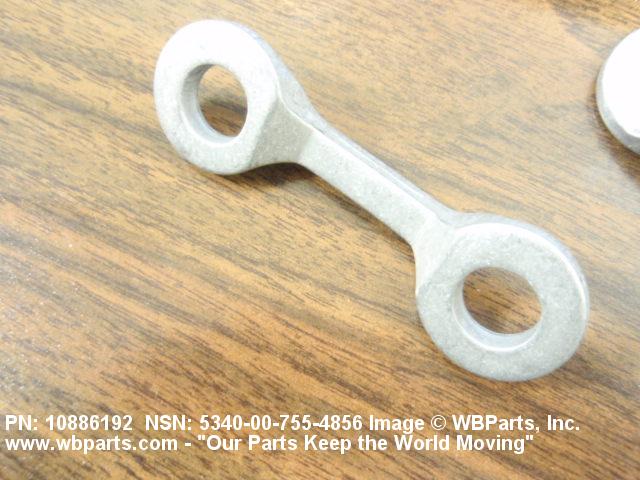

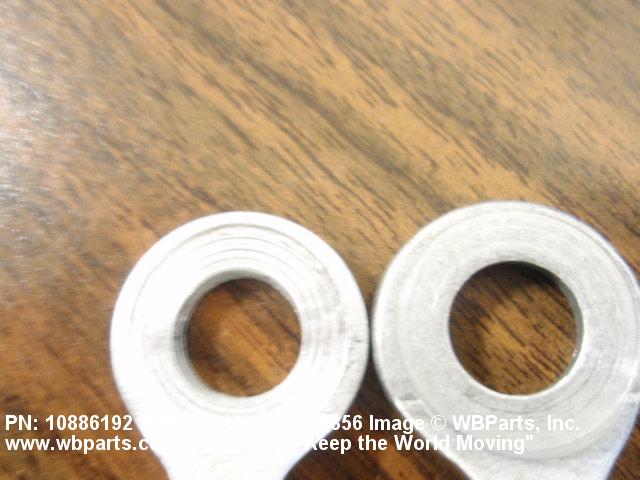

Drawings & Photos | NSN 5340-00-755-4856
Demand History | NSN 5340-00-755-4856
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-755-4856 | 2023-09-24 | 260 | DIBBS |
| 5340-00-755-4856 | 2021-08-05 | 64 | US |
| 5340-00-755-4856 | 2019-08-11 | 143 | DIBBS |
| 5340-00-755-4856 | 2019-01-15 | 230 | United States |
| 10886192 | 2018-07-13 | 234 | United States |
| 5340-00-755-4856 | 2017-03-06 | 124 | US |
| 10886192 | 2016-10-10 | 20 | United States |
| 5340-00-755-4856 | 2010-08-24 | 15 | United States |
| 5340-00-755-4856 | 2010-08-16 | 10 | US |
| 5340-00-755-4856 | 2010-01-26 | 200 | US |
| 5340-00-755-4856 | 2009-12-30 | 829 | DIBBS |
| 10886192 | 2009-07-30 | 150 | United States |
| 5340-00-755-4856 | 2009-07-20 | 10 | US |
| 5340-00-755-4856 | 2009-04-16 | 280 | DIBBS |
Cross Reference | NSN 5340-00-755-4856
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10886192 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5340-00-755-4856
5340-00-755-4888, 5340-00-755-4889, 5340-00-755-4910, 5340-00-755-4999, 5340-00-755-6201
Technical Data | NSN 5340-00-755-4856
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-200/4, ALLOY 5083, H112 |
| PAINTED FEATURE | NOT INCLUDED |

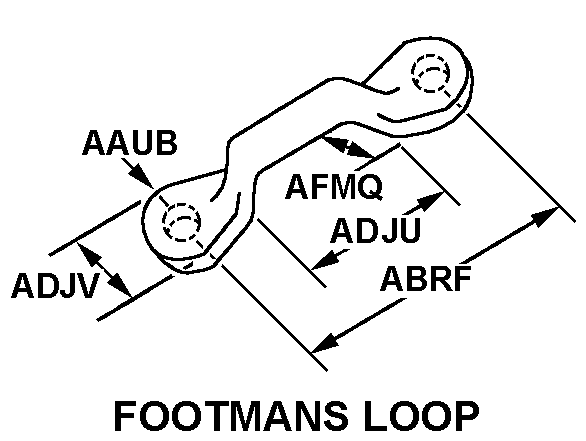

| STYLE DESIGNATOR | D6 FOOTMANS LOOP |
| HOLE DIAMETER | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 2.250 INCHES NOMINAL |
| INSIDE LENGTH | 0.750 INCHES NOMINAL |
| OUTSIDE WIDTH | 1.000 INCHES NOMINAL |
| INSIDE HEIGHT | 0.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10886192 |
Restrictions/Controls & Freight Information | NSN 5340-00-755-4856
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
