NSN 5340-00-772-4396 7113281, 711328-1, 00-772-4396
Product Details | GROOVED CLAMP COUPLING FERRULE
5340-00-772-4396 A flanged, flared or beaded hollow cylindrical metallic item designed to be affixed to the end of a tube, pipe duct or the like. It is used to mate with the groove of a COUPLING, CLAMP, GROOVED to create a fluid tight joint and/or connection. See also FERRULE, BRAZING, TUBE FITTING.
Part Alternates: 7113281, 711328-1, 5340-00-772-4396, 00-772-4396, 5340007724396, 007724396
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-772-4396 | 20317 ( FERRULE, GROOVED CLAMP COUPLING ) |
Drawings & Photos | NSN 5340-00-772-4396
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-772-4396
Technical Data | NSN 5340-00-772-4396
| Characteristic | Specifications |
|---|---|

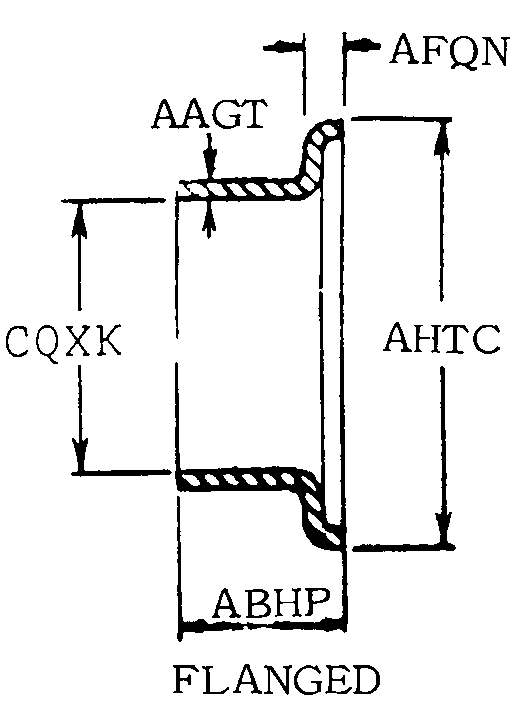

| CROSS-SECTIONAL SHAPE STYLE | 22 FLANGED |
| WALL THICKNESS | 0.170 INCHES NOMINAL |
| OVERALL LENGTH | 3.620 INCHES NOMINAL |
| FLANGE LENGTH | 0.620 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 9.870 INCHES NOMINAL |
| FERRULE INSIDE DIAMETER | 8.000 INCHES MINIMUM AND 8.015 INCHES MAXIMUM |
| MATERIAL AND LOCATION | STEEL OVERALL |
| SURFACE TREATMENT AND LOCATION | CADMIUM, QQ-P-416, TYPE 1, CLASS 2 OVERALL |
| MANUFACTURERS CODE | 70628 |
| DESIGN CONTROL REFERENCE | 711328-1 |
Restrictions/Controls & Freight Information | NSN 5340-00-772-4396
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
