NSN 5340-00-781-8259 911, 00-781-8259, 007818259
Product Details | HINGED HASP
5340-00-781-8259 An item consisting of a hinged strap with a slot in one end through which a loop or staple may pass. When a loop or staple is passed through the slot in the strap, a means of securing the two parts together is afforded. It may include a staple.
Part Alternates: 911, 5340-00-781-8259, 00-781-8259, 5340007818259, 007818259
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-781-8259 | 06611 ( HASP, HINGED ) |

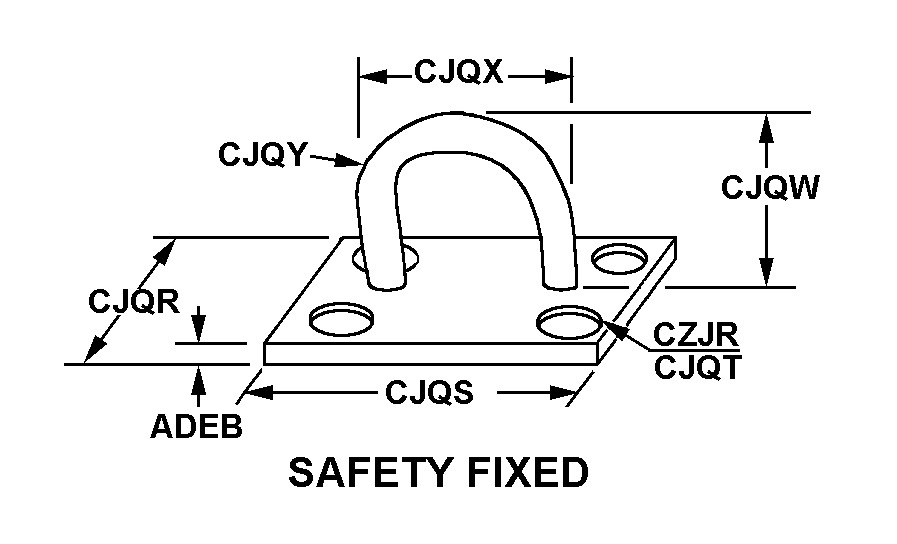

Drawings & Photos | NSN 5340-00-781-8259
Cross Reference | NSN 5340-00-781-8259
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 911 | 57068 | STANLEY WORKS THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-781-8259
Technical Data | NSN 5340-00-781-8259
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| MATERIAL THICKNESS | 0.072 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | ANY ACCEPTABLE |
| SLOTTED LEAF LENGTH | 2.500 INCHES NOMINAL |
| LEAF WIDTH | 1.000 INCHES NOMINAL |
| FIXED LEAF LENGTH | 1.125 INCHES NOMINAL |
| STAPLE STYLE | 4 SAFETY FIXED STAPLE |
| HINGE MOUNTING TYPE | FULL SURFACE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 3 |
| MOUNTING HOLE QUANTITY | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5340-00-781-8259
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
