NSN 5340-00-825-1112 C4P103461, C4P10346-1, 00-825-1112
Product Details | FILLER OPENING CAP
5340-00-825-1112 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: C4P103461, C4P10346-1, 5340-00-825-1112, 00-825-1112, 5340008251112, 008251112
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-825-1112 | 30128 ( CAP, FILLER OPENING ) |
Drawings & Photos | NSN 5340-00-825-1112
Cross Reference | NSN 5340-00-825-1112
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C4P10346-1 | 71867 | BOMBARDIER AEROSPACE AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-825-1112
Technical Data | NSN 5340-00-825-1112
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-267 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

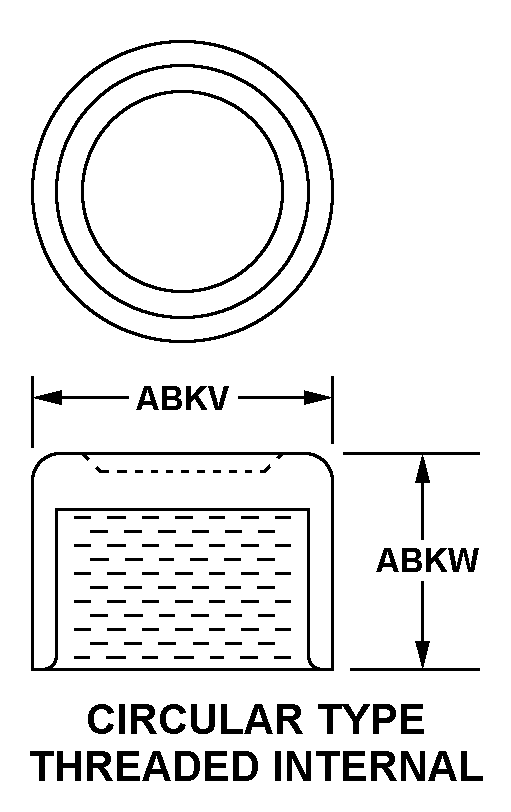

| STYLE DESIGNATOR | C6 CIRCULAR TYPE THREADED INTERNAL |
| OUTSIDE DIAMETER | 2.800 INCHES NOMINAL |
| OVERALL HEIGHT | 1.460 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | NONPRESSURIZED |
| GRIPPING ACCOMMODATION TYPE | KNURLED |
| RETAINING DEVICE TYPE | CHAIN |
| RETAINING DEVICE LENGTH | 4.000 INCHES NOMINAL |
| FEATURES PROVIDED | SUBMERSIBLE |
| MANUFACTURERS CODE | 71867 |
| DESIGN CONTROL REFERENCE | C4P10346-1 |
Restrictions/Controls & Freight Information | NSN 5340-00-825-1112
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116430 | CAPS,ENGINE RADIATOR |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
