Product Details | LOOP CLAMP
5340-00-834-5942 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: TA1716D8, TA1-716D8, TA1D716D08, TA1D716D8, 5340-00-834-5942, 00-834-5942, 5340008345942, 008345942
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-834-5942 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-00-834-5942
Demand History | NSN 5340-00-834-5942
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-834-5942
Related Products | NSN 5340-00-834-5942
5340-00-834-6869, 5340-00-834-6906, 5340-00-834-7048, 5340-00-834-7158, 5340-00-834-7413
Technical Data | NSN 5340-00-834-5942
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BAND RUBBER SYNTHETIC CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-362,T4 FED SPEC SINGLE MATERIAL RESPONSE BAND |

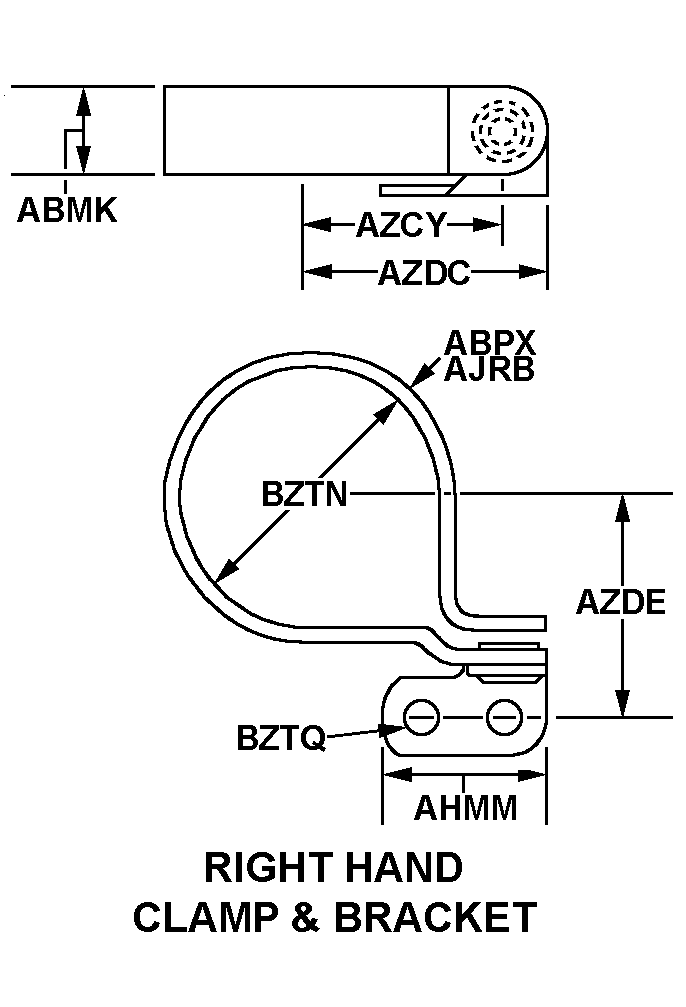

| STYLE DESIGNATOR | A41 RIGHT HAND CLAMP AND BRACKET |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.032 INCHES NOMINAL |
| LUG WIDTH | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.402 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.652 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND LUG HOLE | 0.967 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 0.500 INCHES NOMINAL |
| LUG HOLE DIAMETER | 0.173 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, THREADED |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| INTEGRAL NUT TYPE AND QUANTITY | 1 SELF-LOCKING EQUAL LENGTH TONGUES |
| CUSHIONING ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 84971 |
| DESIGN CONTROL REFERENCE | TA1D716D8 |
