NSN 5340-00-880-9264 224, 470, 00-880-9264
Product Details | RECESS HANDLE
5340-00-880-9264 A recessed item designed to be attached to another item such as a door, drawer, or window to provide access for the finger tips for opening, lifting, pulling, and the like. Includes sash lifts of the recessed type.
Part Alternates: 224, 470, 5340-00-880-9264, 00-880-9264, 5340008809264, 008809264
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-880-9264 | 20352 ( HANDLE, RECESS ) |
Drawings & Photos | NSN 5340-00-880-9264
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-880-9264
Technical Data | NSN 5340-00-880-9264
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | COPPER ALLOY OVERALL |

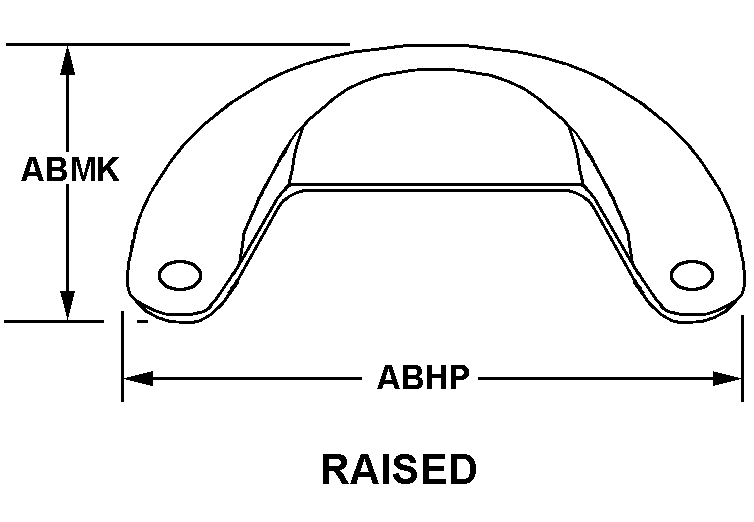

| STYLE DESIGNATOR | J10 RAISED |
| OVERALL LENGTH | 3.687 INCHES NOMINAL |
| OVERALL WIDTH | 1.437 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.750 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING FACILITY DIAMETER | 0.171 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.375 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-880-9264
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
