NSN 5340-00-901-4790 BACC10BH7RW, BACC10GE7, S369WH7

Product Details | LOOP CLAMP

5340-00-901-4790 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: BACC10BH7RW, BACC10GE7, S369WH7, TA12C32WS7, TA4C81WS7, JM44LC13WS7R, 400WCS7, 509S7, 5340-00-901-4790, 00-901-4790, 5340009014790, 009014790

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-901-4790	17532 ( CLAMP, LOOP )

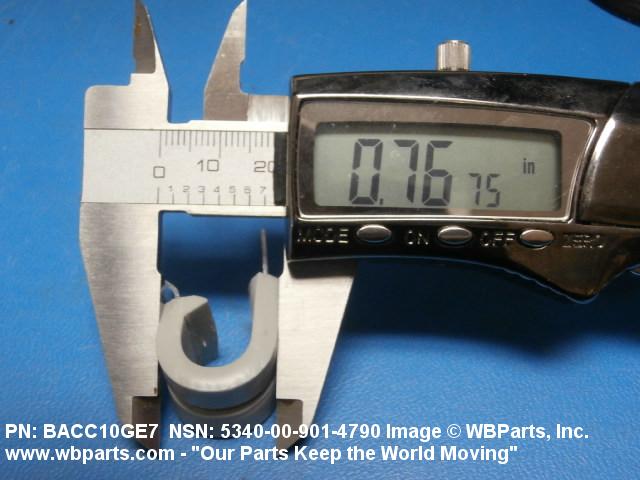

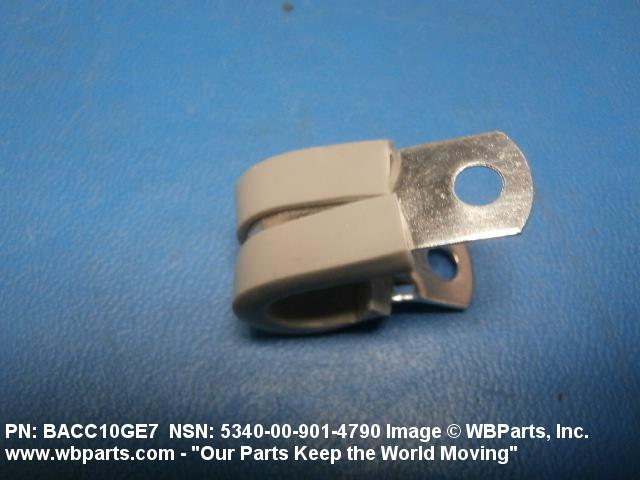

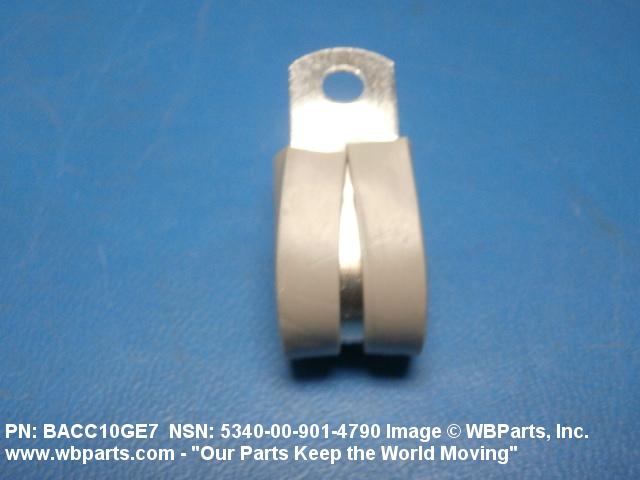

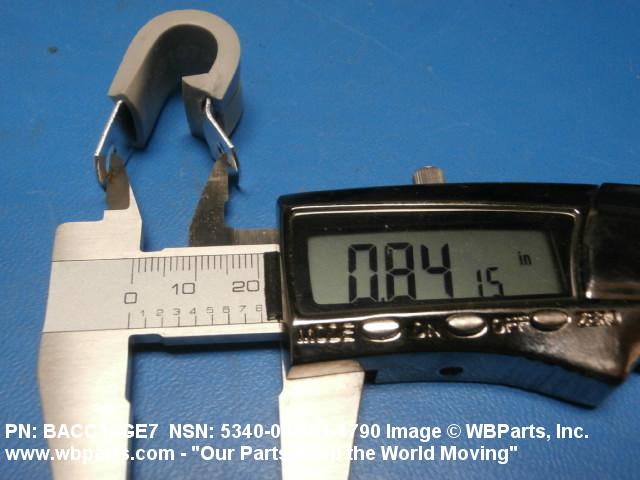

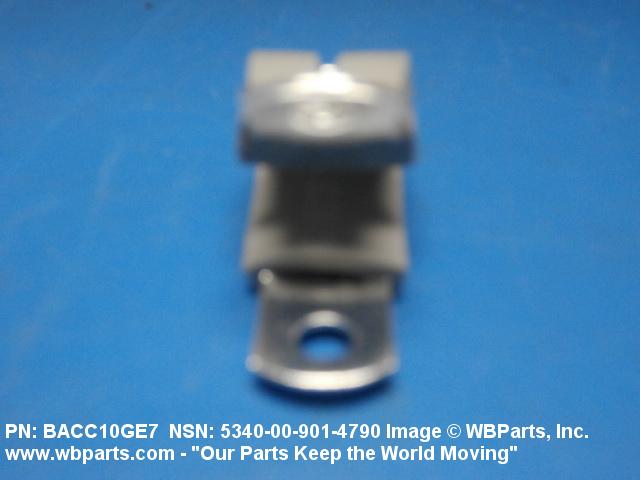

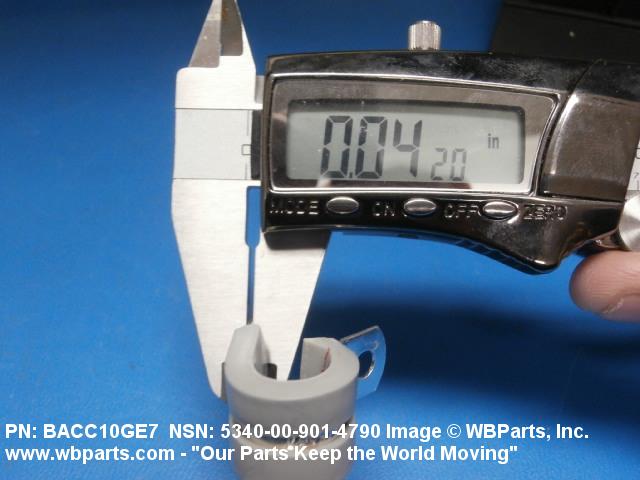

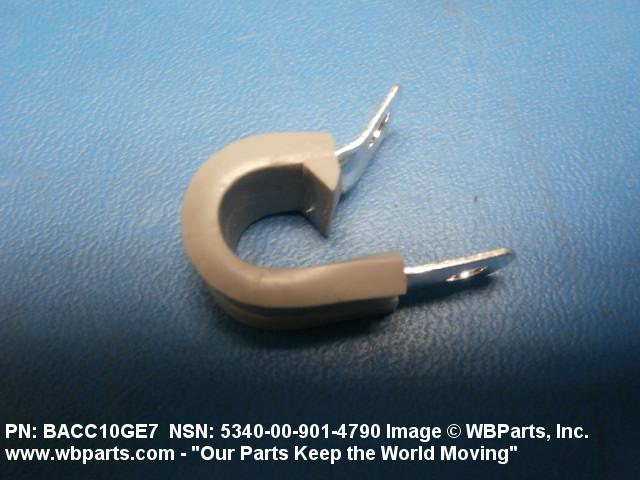

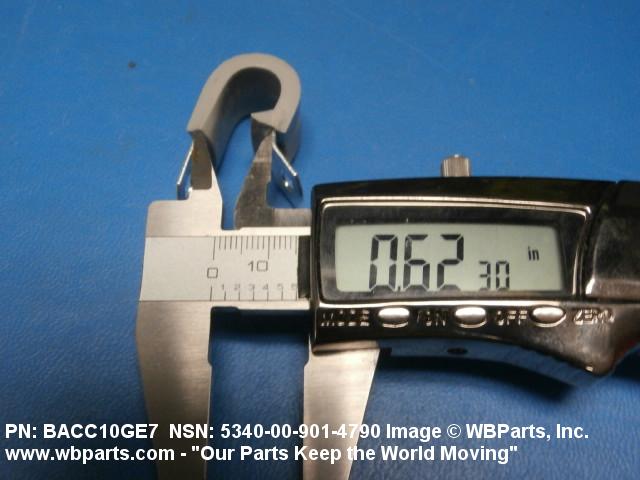

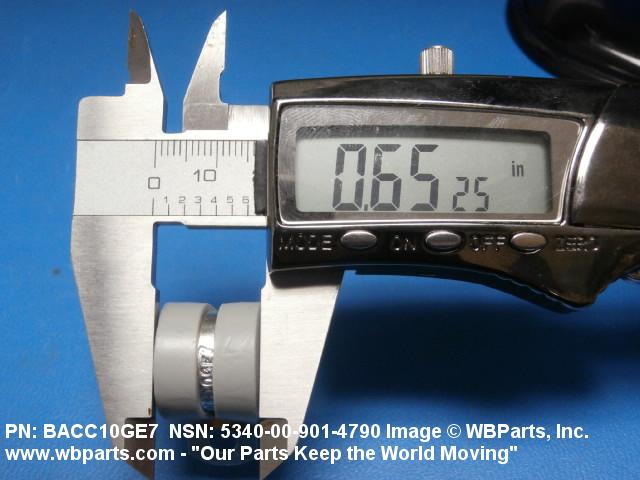

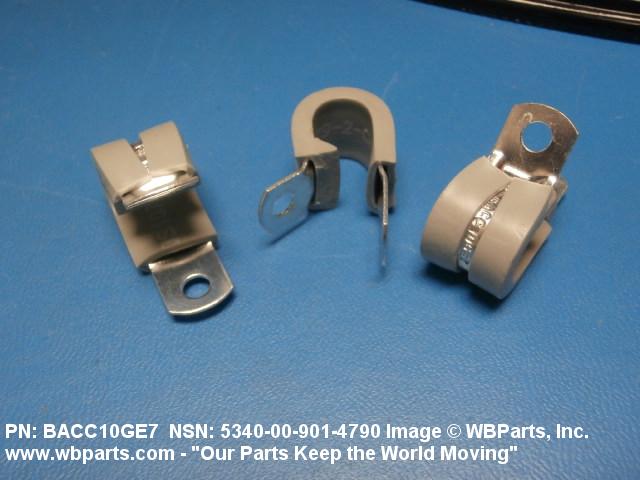

Drawings & Photos | NSN 5340-00-901-4790

Part Number	Request Date	QTY	Origin
400WCS7	2021-10-280	1116	DIBBS
509S7	2021-10-280	1116	DIBBS
BACC10BH7RW	2021-10-280	1116	DIBBS
JM44LC13WS7R	2021-10-280	1116	DIBBS
TA12C32WS7	2021-10-280	1116	DIBBS
TA4C81WS7	2021-10-280	1116	DIBBS
400WCS7	2021-08-238	610	DIBBS
509S7	2021-08-238	610	DIBBS
BACC10BH7RW	2021-08-238	610	DIBBS
JM44LC13WS7R	2021-08-238	610	DIBBS
TA12C32WS7	2021-08-238	610	DIBBS
TA4C81WS7	2021-08-238	610	DIBBS
5340-00-901-4790	2021-08-236	120	Malaysia
400WCS7	2021-08-231	215	DIBBS
509S7	2021-08-231	215	DIBBS
BACC10BH7RW	2021-08-231	215	DIBBS
JM44LC13WS7R	2021-08-231	215	DIBBS
TA12C32WS7	2021-08-231	215	DIBBS
TA4C81WS7	2021-08-231	215	DIBBS
400WCS7	2021-07-199	395	DIBBS
509S7	2021-07-199	395	DIBBS
BACC10BH7RW	2021-07-199	395	DIBBS
JM44LC13WS7R	2021-07-199	395	DIBBS
TA12C32WS7	2021-07-199	395	DIBBS
TA4C81WS7	2021-07-199	395	DIBBS
400WCS7	2021-06-159	20	Malaysia
400WCS7	2021-04-116	2342	DIBBS
509S7	2021-04-116	2342	DIBBS
BACC10BH7RW	2021-04-116	2342	DIBBS
JM44LC13WS7R	2021-04-116	2342	DIBBS
TA12C32WS7	2021-04-116	2342	DIBBS
TA4C81WS7	2021-04-116	2342	DIBBS
400WCS7	2021-04-112	310	DIBBS
509S7	2021-04-112	310	DIBBS
BACC10BH7RW	2021-04-112	310	DIBBS
JM44LC13WS7R	2021-04-112	310	DIBBS
TA12C32WS7	2021-04-112	310	DIBBS
TA4C81WS7	2021-04-112	310	DIBBS
400WCS7	2021-02-49	298	DIBBS
509S7	2021-02-49	298	DIBBS
BACC10BH7RW	2021-02-49	298	DIBBS
JM44LC13WS7R	2021-02-49	298	DIBBS
TA12C32WS7	2021-02-49	298	DIBBS
TA4C81WS7	2021-02-49	298	DIBBS
400WCS7	2021-01-24	1734	DIBBS
509S7	2021-01-24	1734	DIBBS
BACC10BH7RW	2021-01-24	1734	DIBBS
JM44LC13WS7R	2021-01-24	1734	DIBBS
TA12C32WS7	2021-01-24	1734	DIBBS
TA4C81WS7	2021-01-24	1734	DIBBS
400WCS7	2020-12-351	1404	DIBBS
509S7	2020-12-351	1404	DIBBS
BACC10BH7RW	2020-12-351	1404	DIBBS
JM44LC13WS7R	2020-12-351	1404	DIBBS
TA12C32WS7	2020-12-351	1404	DIBBS
TA4C81WS7	2020-12-351	1404	DIBBS
5340-00-901-4790	2017-08-243	717	DIBBS
5340-00-901-4790	2016-12-336	4984	DIBBS
5340-00-901-4790	2015-09-260	4	Malaysia
5340-00-901-4790	2009-01-21	3023	DIBBS

Cross Reference | NSN 5340-00-901-4790

Part Number	Cage Code	Manufacturer
400WCS7	83930	TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL
509S7	83930	TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL
BACC10BH7RW	81205	THE BOEING COMPANY DBA BOEING
BACC10GE7	81205	THE BOEING COMPANY DBA BOEING
JM44LC13WS7R	22175	J & M PRODUCTS, INC.
S369WH7	18076	UMPCO, INC.
TA12C32WS7	84971	KIRKHILL-TA CO. DBA TA DIVISION
TA4C81WS7	84971	KIRKHILL-TA CO. DBA TA DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-901-4790

Compare

Related Products | NSN 5340-00-901-4790

5340-00-901-4791, 5340-00-901-4793, 5340-00-901-4803, 5340-00-901-5329, 5340-00-901-5432

Technical Data | NSN 5340-00-901-4790

Characteristic	Specifications
MATERIAL	STEEL COMP 1008 OR STEEL COMP 1009 OR STEEL COMP 1015 OR STEEL COMP 1018 OR STEEL COMP 1020 BAND RUBBER SILICONE CLASS Q CUSHION
MATERIAL DOCUMENT AND CLASSIFICATION	D6-54312-1 FSCM 81205 MFR REF SINGLE MATERIAL RESPONSE CUSHION
SURFACE TREATMENT	CADMIUM BAND
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE BAND
STYLE DESIGNATOR	A5 OFFSET MOUNT

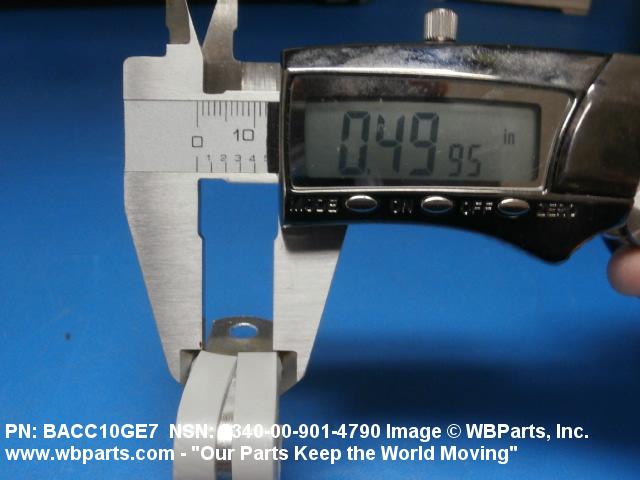

OVERALL WIDTH	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
MATERIAL THICKNESS	0.027 INCHES MINIMUM AND 0.037 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	0.623 INCHES NOMINAL
DISTANCE FROM LOOP CENTER TO TONGUE END	0.841 INCHES NOMINAL
LOOP INSIDE DIAMETER	0.438 INCHES NOMINAL
TONGUE HOLE TYPE	ROUND, UNTHREADED
DIAMETER	0.194 INCHES MINIMUM AND 0.209 INCHES MAXIMUM
CUSHIONING ENVIRONMENTAL PROTECTION	HEAT
SPECIFICATION/STANDARD DATA	81205-BACC10GE MANUFACTURERS SPECIFICATION

Restrictions/Controls & Freight Information | NSN 5340-00-901-4790

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-00-901-4790

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
