Product Details | BUTT HINGE
5340-00-901-9324 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: Q705735, Q70573-5, 802LH2X11116, 802LH2X1-11-16, 5340-00-901-9324, 00-901-9324, 5340009019324, 009019324
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-901-9324 | 22894 ( HINGE, BUTT ) |

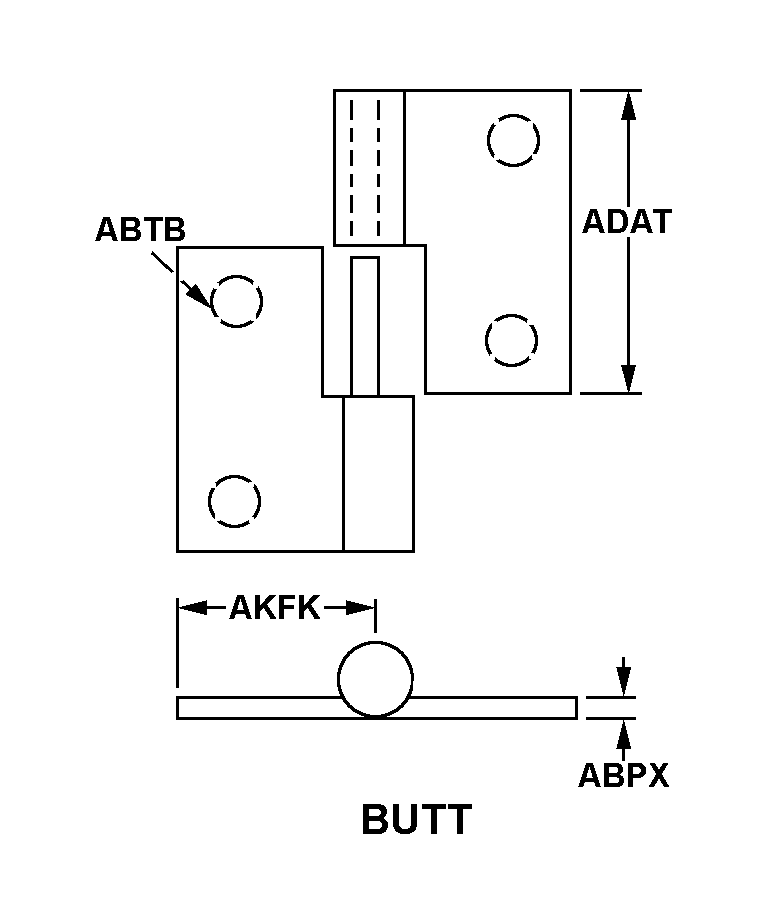

Drawings & Photos | NSN 5340-00-901-9324
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-901-9324
Related Products | NSN 5340-00-901-9324
5340-00-901-9329, 5340-00-901-9647, 5340-00-901-9653, 5340-00-902-0397, 5340-00-902-0425
Technical Data | NSN 5340-00-901-9324
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL PIN AND STEEL, WROUGHT BODY |
| STYLE DESIGNATOR | 21 BUTT |
| MATERIAL THICKNESS | 0.074 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.157 INCHES NOMINAL |
| BODY WIDTH | 2.000 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 0.844 INCHES NOMINAL |
| HINGE MOUNTING TYPE | FULL SURFACE |
| REVERSIBLE FEATURE | INCLUDED |
| PIN REMOVABILITY | NONREMOVABLE |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 2 |
| MOUNTING HOLE QUANTITY | 4 |
| PERFORMANCE TYPE | LIGHT DUTY |
| MANUFACTURERS CODE | 57068 |
| DESIGN CONTROL REFERENCE | 802LH2X1-11-16 |
