NSN 5340-00-925-9672 NS102710064A, NS102710-064-A, 00-925-9672

5340-00-925-9672 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.

Part Alternates: NS102710064A, NS102710-064-A, 5340-00-925-9672, 00-925-9672, 5340009259672, 009259672

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 JAN 1966	00-925-9672	16010 ( RETAINER, NUT AND BOLT )

Part Number	Request Date	QTY	Origin
NS102710-064-A	2022-01-10	4	DIBBS
NS102710-064-A	2021-09-263	4	DIBBS
NS102710-064-A	2019-06-160	16	DIBBS
5340-00-925-9672	2018-09-249	8	DIBBS
5340-00-925-9672	2018-08-241	8	DIBBS
5340-00-925-9672	2018-07-208	8	United States
5340-00-925-9672	2018-04-114	8	DIBBS
5340-00-925-9672	2018-03-60	8	DIBBS
5340-00-925-9672	2010-01-18	3	DIBBS

Part Number	Cage Code	Manufacturer
NS102710-064-A	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5340-00-925-9672

Compare

5340-00-925-9754, 5340-00-925-9755, 5340-00-925-9779, 5340-00-925-9787, 5340-00-925-9792

Characteristic	Specifications
MATERIAL	STEEL, SAE 1050
SURFACE TREATMENT	CADMIUM, QQ-P-416, TYPE 2, CLASS 2

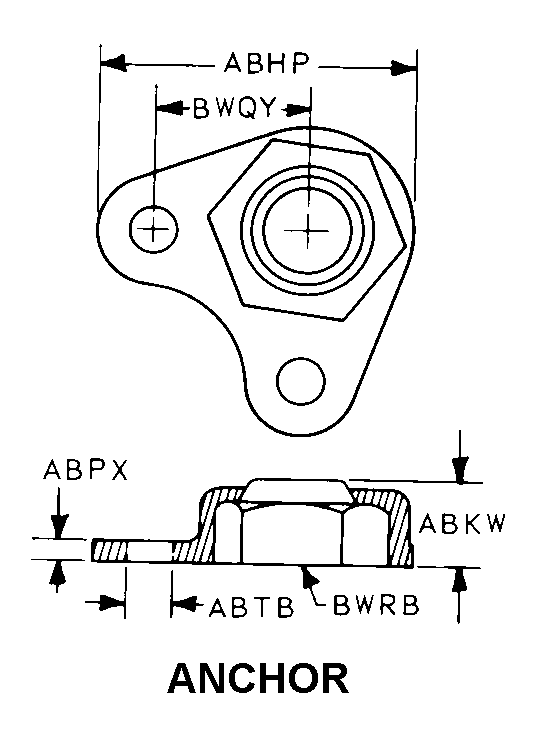

STYLE DESIGNATOR	B2 ANCHOR
OVERALL LENGTH	1.051 INCHES MAXIMUM
OVERALL HEIGHT	0.250 INCHES MAXIMUM
MATERIAL THICKNESS	0.042 INCHES NOMINAL
MOUNTING HOLE DIAMETER	0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN CUP AND MOUNTING HOLE	0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM
WIDTH BETWEEN CUP FLATS	0.375 INCHES NOMINAL
MANUFACTURERS CODE	80539
DESIGN CONTROL REFERENCE	NS102710-064-A

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
