NSN 5340-00-945-8286 A10631000, A1063-1000, DVG3912S10A
Product Details | SWIVEL CASTER
5340-00-945-8286 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: A10631000, A1063-1000, DVG3912S10A , 3912S1027HM1WB5T101000, 39-12S10-27HM1WB5T10-1000, 3942S1027HM1WB, 39-42S10-27HM1WB, 5340-00-945-8286, 00-945-8286, 5340009458286, 009458286
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 MAR 1966 | 00-945-8286 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-00-945-8286
Demand History | NSN 5340-00-945-8286
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DVG3912S10A | 2021-10-286 | 4 | DIBBS |
| DVG3912S10A | 2021-03-89 | 14 | DIBBS |
| DVG3912S10A | 2019-03-71 | 50 | DIBBS |
| DVG3912S10A | 2019-03-63 | 50 | DIBBS |
| DVG3912S10A | 2019-01-27 | 9 | DIBBS |
| 5340-00-945-8286 | 2018-04-103 | 15 | DIBBS |
| 5340-00-945-8286 | 2018-04-95 | 15 | DIBBS |
| 5340-00-945-8286 | 2018-02-43 | 12 | DIBBS |
| 5340-00-945-8286 | 2017-10-288 | 10 | DIBBS |
| 5340-00-945-8286 | 2016-06-159 | 32 | DIBBS |
| 5340-00-945-8286 | 2016-03-90 | 17 | DIBBS |
| 5340-00-945-8286 | 2013-09-269 | 1 | DIBBS-RFPs |
| 5340-00-945-8286 | 2013-07-183 | 40 | DIBBS |
| 5340-00-945-8286 | 2013-05-141 | 2 | United States |
| 5340-00-945-8286 | 2013-04-95 | 42 | DIBBS |
| 5340-00-945-8286 | 2013-02-52 | 30 | DIBBS |
| 5340-00-945-8286 | 2012-12-347 | 27 | DIBBS |
| 5340-00-945-8286 | 2012-11-324 | 15 | DIBBS |
| 5340-00-945-8286 | 2012-06-181 | 31 | DIBBS |
| 5340-00-945-8286 | 2011-02-45 | 60 | DIBBS |
| 5340-00-945-8286 | 2011-01-20 | 90 | DIBBS |
| 5340-00-945-8286 | 2010-08-228 | 3 | DIBBS |
| 5340-00-945-8286 | 2010-07-196 | 7 | US |
| 5340-00-945-8286 | 2010-04-97 | 22 | DIBBS |
| 5340-00-945-8286 | 2009-12-352 | 60 | DIBBS |
| 5340-00-945-8286 | 2009-12-338 | 16 | DIBBS |
| 5340-00-945-8286 | 2009-07-203 | 50 | DIBBS |
| 5340-00-945-8286 | 2009-05-121 | 5 | DIBBS |
| 5340-00-945-8286 | 2009-01-09 | 11 | DIBBS |
Cross Reference | NSN 5340-00-945-8286
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 39-12S10-27HM1WB5T10-1000 | 01083 | MODERN SUSPENSION SYSTEMS INC DBA ROCKFORD METAL PRODUCTS DIV |
| 39-42S10-27HM1WB | 01083 | MODERN SUSPENSION SYSTEMS INC DBA ROCKFORD METAL PRODUCTS DIV |
| A1063-1000 | 01083 | MODERN SUSPENSION SYSTEMS INC DBA ROCKFORD METAL PRODUCTS DIV |
| DVG3912S10A | 01083 | MODERN SUSPENSION SYSTEMS INC DBA ROCKFORD METAL PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-945-8286
Related Products | NSN 5340-00-945-8286
Technical Data | NSN 5340-00-945-8286
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY WHEEL RIM RUBBER TREAD |
| SAFE OPERATING LOAD RATING | 1000.0 POUNDS NOMINAL |
| STYLE DESIGNATOR | 2 SWIVEL OFFSET |
| WHEEL DIAMETER | 10.000 INCHES NOMINAL |
| TREAD WIDTH | 2.500 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 7.375 INCHES MINIMUM AND 9.375 INCHES MAXIMUM |

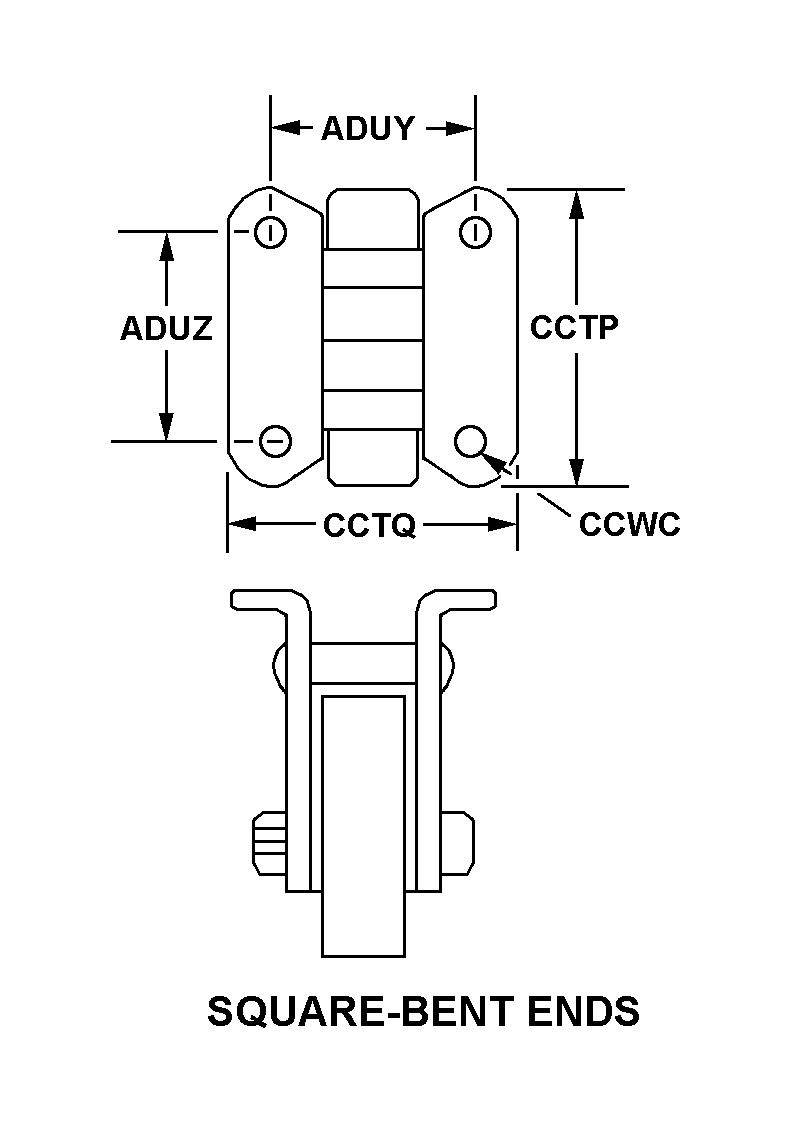

| PLATE STYLE | 9 SQUARE-BENT ENDS |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 4.625 INCHES MINIMUM AND 5.500 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 4.625 INCHES MINIMUM AND 5.500 INCHES MAXIMUM |
| CASTER PLATE LENGTH | 6.000 INCHES NOMINAL |
| CASTER PLATE WIDTH | 6.750 INCHES NOMINAL |
| CASTER PLATE MOUNTING HOLE DIAMETER | 0.500 INCHES NOMINAL |
| WHEEL BEARING TYPE | THRUST |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | SOLID |
| FEATURES PROVIDED | BRAKE LOCK AND HEXAGON NUT AND SWIVEL LOCK |
| SPECIAL FEATURES | RIM MEASURES 3.000" NOM W |
Restrictions/Controls & Freight Information | NSN 5340-00-945-8286
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041725 | CASTERS NOI IN BAGS/BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-945-8286
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
