NSN 5340-00-953-9334 10919347, 00-953-9334, 009539334
Product Details | RETAINING BAND
5340-00-953-9334 A flexible or semiflexible metal strip designed to partially surround and retain an item against a structure, frame, bracket, or the like. Includes a single segment of a sectioned type CLAMP, LOOP or CLAMP, HOSE. Both ends may have, but one end must have, a loop to accommodate a hinge pin, or a stud welded to the end of the band. May be furnished with a trunnion, T-bolt, pin, latch, or the like. For items designed to completely surround an object(s), see CLAMP, LOOP. See also COVER, ACCESS and STRAP, RETAINING.
Part Alternates: 10919347, 5340-00-953-9334, 00-953-9334, 5340009539334, 009539334
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-953-9334 | 20318 ( BAND, RETAINING ) |
Drawings & Photos | NSN 5340-00-953-9334
Cross Reference | NSN 5340-00-953-9334
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10919347 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-953-9334
Technical Data | NSN 5340-00-953-9334
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-250/8 |
| BASIC SHAPE STYLE | K1 FLAT |
| WIDTH | 2.063 INCHES MINIMUM AND 2.125 INCHES MAXIMUM |
| THICKNESS | 0.023 INCHES MINIMUM AND 0.027 INCHES MAXIMUM |
| LENGTH | 25.160 INCHES MINIMUM AND 25.220 INCHES MAXIMUM |

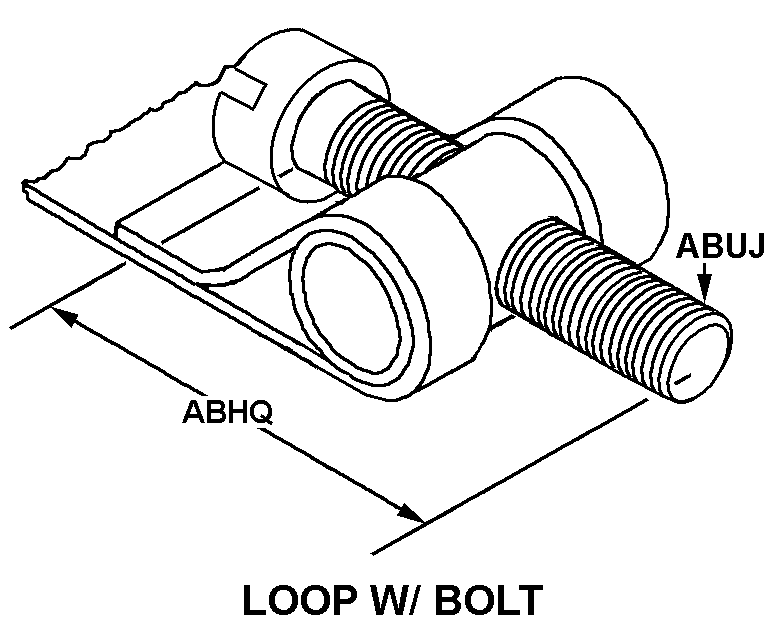

| END STYLE | L11 LOOP WITH BOLT |
| SPECIAL FEATURES | 8 RIVETS AND 1 SCREW ASSY INCLUDED;ITEM USED ON 2350-00-056-6808 |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10919347 |
Restrictions/Controls & Freight Information | NSN 5340-00-953-9334
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
