NSN 5340-00-970-5168 D52883, D5288-3, D52883ITEMF
Product Details | BUTT HINGE
5340-00-970-5168 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: D52883, D5288-3, D52883ITEMF, D5288-3ITEMF, DEC4311AHINGE, DEC431-1AHINGE, 5340-00-970-5168, 00-970-5168, 5340009705168, 009705168
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-970-5168 | 22894 ( HINGE, BUTT ) |

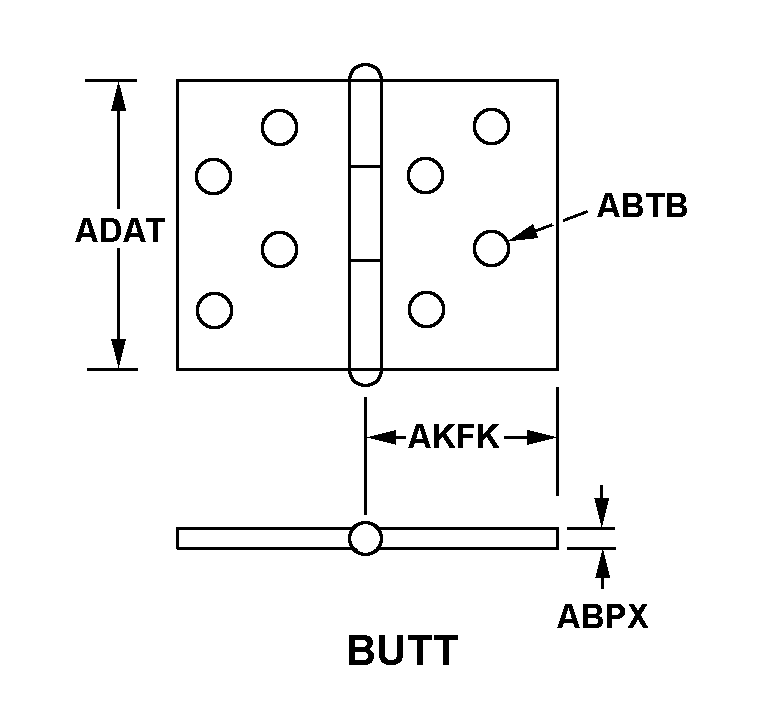

Drawings & Photos | NSN 5340-00-970-5168
Demand History | NSN 5340-00-970-5168
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-970-5168 | 2020-07-212 | 1 | United States |
Cross Reference | NSN 5340-00-970-5168
