NSN 5340-01-010-2694 FFH111, FF-H-111, 66B10RIM
Product Details | CASEMENT FASTENER
5340-01-010-2694 A barring device consisting of an integral bar and handle which is either attached to a base plate or designed to be attached directly to the item which it fastens by a pin, bolt or screw. It is engaged by placing the integral bar in an adjoining cavity or strike and is secured by cam action. The fastener is usually mounted on the stile of a door and can be operated from one side only.
Part Alternates: FFH111, FF-H-111, 66B10RIM, 5340-01-010-2694, 01-010-2694, 5340010102694, 010102694
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 SEP 1975 | 01-010-2694 | 06628 ( FASTENER, CASEMENT ) |
Drawings & Photos | NSN 5340-01-010-2694
Demand History | NSN 5340-01-010-2694
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-010-2694 | 2011-10-280 | 8 | DIBBS |
| 5340-01-010-2694 | 2010-12-353 | 100 | DIBBS |
| 5340-01-010-2694 | 2010-05-140 | 5 | DIBBS |
| 5340-01-010-2694 | 2010-03-83 | 10 | DIBBS |
| 5340-01-010-2694 | 2010-02-35 | 3 | DIBBS |
| 5340-01-010-2694 | 2010-02-35 | 7 | DIBBS |
| 5340-01-010-2694 | 2009-08-231 | 7 | DIBBS |
| 5340-01-010-2694 | 2009-05-121 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-010-2694
Related Products | NSN 5340-01-010-2694
Technical Data | NSN 5340-01-010-2694
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |

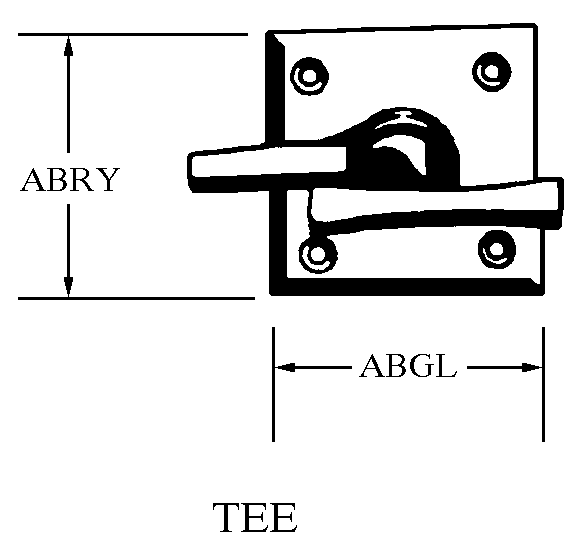

| STYLE DESIGNATOR | E2 TEE |
| WIDTH | 1.000 INCHES NOMINAL |
| LENGTH | 2.000 INCHES NOMINAL |
| STRIKE STYLE | A3 RIM |
| NONDEFINITIVE SPEC/STD DATA | 1135 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-H-111 |
Restrictions/Controls & Freight Information | NSN 5340-01-010-2694
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-010-2694
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
