NSN 5340-01-010-5684 527137, 5-27-137, 01-010-5684
Product Details | SWIVEL CASTER
5340-01-010-5684 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: 527137, 5-27-137, 5340-01-010-5684, 01-010-5684, 5340010105684, 010105684
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 OCT 1975 | 01-010-5684 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-01-010-5684
Cross Reference | NSN 5340-01-010-5684
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5-27-137 | 31767 | STANDEX INTL CORP JARVIS AND JARVIS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-010-5684
Related Products | NSN 5340-01-010-5684
Technical Data | NSN 5340-01-010-5684
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| SURFACE TREATMENT AND LOCATION | ZINC WHEEL RIM |
| SAFE OPERATING LOAD RATING | 125.0 POUNDS NOMINAL |
| STYLE DESIGNATOR | 6 SWIVEL OFFSET |
| WHEEL DIAMETER | 5.000 INCHES NOMINAL |
| TREAD WIDTH | 1.000 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 6.297 INCHES NOMINAL |
| STEM STYLE | 4 PLAIN |
| STEM LENGTH | 6.000 INCHES NOMINAL |
| STEM DIAMETER | 0.750 INCHES NOMINAL |

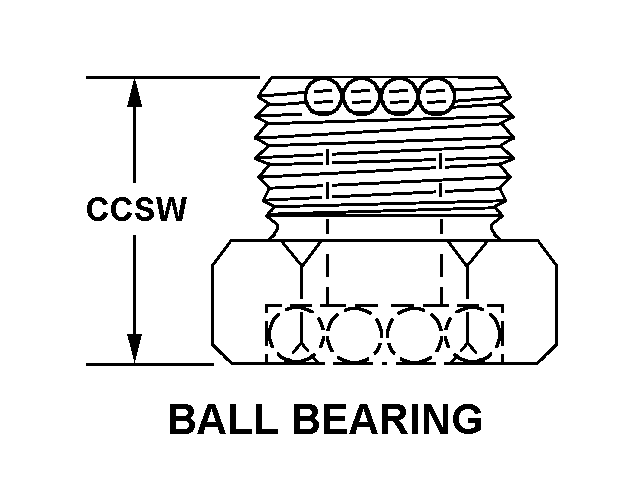

| STEM SOCKET STYLE | 43 BALL BEARING |
| STEM SOCKET OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| STEM SOCKET THREAD SERIES DESIGNATOR | NPT |
| STEM SOCKET NOMINAL PIPE SIZE DESIGNATOR | 0.750 INCHES |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | SOLID |
Restrictions/Controls & Freight Information | NSN 5340-01-010-5684
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
