NSN 5340-01-016-5774 331755, 3-317-55, 01-016-5774
Product Details | RIGID CASTER
5340-01-016-5774 A caster designed to maintain the rotation of the wheel(s) or spherical constructed item in one plane.
Part Alternates: 331755, 3-317-55, 5340-01-016-5774, 01-016-5774, 5340010165774, 010165774
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 FEB 1976 | 01-016-5774 | 06187 ( CASTER, RIGID ) |

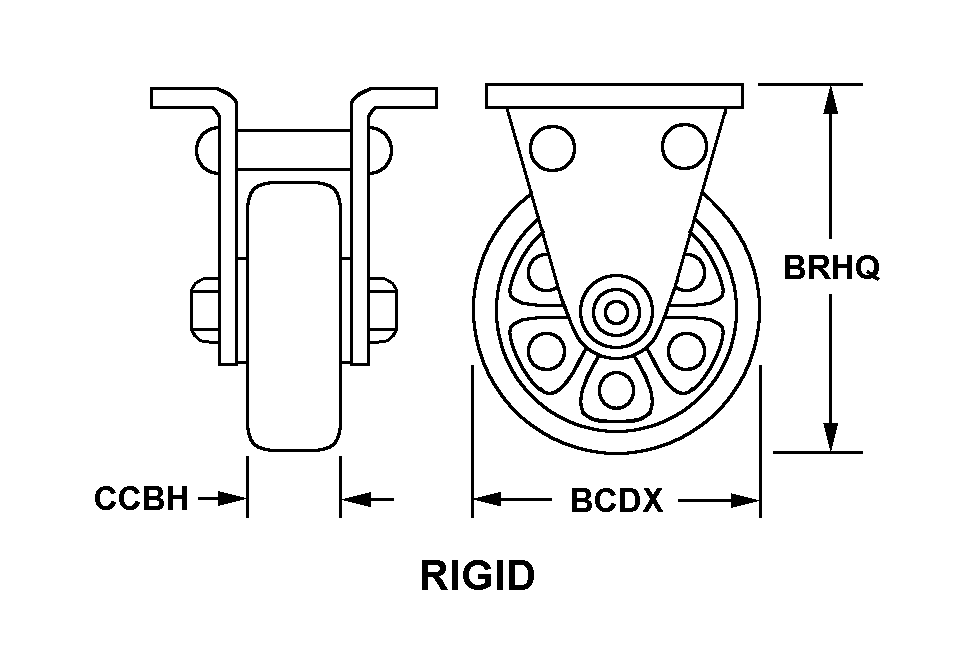

Drawings & Photos | NSN 5340-01-016-5774
Cross Reference | NSN 5340-01-016-5774
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-317-55 | 13591 | DARLING SPECIAL PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-016-5774
Related Products | NSN 5340-01-016-5774
Technical Data | NSN 5340-01-016-5774
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | RUBBER TREAD RUBBER WHEEL RIM STEEL BODY STEEL PLATE |
| SAFE OPERATING LOAD RATING | 300.0 POUNDS NOMINAL |
| STYLE DESIGNATOR | 4 RIGID |
| WHEEL DIAMETER | 3.250 INCHES NOMINAL |
| TREAD WIDTH | 1.375 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 4.625 INCHES NOMINAL |
| PLATE STYLE | 9 SQUARE-BENT ENDS |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 3.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 3.000 INCHES NOMINAL |
| CASTER PLATE LENGTH | 4.000 INCHES NOMINAL |
| CASTER PLATE WIDTH | 4.000 INCHES NOMINAL |
| CASTER PLATE MOUNTING HOLE DIAMETER | 0.375 INCHES NOMINAL |
| WHEEL BEARING TYPE | ANNULAR BALL |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | BUILT UP |
Restrictions/Controls & Freight Information | NSN 5340-01-016-5774
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
