NSN 5340-01-017-4192 2X32, 01-017-4192, 010174192
Product Details | SLIDING DOOR TRACK BRACKET
5340-01-017-4192 A fabricated item for fastening to a supporting member and which holds and supports the sliding door track. It may have attachments and serve additional functions as a center or end stop for the door, or to lock adjoining sections of track.
Part Alternates: 2X32, 5340-01-017-4192, 01-017-4192, 5340010174192, 010174192
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAR 1976 | 01-017-4192 | 06699 ( BRACKET, TRACK, SLIDING DOOR ) |

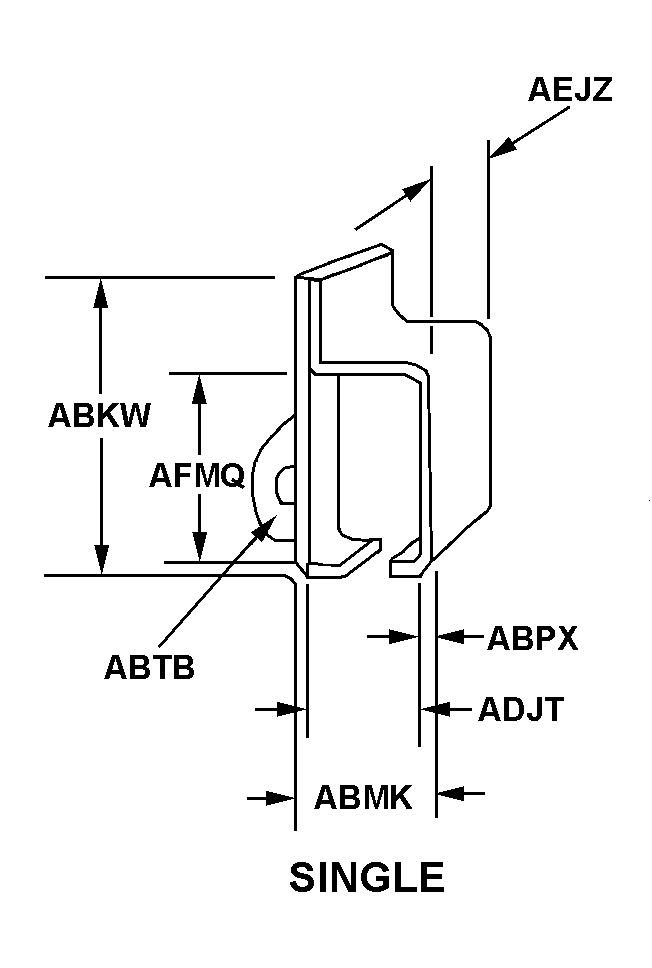

Drawings & Photos | NSN 5340-01-017-4192
Cross Reference | NSN 5340-01-017-4192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2X32 | 50798 | RICHARDS-WILCOX INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-017-4192
Technical Data | NSN 5340-01-017-4192
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL |
| STYLE DESIGNATOR | 38 SINGLE |
| III OVERALL HEIGHT | 5.125 INCHES NOMINAL |
| III OVERALL WIDTH | 2.500 INCHES NOMINAL |
| III MATERIAL THICKNESS | 0.187 INCHES NOMINAL |
| III MOUNTING HOLE DIAMETER | 0.562 INCHES NOMINAL |
| III INSIDE WIDTH | 2.125 INCHES NOMINAL |
| III DEPTH | 2.375 INCHES NOMINAL |
| III INSIDE HEIGHT | 3.562 INCHES NOMINAL |
| SPECIAL FEATURES | END BRACKETS |
| (NON-CORE DATA) FABRICATION METHOD | STAMPED AND WELDED |
Restrictions/Controls & Freight Information | NSN 5340-01-017-4192
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5340-01-017-4192
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
