NSN 5340-01-022-6509 107192, 3192291, 01-022-6509
Product Details | DUST AND MOISTURE SEAL BOOT
5340-01-022-6509 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: 107192, 3192291, 5340-01-022-6509, 01-022-6509, 5340010226509, 010226509
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 JUN 1976 | 01-022-6509 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |

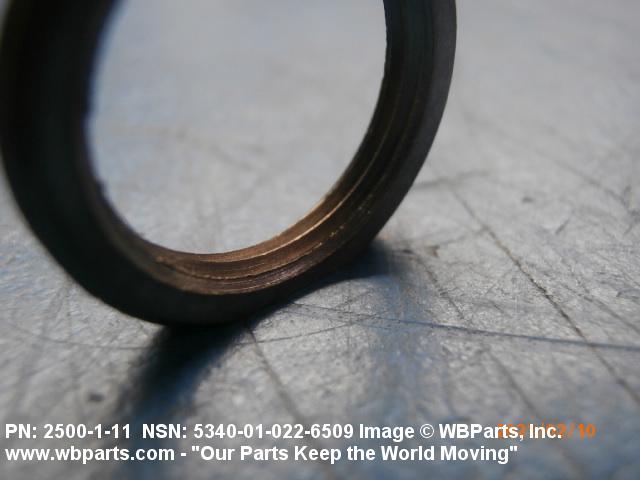

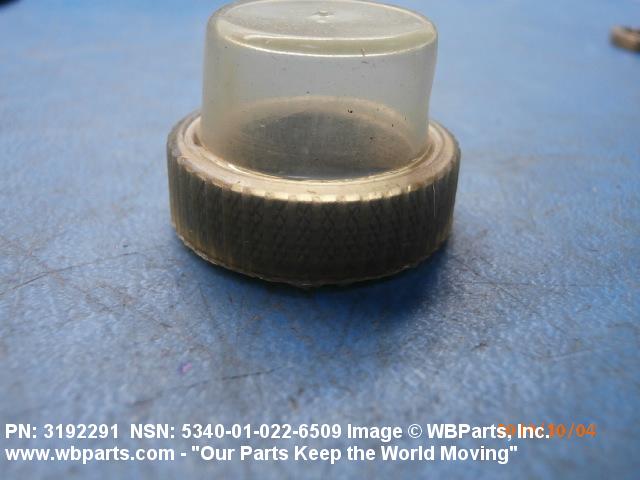

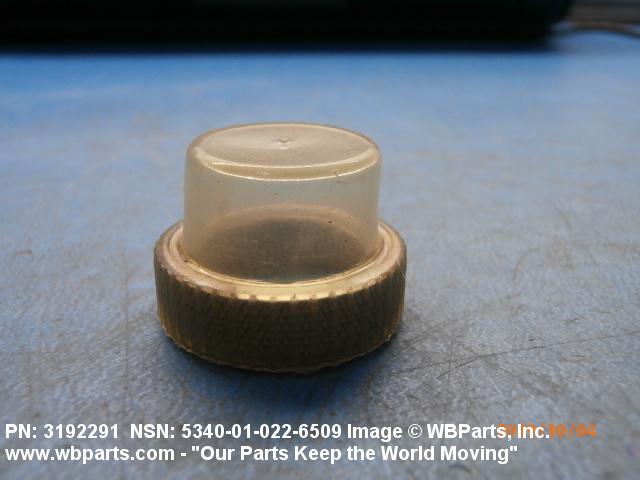

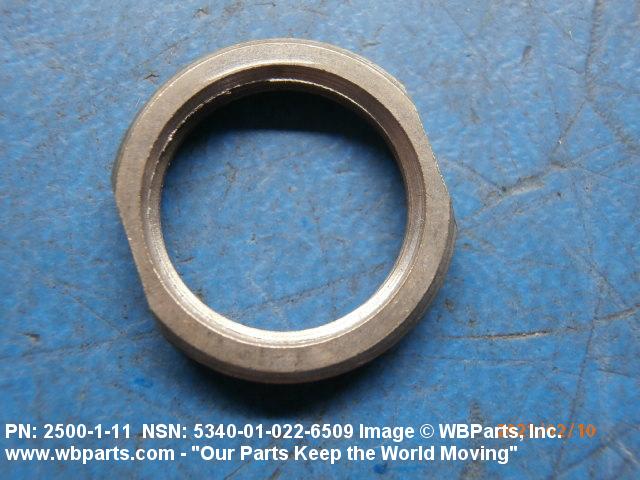

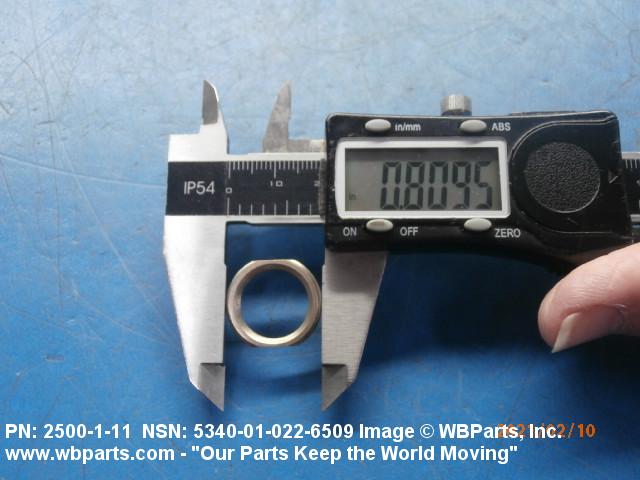

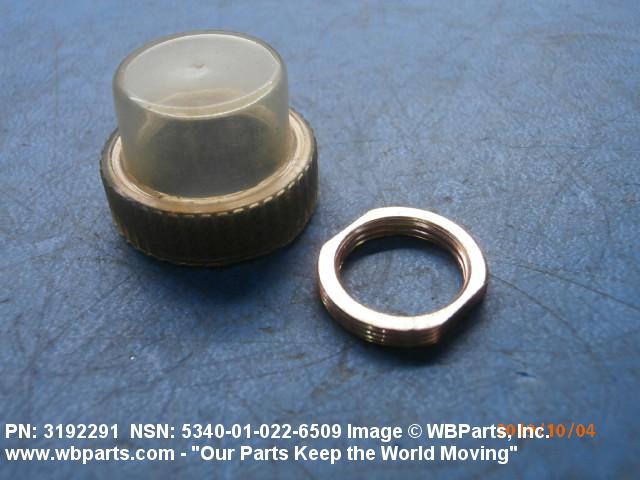

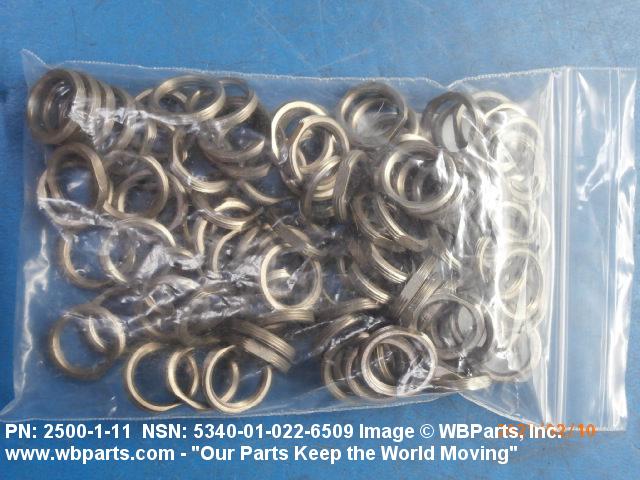

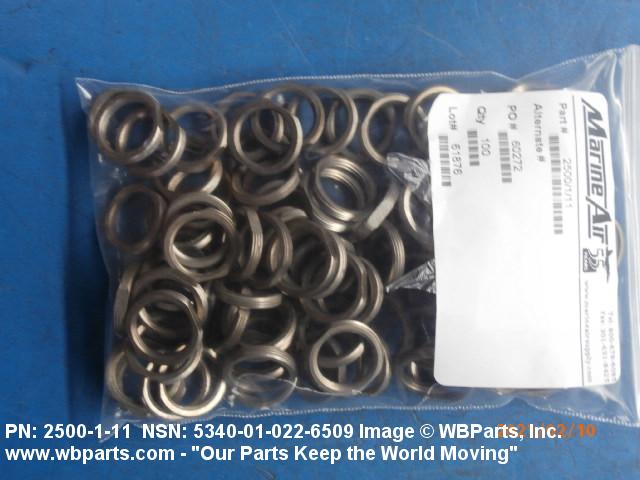

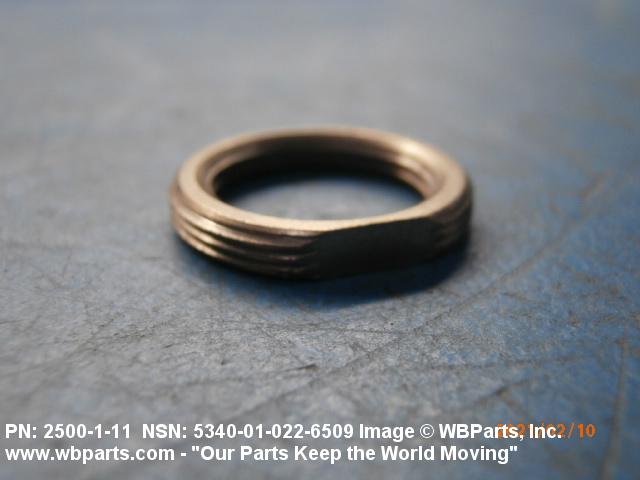

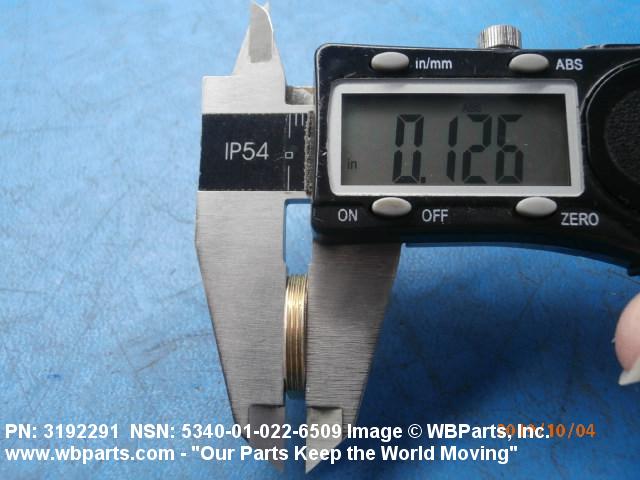

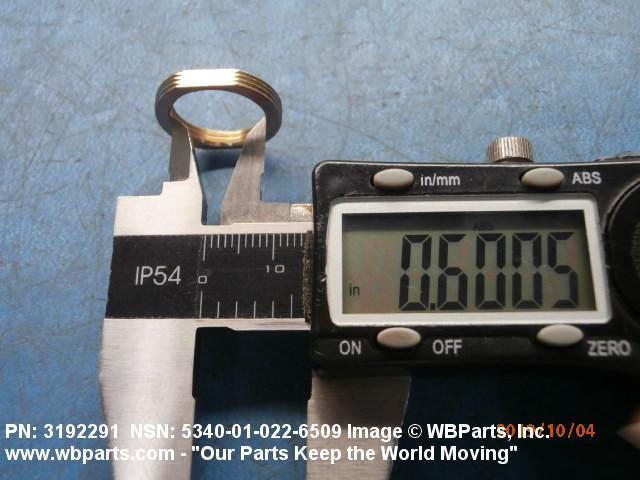

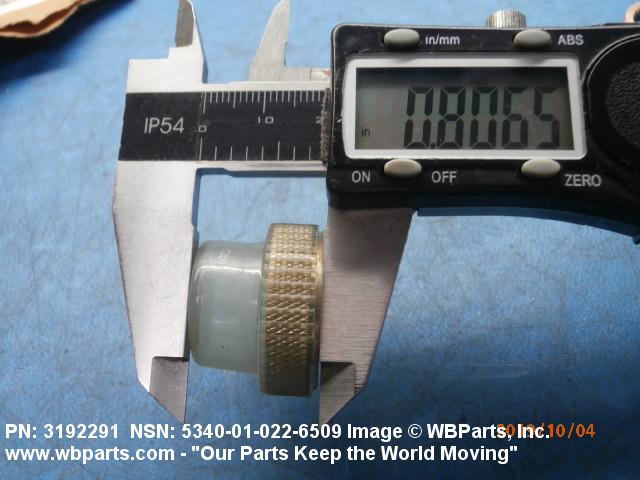

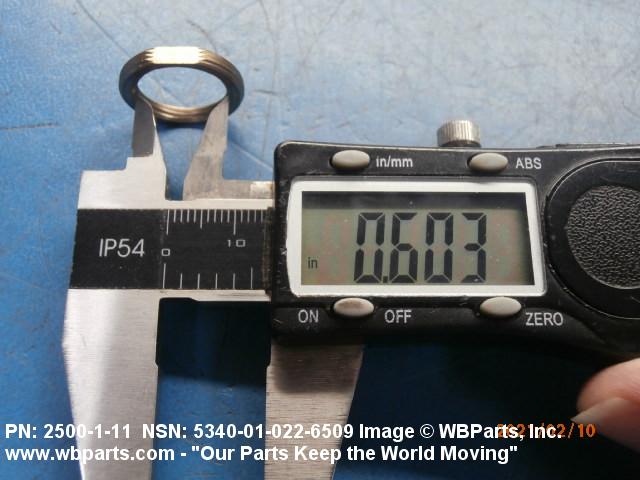

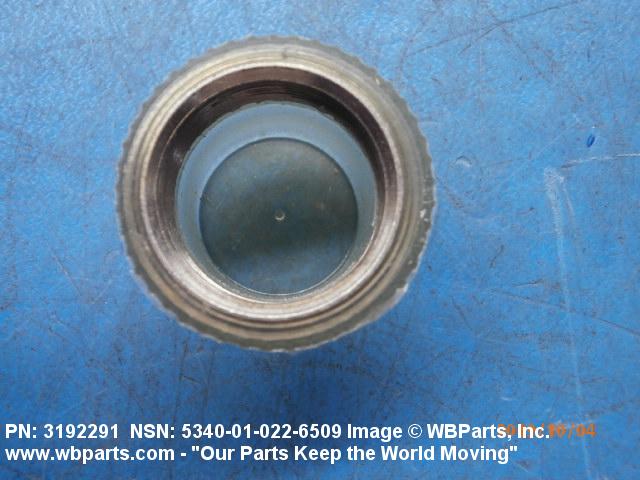

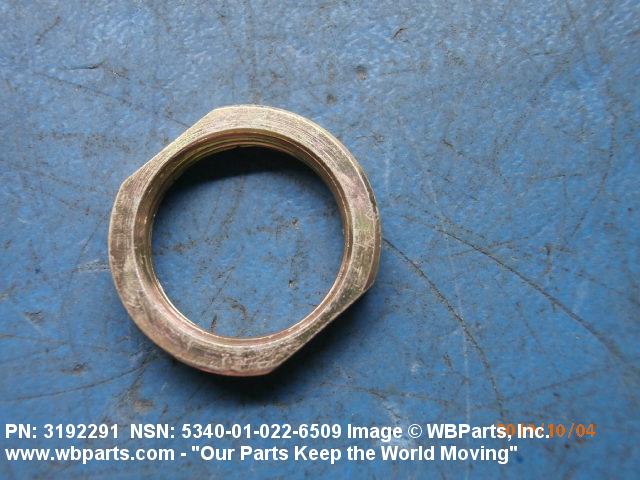

Drawings & Photos | NSN 5340-01-022-6509
Demand History | NSN 5340-01-022-6509
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-022-6509 | 2025-10-296 | 472 | DIBBS |
| 5340-01-022-6509 | 2025-03-86 | 342 | DIBBS |
| 5340-01-022-6509 | 2023-05-129 | 8 | United States |
| 5340-01-022-6509 | 2021-01-07 | 1 | United States |
| 5340-01-022-6509 | 2020-10-295 | 10 | United States |
| 5340-01-022-6509 | 2020-07-184 | 476 | DIBBS |
| 5340-01-022-6509 | 2020-06-176 | 476 | DIBBS |
| 5340-01-022-6509 | 2020-03-77 | 550 | DIBBS |
| 5340-01-022-6509 | 2020-03-63 | 1 | DIBBS-RFPs |
| 5340-01-022-6509 | 2019-12-336 | 381 | DIBBS |
| 5340-01-022-6509 | 2019-09-261 | 3 | United States |
| 5340-01-022-6509 | 2019-07-206 | 4 | VI |
| 5340-01-022-6509 | 2019-02-49 | 381 | DIBBS |
| 5340-01-022-6509 | 2016-08-223 | 702 | DIBBS |
| 5340-01-022-6509 | 2016-07-213 | 702 | DIBBS |
| 5340-01-022-6509 | 2009-11-322 | 1377 | DIBBS |
| 5340-01-022-6509 | 2009-06-166 | 400 | DIBBS |
| 5340-01-022-6509 | 2009-05-131 | 683 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-022-6509
Technical Data | NSN 5340-01-022-6509
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A24 CLOSED END |
| OVERALL HEIGHT | 0.812 INCHES NOMINAL |
| MATERIAL | ALUMINUM AND COPPER ALLOY AND RUBBER BODY |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTTIGHT-NEMA TYPE 5 AND MOISTURE PROOF AND SUBMERSIBLE-NEMA TYPE 6 |
| MOUNTING METHOD | THREAD |
| MOUNTING DEVICE QUANTITY | 1 |
| SEALING METHOD | COMPRESSION |
| BASE THREAD LOCATION | INTERNAL |
| THREAD SERIES | UNEF |
| NOMINAL THREAD SIZE | 0.625 INCHES |

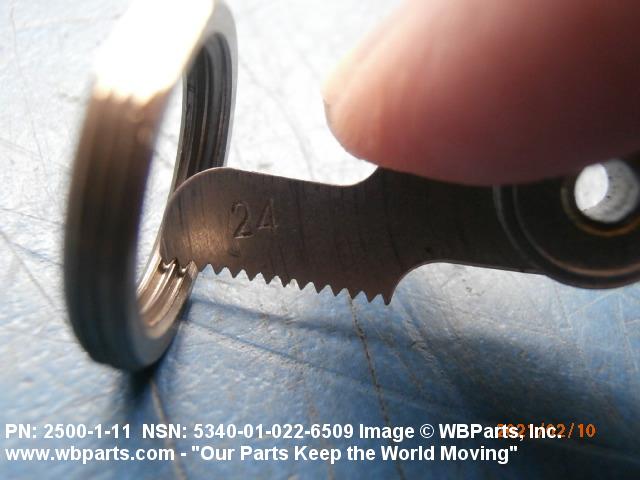

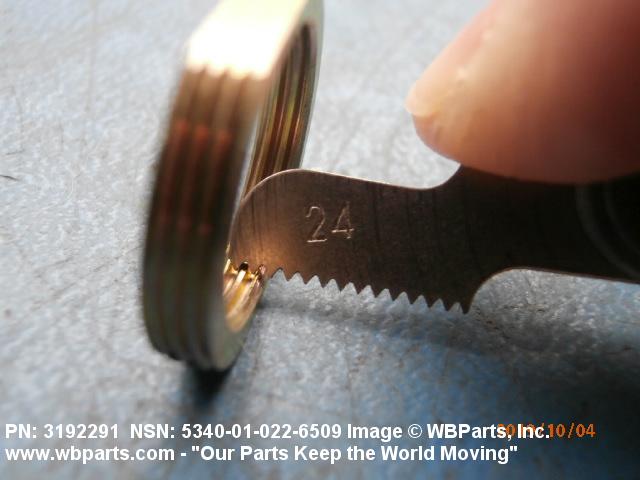

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |

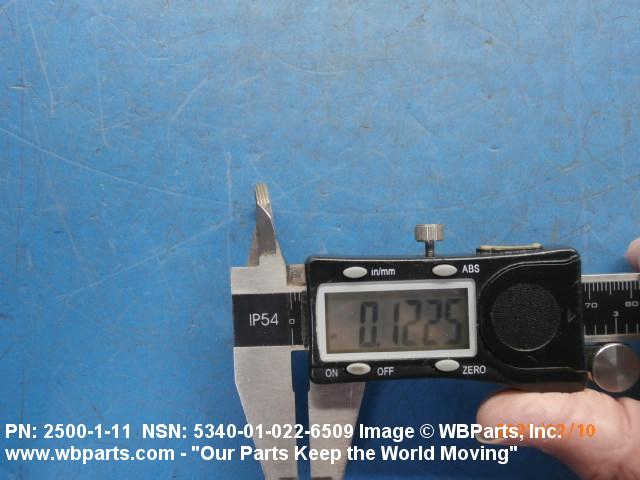

| THREAD LENGTH | 0.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 3192291 |
Restrictions/Controls & Freight Information | NSN 5340-01-022-6509
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
