NSN 5340-01-025-1480 24102, 2-4-102, 01-025-1480
Product Details | SWIVEL CASTER
5340-01-025-1480 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: 24102, 2-4-102, 5340-01-025-1480, 01-025-1480, 5340010251480, 010251480
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUL 1976 | 01-025-1480 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-01-025-1480
Cross Reference | NSN 5340-01-025-1480
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-4-102 | 31767 | STANDEX INTL CORP JARVIS AND JARVIS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-025-1480
Related Products | NSN 5340-01-025-1480
Technical Data | NSN 5340-01-025-1480
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL BODY AND RUBBER, HARD TIRE |
| SURFACE TREATMENT AND LOCATION | CADMIUM PLATED BODY |
| SAFE OPERATING LOAD RATING | 100.0 POUNDS NOMINAL |
| STYLE DESIGNATOR | 6 SWIVEL OFFSET |
| WHEEL DIAMETER | 2.000 INCHES NOMINAL |
| TREAD WIDTH | 0.812 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 2.781 INCHES NOMINAL |
| STEM STYLE | 13 THREADED |
| STEM LENGTH | 1.500 INCHES NOMINAL |
| STEM THREAD SERIES DESIGNATOR | UNC |
| STEM THREAD QUANTITY PER INCH | 16 |
| STEM THREAD DIAMETER | 0.375 INCHES NOMINAL |

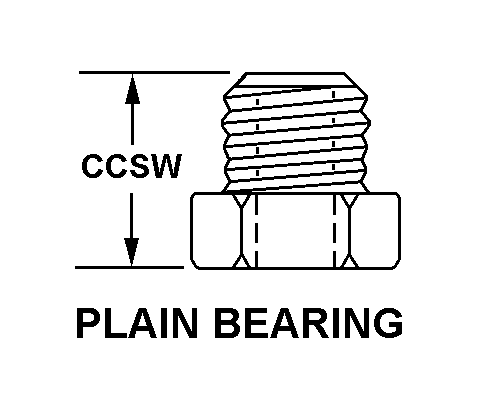

| STEM SOCKET STYLE | 41 PLAIN BEARING |
| STEM SOCKET OVERALL HEIGHT | 0.375 INCHES NOMINAL |
| STEM SOCKET THREAD SERIES DESIGNATOR | NPT |
| STEM SOCKET NOMINAL PIPE SIZE DESIGNATOR | 0.375 INCHES |
| SWIVEL BEARING TYPE | PLAIN, SELF-LUBRICATED |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | SOLID |
Restrictions/Controls & Freight Information | NSN 5340-01-025-1480
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
