NSN 5340-01-049-0840 010490840
Product Details | THREADED END TENSIONING TIE ROD
5340-01-049-0840 A rod having various cross-sectional shaped bodies with one right hand and one left hand integral externally threaded end. See also TURNBUCKLE; TURNBUCKLE BODY; and ROD, THREADED END.
Part Alternates: 010490840
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-049-0840 | 20759 ( TIE ROD, TENSIONING, THREADED END ) |

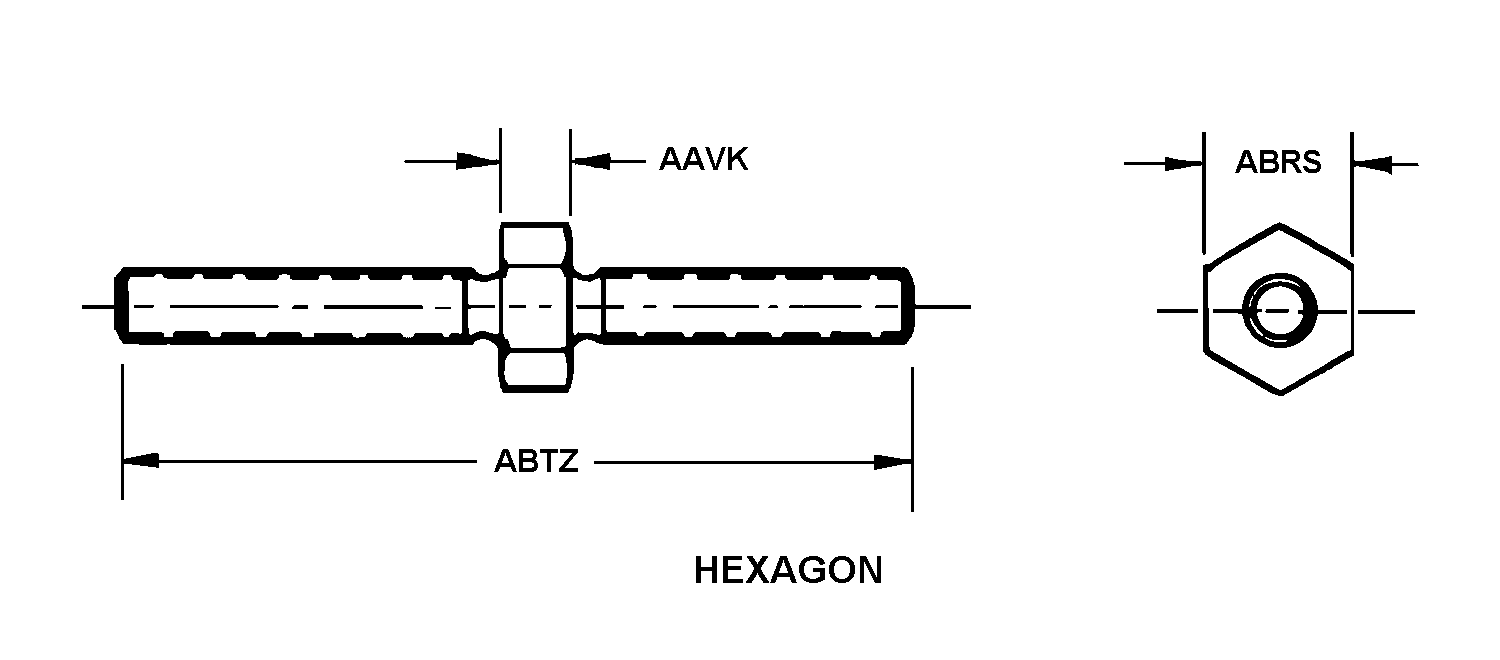

Drawings & Photos | NSN 5340-01-049-0840
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-049-0840
Related Products | NSN 5340-01-049-0840
Technical Data | NSN 5340-01-049-0840
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758,COND D4 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5626,COND C4 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 204-947-002,BELL HELICOPTER CO MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.250 INCHES ROD CONNECTION |
| THREAD CLASS | 3A OVERALL |
| THREAD LENGTH | 0.740 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 153 HEXAGON |
| SHOULDER LENGTH | 0.160 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.440 INCHES NOMINAL |
| OVERALL LENGTH | 1.640 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-01-049-0840
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
