NSN 5340-01-081-4878 H-6081D-2.5-064 064, H6081D25064064, H6081D2-5064064
Product Details | BUTT HINGE
5340-01-081-4878 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: H-6081D-2.5-064 064, H6081D25064064, H6081D2-5064064, H6081D2-5-064-064, 5340-01-081-4878, 01-081-4878, 5340010814878, 010814878
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 AUG 1979 | 01-081-4878 | 22894 ( HINGE, BUTT ) |
Drawings & Photos | NSN 5340-01-081-4878
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-081-4878
Technical Data | NSN 5340-01-081-4878
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |

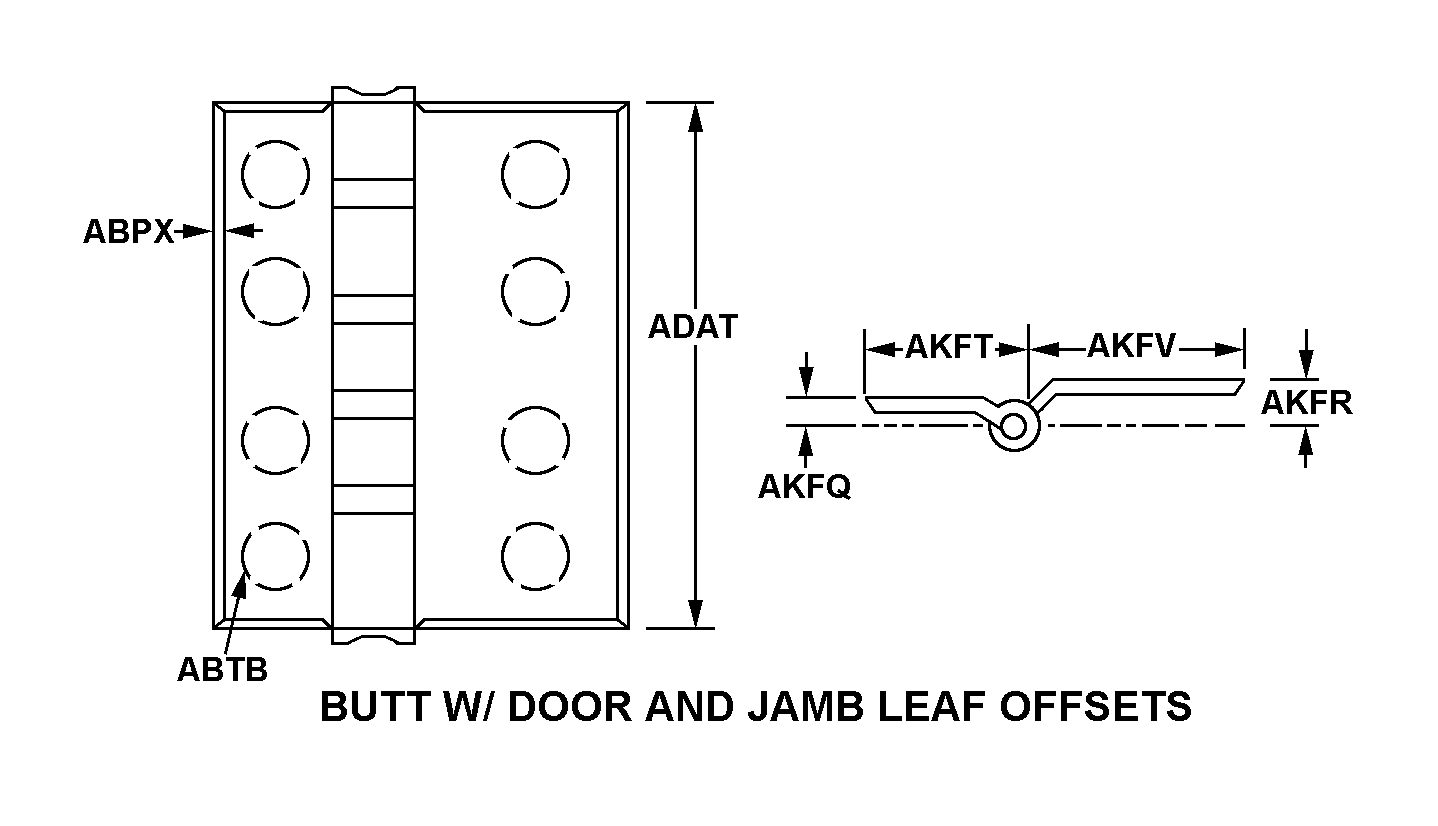

| STYLE DESIGNATOR | 26 BUTT W/DOOR AND JAMB LEAF OFFSETS |
| MOUNTING HOLE DIAMETER | 0.128 INCHES NOMINAL |
| BODY WIDTH | 2.500 INCHES NOMINAL |
| JAMB LEAF OFFSET DISTANCE | 0.064 INCHES NOMINAL |
| DOOR LEAF OFFSET DISTANCE | 0.064 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 8 |
Restrictions/Controls & Freight Information | NSN 5340-01-081-4878
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
