Product Details | HAND CRANK
5340-01-083-3107 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.20229900045Miscellaneous Engine Accessories, Nonaircraft53400020Hardware, Commercial
Part Alternates: 11640134-1, 5340-01-083-3107, 01-083-3107, 5340010833107, 116401341, 010833107
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 SEP 1979 | 01-083-3107 | 17533 ( CRANK, HAND ) |
Drawings & Photos | NSN 5340-01-083-3107
Demand History | NSN 5340-01-083-3107
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-083-3107 | 2021-10-25 | 51 | DIBBS |
| 5340-01-083-3107 | 2021-10-13 | 51 | DIBBS |
| 5340-01-083-3107 | 2021-07-26 | 32 | DIBBS |
| 5340-01-083-3107 | 2021-07-18 | 32 | DIBBS |
| 5340-01-083-3107 | 2021-03-09 | 33 | DIBBS |
| 5340-01-083-3107 | 2021-03-01 | 33 | DIBBS |
| 5340-01-083-3107 | 2020-05-29 | 1 | DIBBS-RFPs |
| 5340-01-083-3107 | 2020-05-07 | 47 | DIBBS |
| 5340-01-083-3107 | 2020-04-27 | 47 | DIBBS |
| 5340-01-083-3107 | 2020-04-19 | 47 | DIBBS |
| 5340-01-083-3107 | 2013-07-21 | 150 | DIBBS |
| 5340-01-083-3107 | 2012-08-29 | 300 | DIBBS |
| 5340-01-083-3107 | 2012-06-08 | 282 | DIBBS |
| 5340-01-083-3107 | 2011-08-24 | 100 | DIBBS |
| 5340-01-083-3107 | 2010-06-09 | 115 | DIBBS |
| 5340-01-083-3107 | 2010-02-22 | 150 | DIBBS |
| 5340-01-083-3107 | 2009-05-07 | 44 | DIBBS |
Cross Reference | NSN 5340-01-083-3107
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11640134-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-01-083-3107
Related Products | NSN 5340-01-083-3107
5340-01-083-3132, 5340-01-083-3158, 5340-01-083-3378, 5340-01-083-3421, 5340-01-083-3441
Technical Data | NSN 5340-01-083-3107
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |

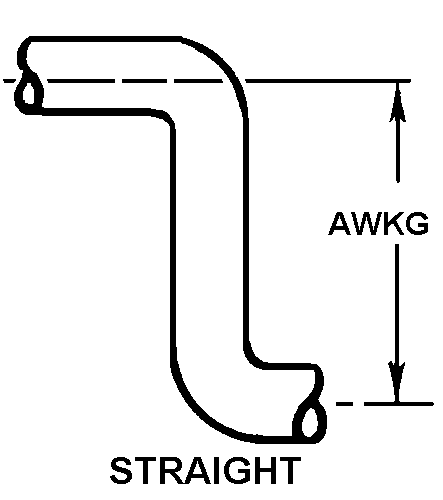

| ARM STYLE | 5 STRAIGHT |
| CRANK THROW LENGTH | 14.000 INCHES NOMINAL |
| DRIVE END STYLE | 101 EXTERNAL |
| SHANK LENGTH | 0.870 INCHES NOMINAL |
| SLOT WIDTH | 0.410 INCHES NOMINAL |
| SLOT LENGTH | 0.870 INCHES NOMINAL |
| OUTSIDE WIDTH | 2.380 INCHES NOMINAL |
| FORK WIDTH | 1.590 INCHES MINIMUM AND 1.625 INCHES MAXIMUM |
| FORK SPAN WIDTH | 1.010 INCHES MINIMUM AND 1.060 INCHES MAXIMUM |
| FORK DEPTH | 1.510 INCHES NOMINAL |
| DRIVE FACILITY STYLE | 123 ROUND |
| INSIDE DIAMETER | 1.010 INCHES MINIMUM AND 1.030 INCHES MAXIMUM |
| CRANK OVERALL LENGTH | 38.820 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | INCLUDED |
| RATCHET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-01-083-3107
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-083-3107
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
