NSN 5340-01-083-9001 NAS1715D19KW, 01-083-9001, 010839001
Product Details | LOOP CLAMP
5340-01-083-9001 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: NAS1715D19KW, 5340-01-083-9001, 01-083-9001, 5340010839001, 010839001
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 OCT 1979 | 01-083-9001 | 17532 ( CLAMP, LOOP ) |

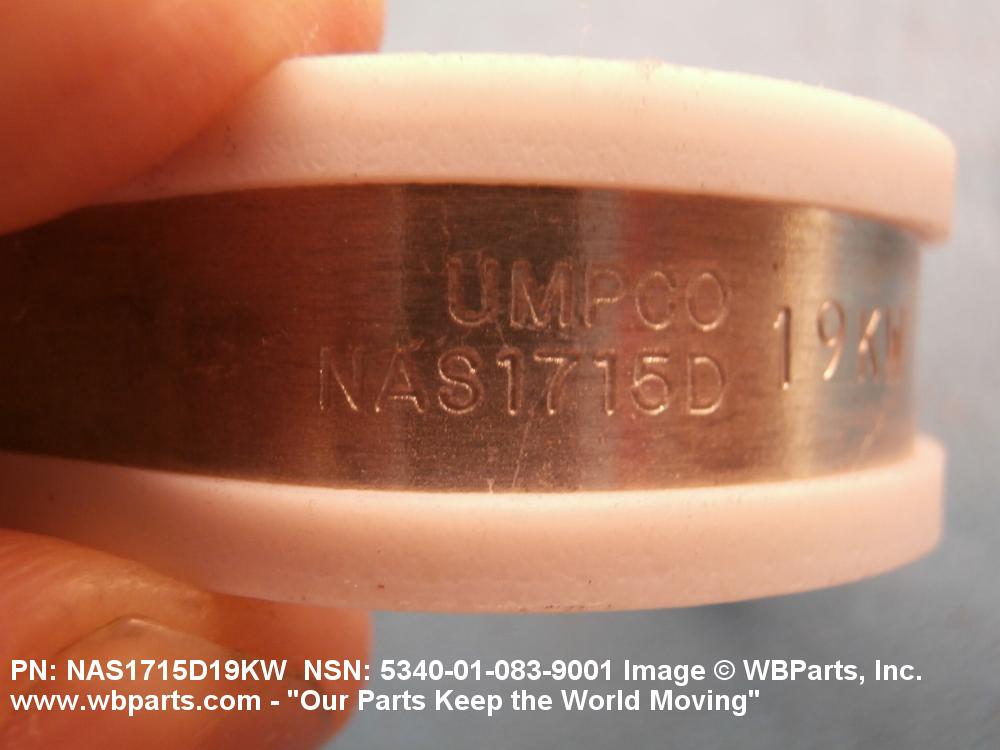

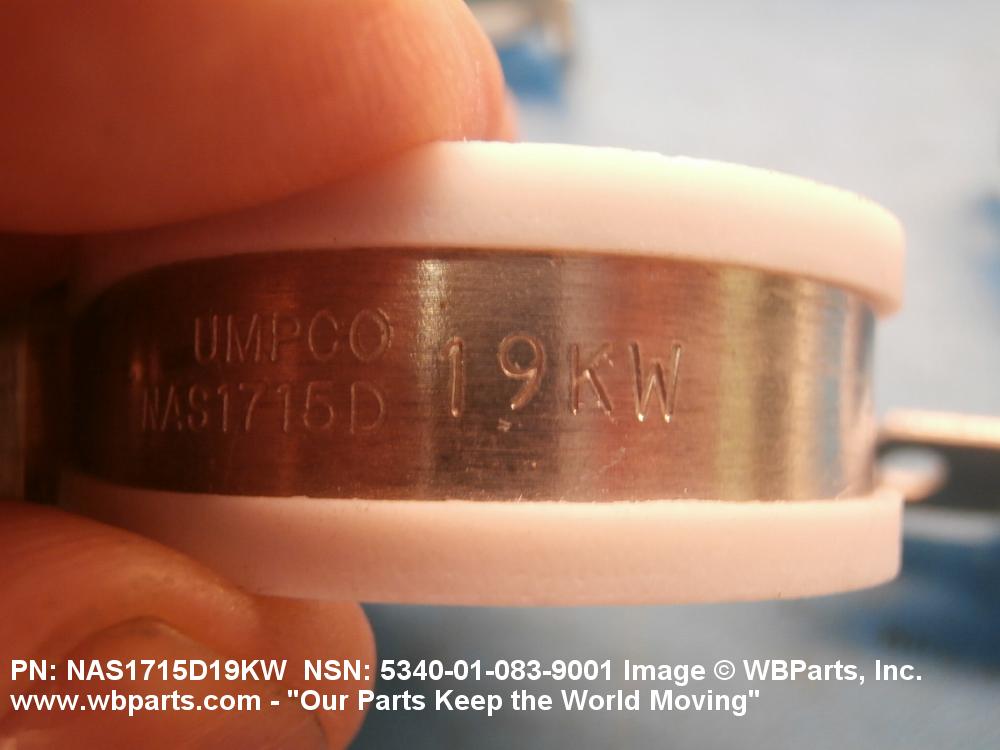

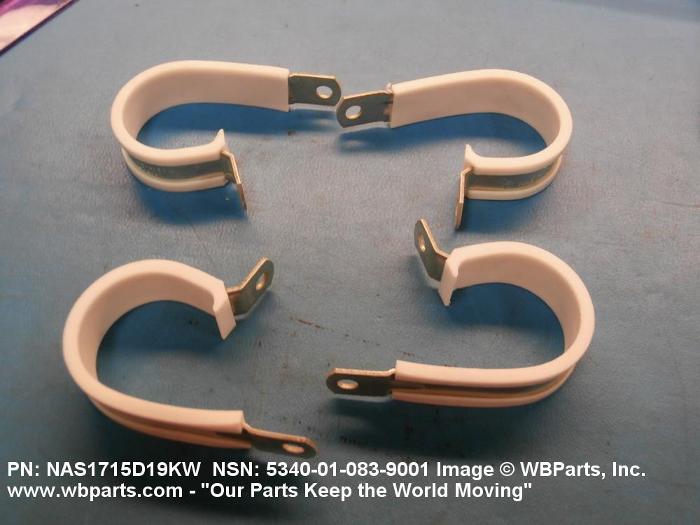

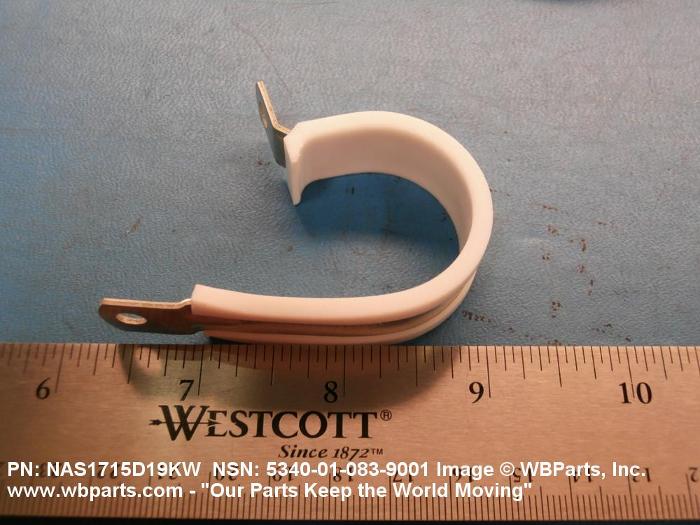

Drawings & Photos | NSN 5340-01-083-9001
Demand History | NSN 5340-01-083-9001
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1715D19KW | 2013-03-66 | 4 | United Kingdom |
| NAS1715D19KW | 2013-03-65 | 25 | United Kingdom |
Cross Reference | NSN 5340-01-083-9001
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1715D19KW | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-083-9001
Technical Data | NSN 5340-01-083-9001
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BAND PLASTIC POLYTETRAFLUOROETHYLENE CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.051 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.084 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.303 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 1.188 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.204 INCHES NOMINAL |
| CUSHIONING ENVIRONMENTAL PROTECTION | HEAT |
| SPECIAL FEATURES | WEDGE INCLUDED ON CLAMP |
| SPECIFICATION/STANDARD DATA | 80205-NAS1715 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5340-01-083-9001
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
