Product Details | BOW HANDLE
5340-01-099-0084 An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR.
Part Alternates: C10338, C1033-8, ES48608, ES-4860-8, OBA24, OBA-24, 0BA16, 0BA-16, 10967A10322, 10967-A-1032-2, 5340-01-099-0084, 01-099-0084, 5340010990084, 010990084
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 1980 | 01-099-0084 | 20350 ( HANDLE, BOW ) |

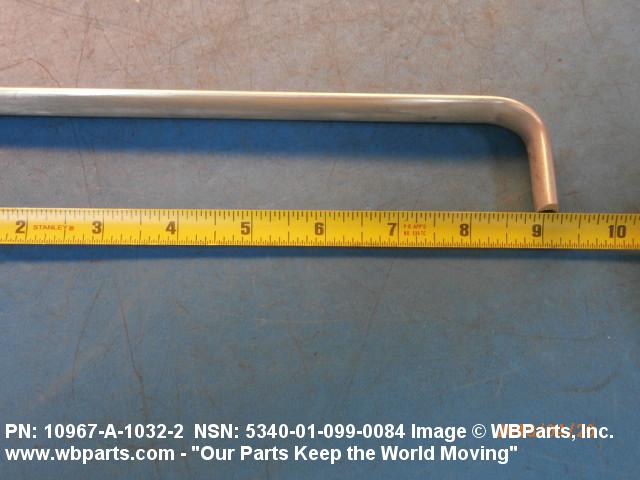

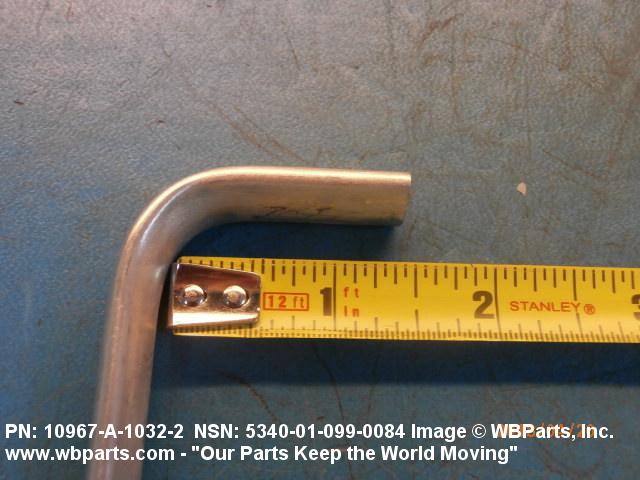

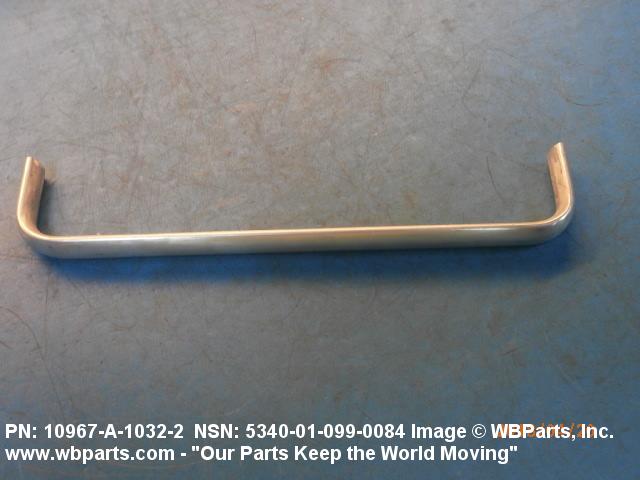

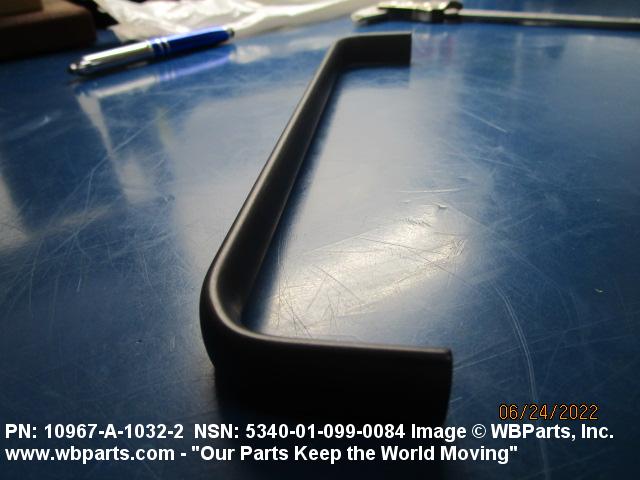

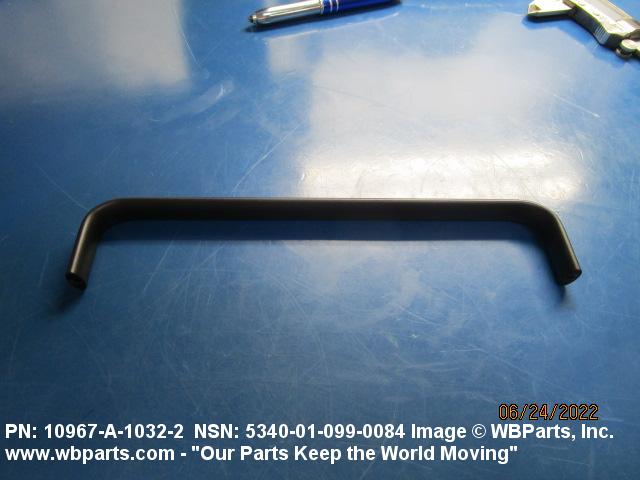

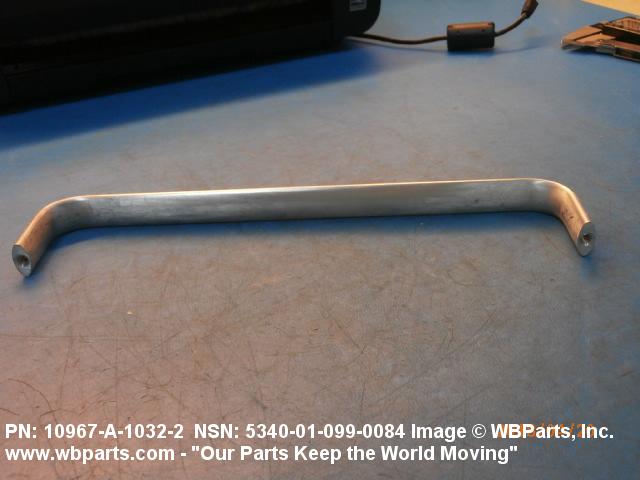

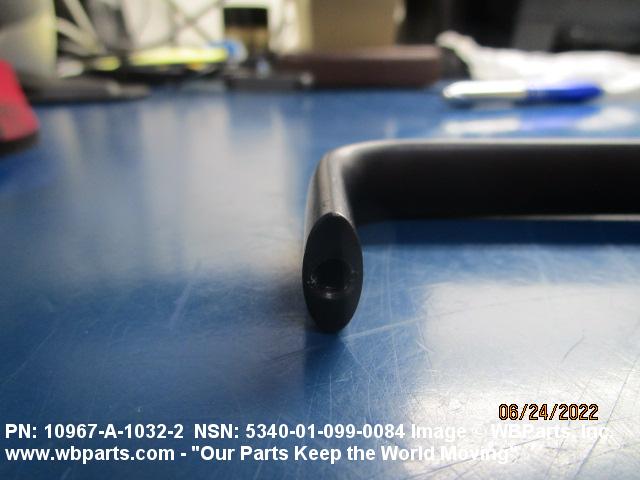

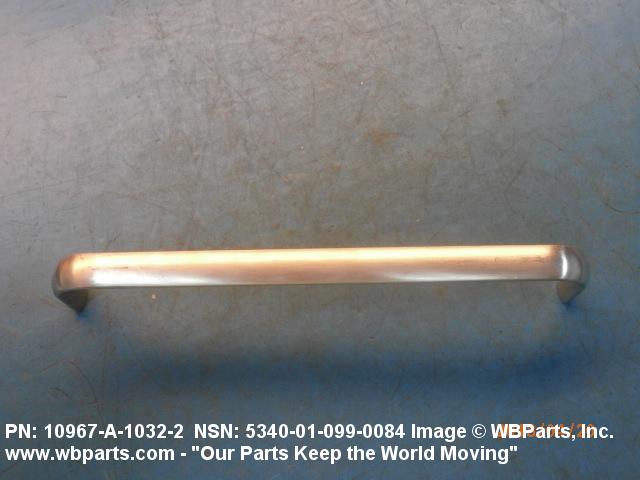

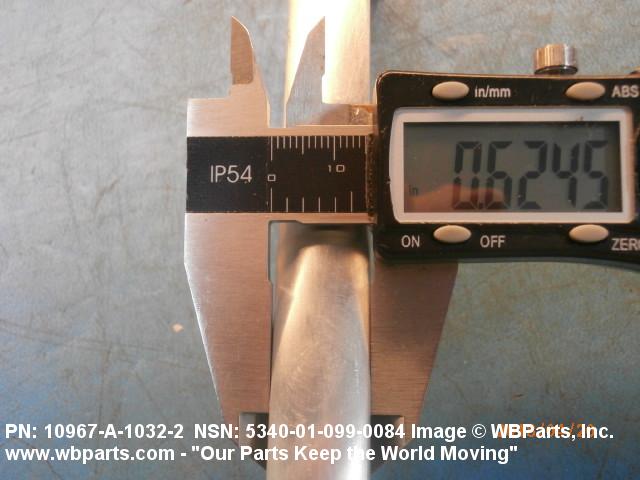

Drawings & Photos | NSN 5340-01-099-0084
Demand History | NSN 5340-01-099-0084
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10967-A-1032-2 | 2022-09-19 | 10 | DIBBS |
| 5340-01-099-0084 | 2022-08-14 | 10 | DIBBS |
| 5340-01-099-0084 | 2022-05-04 | 40 | United States |
| 10967-A-1032-2 | 2022-03-24 | 10 | DIBBS |
| 10967-A-1032-2 | 2021-09-22 | 10 | DIBBS |
| 5340-01-099-0084 | 2021-08-25 | 2 | US |
| 10967-A-1032-2 | 2021-08-23 | 10 | DIBBS |
| 10967-A-1032-2 | 2020-11-03 | 4 | DIBBS |
| 5340-01-099-0084 | 2018-04-24 | 18 | DIBBS |
| 5340-01-099-0084 | 2018-04-16 | 10 | United States |
| 5340-01-099-0084 | 2017-12-04 | 13 | DIBBS |
| 5340-01-099-0084 | 2017-11-02 | 2 | DIBBS |
| 5340-01-099-0084 | 2017-03-29 | 3 | DIBBS |
| 5340-01-099-0084 | 2017-03-01 | 3 | DIBBS |
| 5340-01-099-0084 | 2015-04-20 | 2 | DIBBS |
| 5340-01-099-0084 | 2010-07-18 | 2 | DIBBS |
| 5340-01-099-0084 | 2009-12-20 | 2 | DIBBS |
Cross Reference | NSN 5340-01-099-0084
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0BA-16 | 08730 | COOL OPTIONS INC DBA HANDLES UNLIMITED |
| 10967-A-1032-2 | 06540 | NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV |
| 10967-A-1032-2 | 1YGB8 | CAREY MANUFACTURING COMPANY, INC. DBA AMATOM ELECTRONIC HARDWARE |
| C1033-8 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| ES-4860-8 | 71279 | INTERCONNECTION PRODUCTS INC |
| OBA-24 | 08730 | COOL OPTIONS INC DBA HANDLES UNLIMITED |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-01-099-0084
Related Products | NSN 5340-01-099-0084
5340-01-099-0085, 5340-01-099-0095, 5340-01-099-0103, 5340-01-099-0104, 5340-01-099-0105
Technical Data | NSN 5340-01-099-0084
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8,T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLOR | BLACK HANDLE |

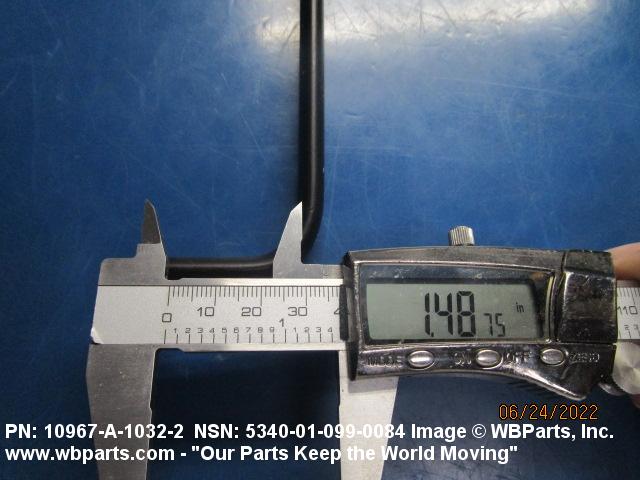

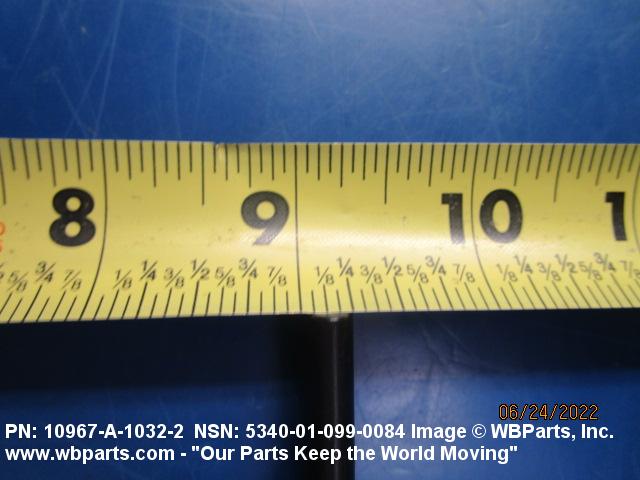

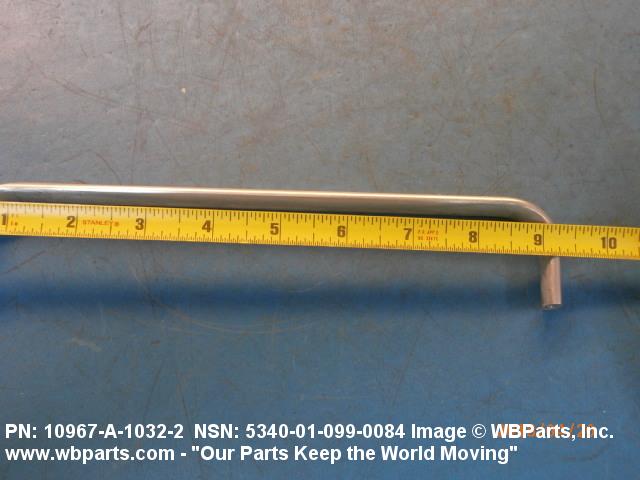

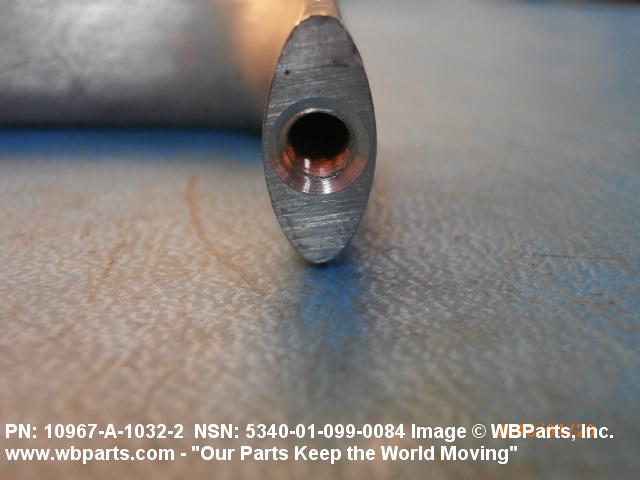

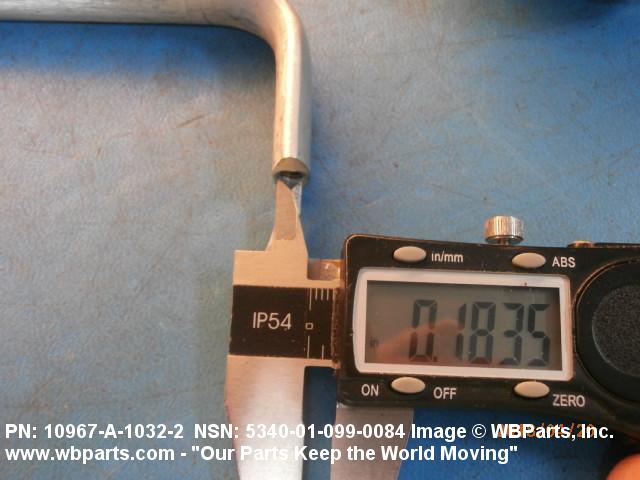

| OVERALL LENGTH | 9.270 INCHES MINIMUM AND 9.290 INCHES MAXIMUM |
| HANDLE CLEARANCE | 1.460 INCHES MINIMUM AND 1.480 INCHES MAXIMUM |
| MOUNTING FACILITY QUANTITY | 2 |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 8.990 INCHES MINIMUM AND 9.010 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
Restrictions/Controls & Freight Information | NSN 5340-01-099-0084
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
