NSN 5340-01-102-8703 01-102-8703, 011028703
Product Details | STRAP END CLIP
5340-01-102-8703 An item designed to be attached to the end of a strap, belt, or the like, to provide a rigid end for convenient insertion into a buckle, keeper, loop and the like and/or restrict wear or unraveling of the strap end.20353400020Hardware, Commercial83150028Notions and Apparel Findings84650020Individual Equipment
Part Alternates: 5340-01-102-8703, 01-102-8703, 5340011028703, 011028703
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-102-8703 | 15258 ( CLIP, END, STRAP ) |

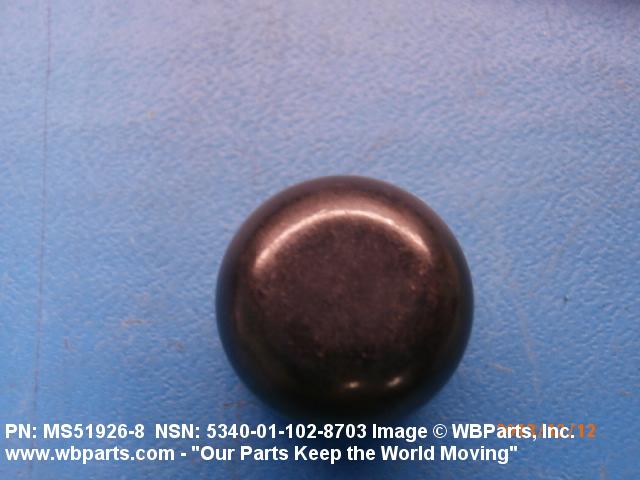

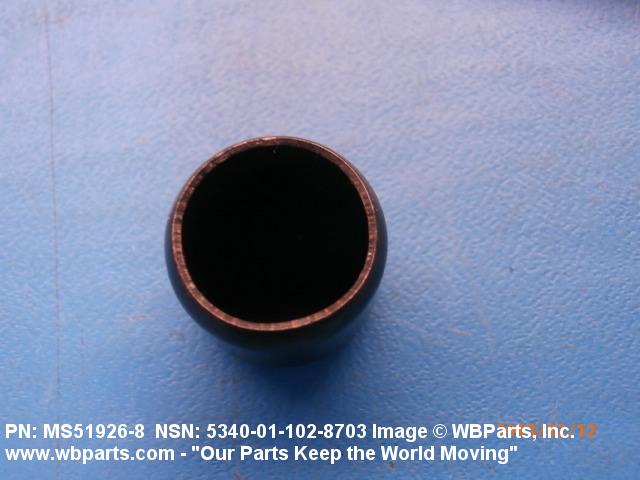

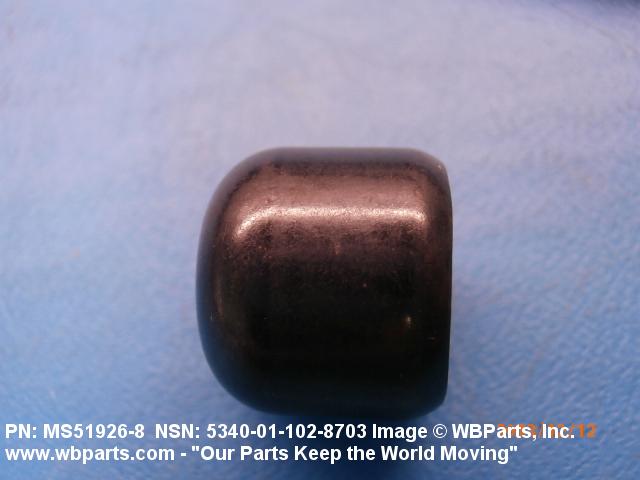

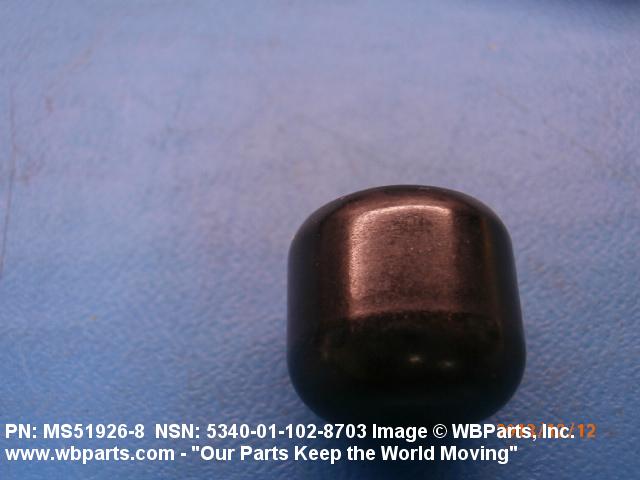

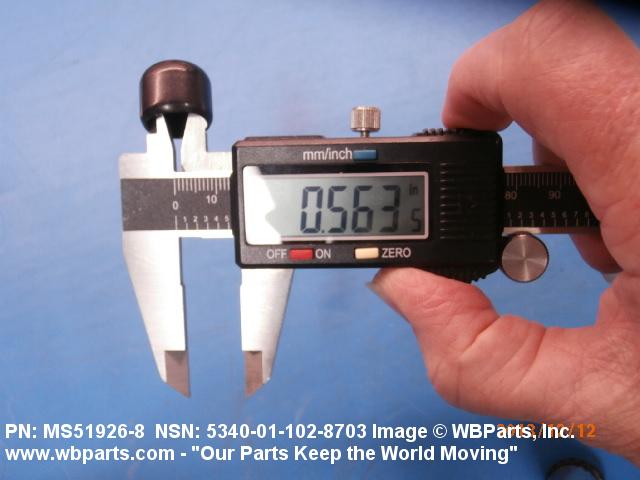

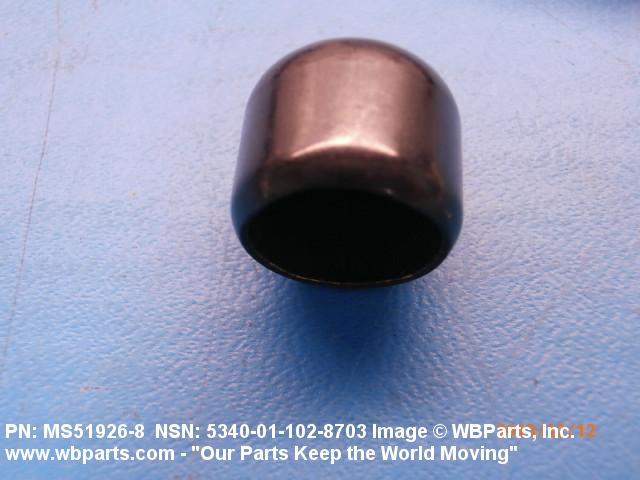

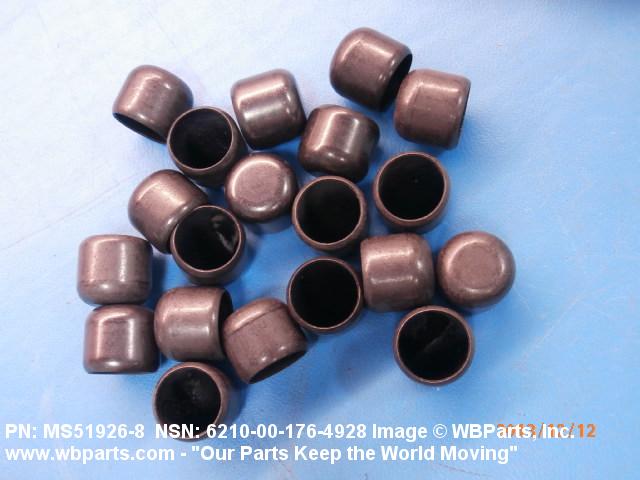

Drawings & Photos | NSN 5340-01-102-8703
Demand History | NSN 5340-01-102-8703
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-102-8703 | 2013-11-317 | 20 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-102-8703
Technical Data | NSN 5340-01-102-8703
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-698, COMP 1009 THRU 1020 |
| SURFACE TREATMENT | ZINC, QQ-Z-325, TYPE 3, CLASS 2 |
| COLOR | BLACK |
| STYLE DESIGNATOR | E3 BALL CLIP |

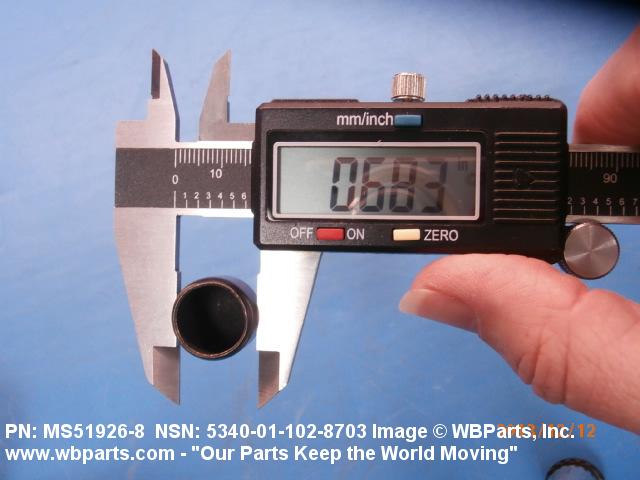

| DIAMETER | 0.680 INCHES NOMINAL |

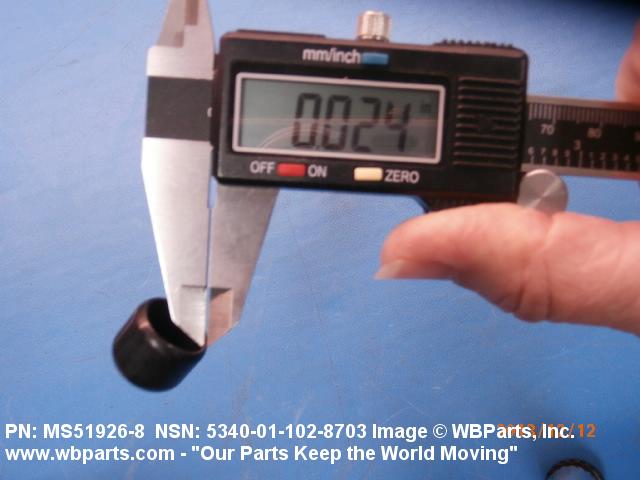

| MATERIAL THICKNESS | 0.020 INCHES MINIMUM AND 0.024 INCHES MAXIMUM |

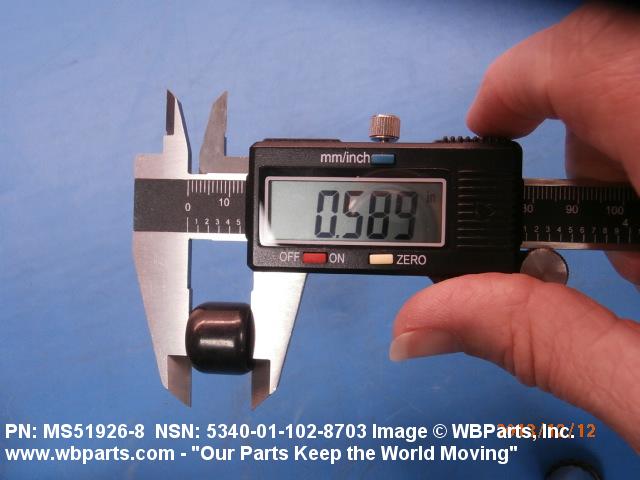

| LENGTH | 0.600 INCHES NOMINAL |
| OPENING DIAMETER | 0.562 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51926-8 |
Restrictions/Controls & Freight Information | NSN 5340-01-102-8703
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
