Product Details | LOOP CLAMP
5340-01-109-7198 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: TA13300001, 80A5007A0000, 5340-01-109-7198, 01-109-7198, 5340011097198, 011097198
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAR 1981 | 01-109-7198 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-01-109-7198
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-01-109-7198
Related Products | NSN 5340-01-109-7198
5340-01-109-7336, 5340-01-109-7553, 5340-01-109-7884, 5340-01-109-7885, 5340-01-109-7887
Technical Data | NSN 5340-01-109-7198
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 BAND RUBBER CHLOROPRENE CLASS CR CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6721 MIL SPEC SINGLE MATERIAL RESPONSE BAND AMS 3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION |
| SURFACE TREATMENT | PAINT BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-E-52798 MIL SPEC SINGLE TREATMENT RESPONSE BAND |

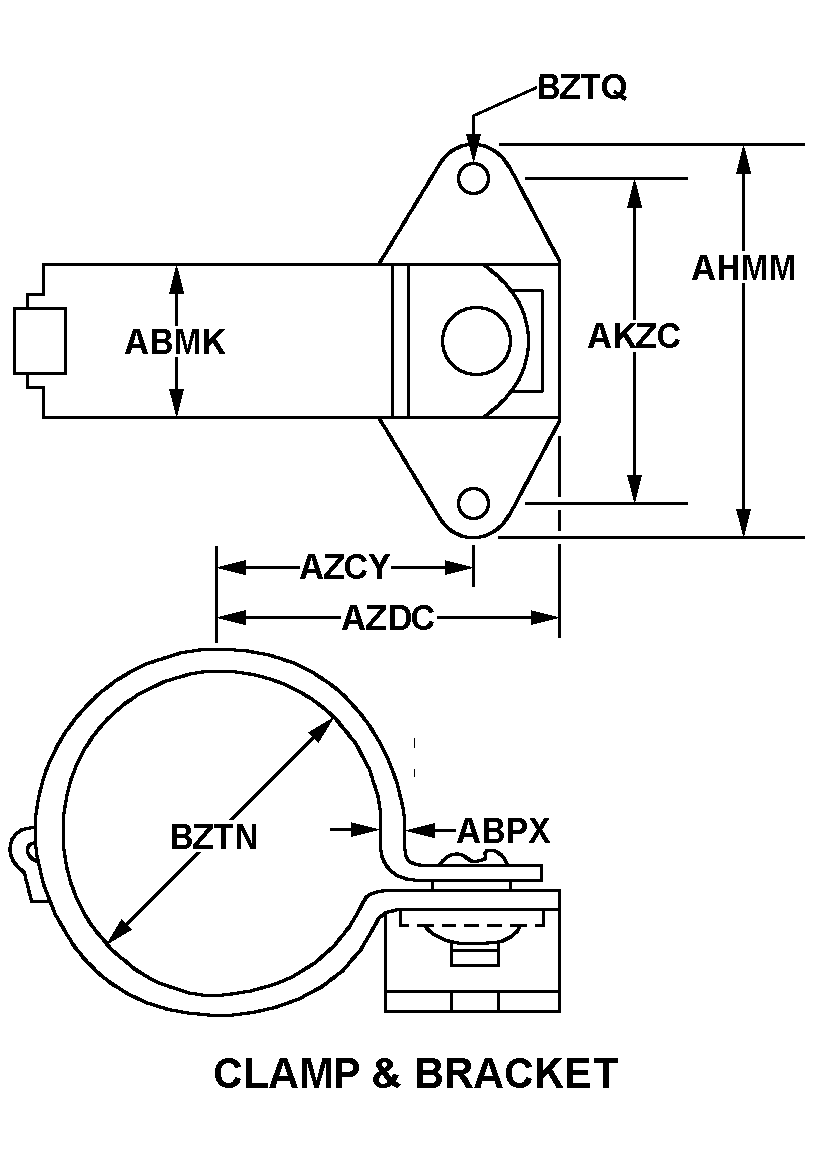

| STYLE DESIGNATOR | A62 CLAMP AND BRACKET |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.500 INCHES NOMINAL |
| LUG WIDTH | ANY ACCEPTABLE |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 1.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.858 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 2.264 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 2.440 INCHES NOMINAL |
| LUG HOLE DIAMETER | 0.218 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.218 INCHES NOMINAL |
| SPECIAL FEATURES | BLACK CUSHION |
| MANUFACTURERS CODE | 01365 |
| MFR SOURCE CONTROLLING REFERENCE | 80A5007A0000 |
