NSN 5340-01-124-3836 D5452996, D5-45-2996, 01-124-3836
Product Details | ACCESS COVER
5340-01-124-3836 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: D5452996, D5-45-2996, 5340-01-124-3836, 01-124-3836, 5340011243836, 011243836
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1982 | 01-124-3836 | 29785 ( COVER, ACCESS ) |

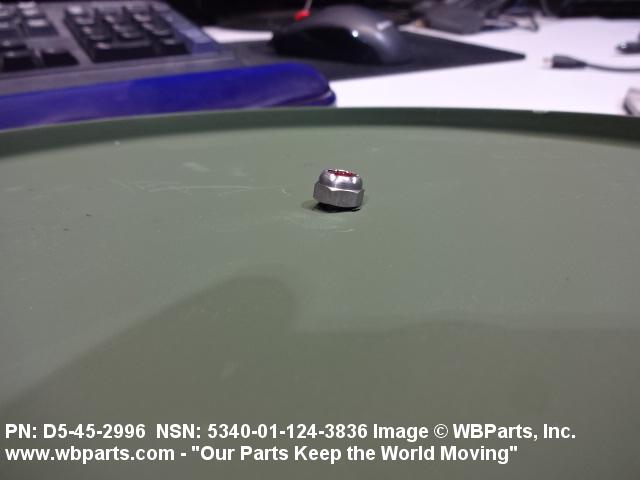

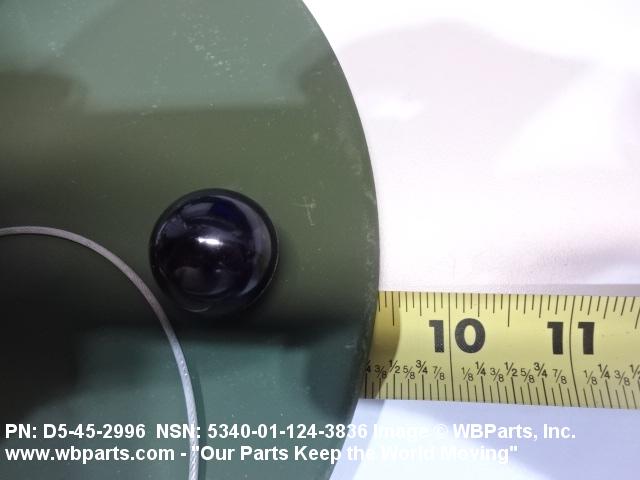

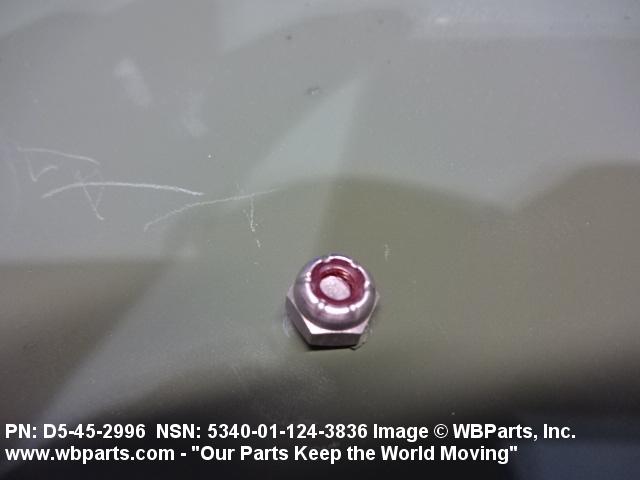

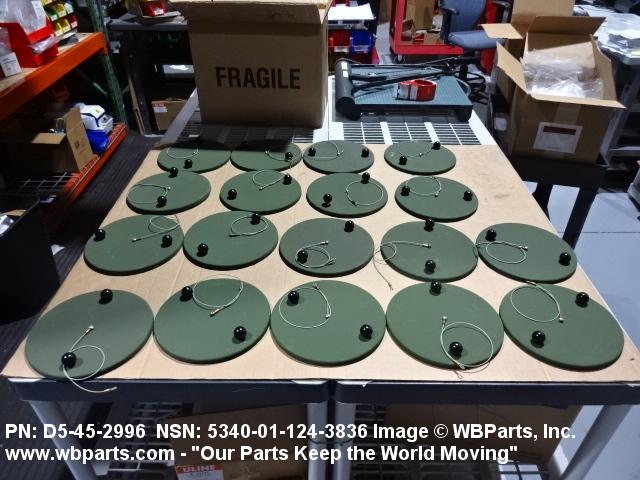

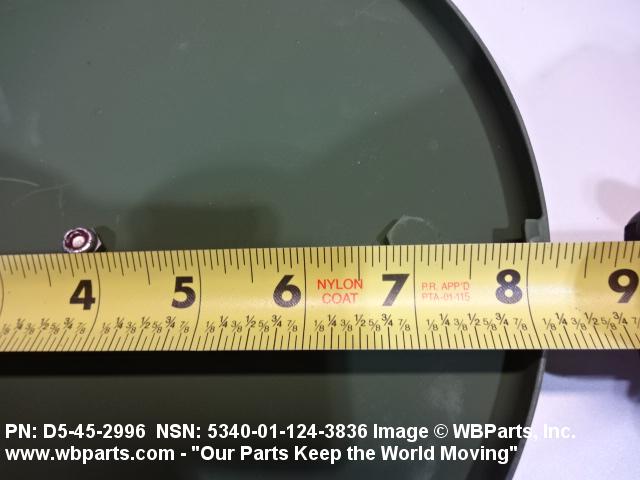

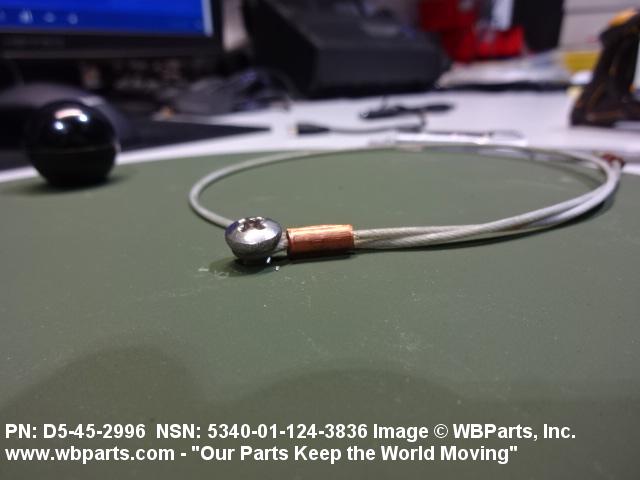

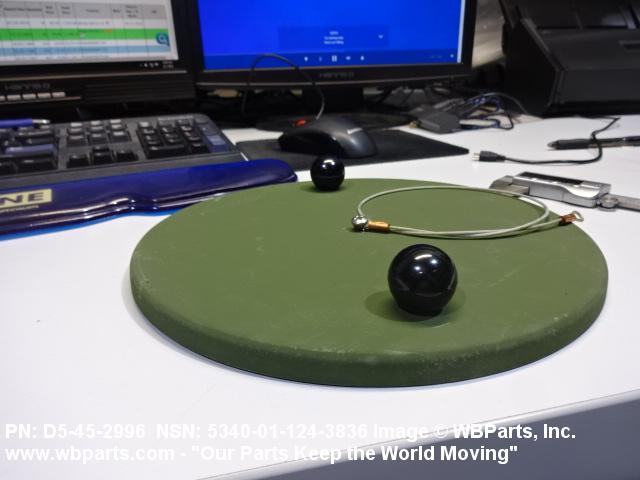

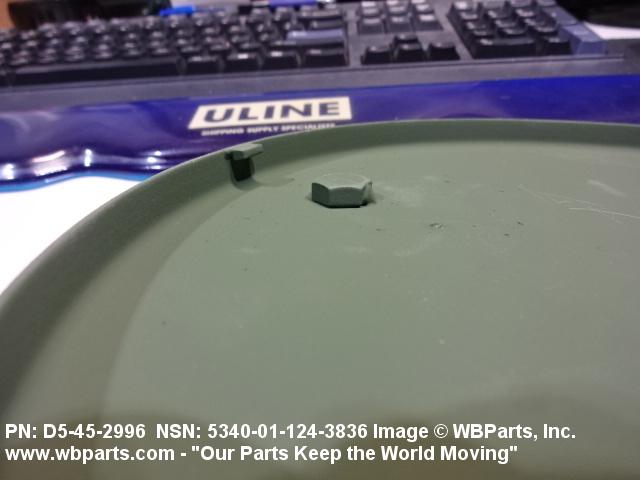

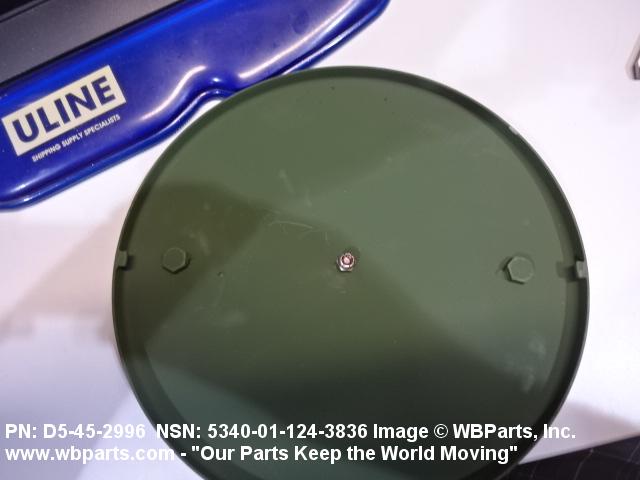

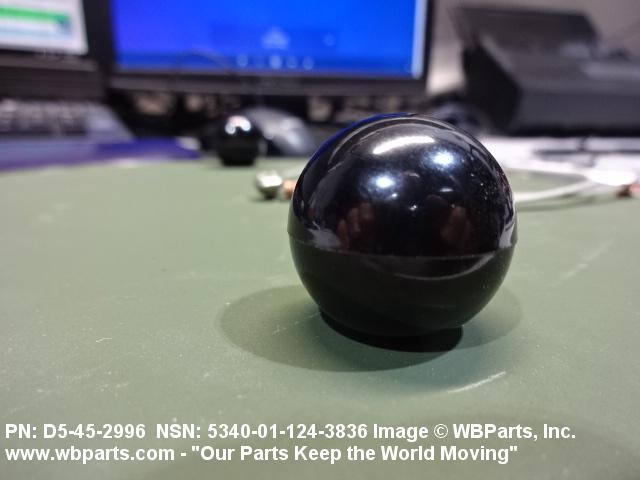

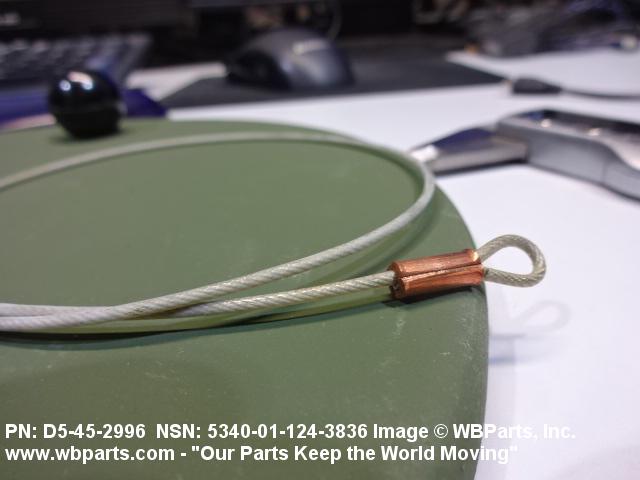

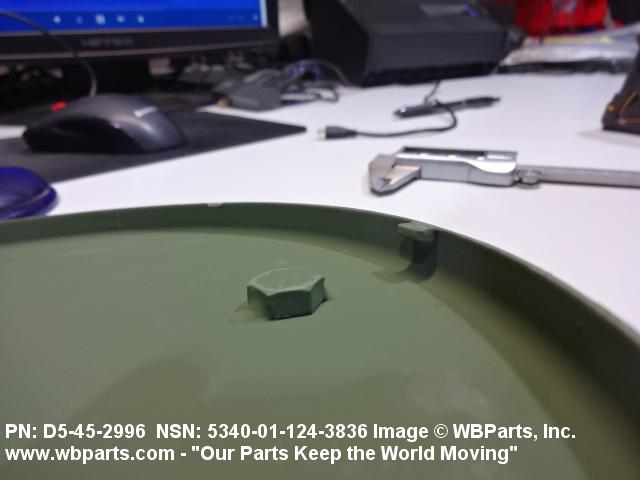

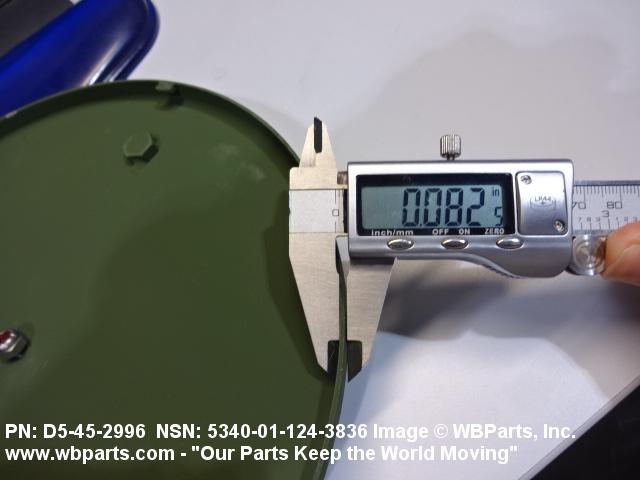

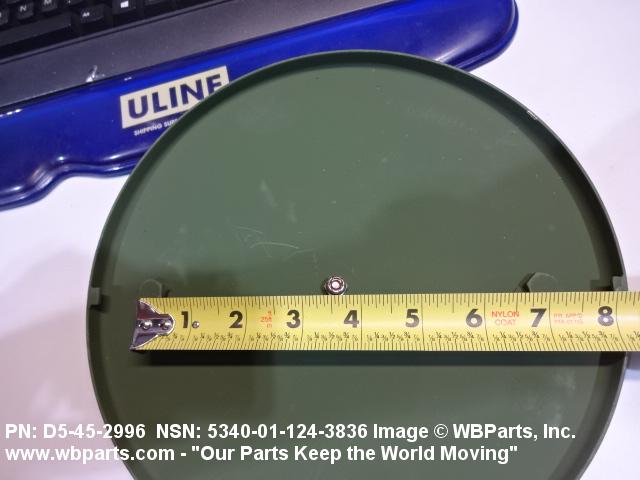

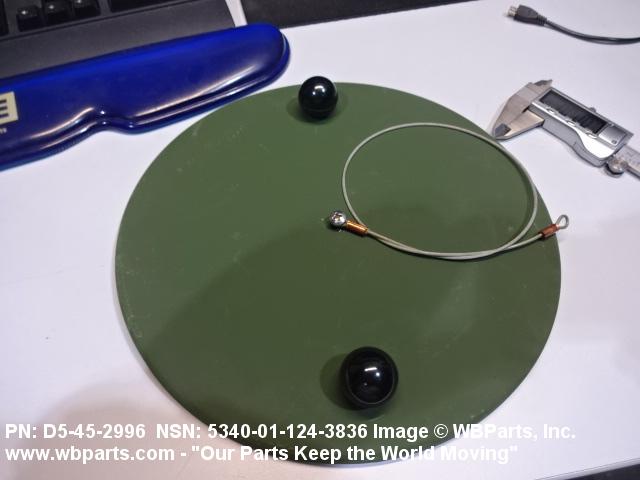

Drawings & Photos | NSN 5340-01-124-3836
Demand History | NSN 5340-01-124-3836
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-124-3836 | 2025-06-161 | 24 | DIBBS |
| 5340-01-124-3836 | 2025-05-140 | 26 | DIBBS |
| 5340-01-124-3836 | 2023-04-95 | 27 | DIBBS |
| 5340-01-124-3836 | 2022-11-324 | 32 | DIBBS |
| 5340-01-124-3836 | 2022-03-79 | 32 | DIBBS |
| 5340-01-124-3836 | 2021-10-286 | 23 | DIBBS |
| 5340-01-124-3836 | 2021-06-172 | 5 | DIBBS |
| 5340-01-124-3836 | 2021-04-115 | 3 | DIBBS |
| 5340-01-124-3836 | 2020-06-155 | 11 | DIBBS |
| 5340-01-124-3836 | 2020-02-57 | 10 | DIBBS |
| 5340-01-124-3836 | 2019-04-92 | 10 | DIBBS |
| 5340-01-124-3836 | 2018-12-364 | 29 | DIBBS |
| 5340-01-124-3836 | 2018-09-263 | 29 | DIBBS |
| 5340-01-124-3836 | 2018-07-205 | 18 | United States |
| 5340-01-124-3836 | 2018-06-164 | 20 | DIBBS |
| 5340-01-124-3836 | 2018-03-87 | 10 | DIBBS |
| 5340-01-124-3836 | 2018-03-64 | 1 | DIBBS |
| 5340-01-124-3836 | 2018-02-52 | 1 | DIBBS |
| 5340-01-124-3836 | 2018-02-36 | 3 | DIBBS |
| 5340-01-124-3836 | 2018-02-36 | 5 | DIBBS |
Cross Reference | NSN 5340-01-124-3836
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D5-45-2996 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-124-3836
Related Products | NSN 5340-01-124-3836
Technical Data | NSN 5340-01-124-3836
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 79 ROUND, MULTI HOLES |
| OUTSIDE DIAMETER | 9.310 INCHES NOMINAL |
| BOLT HOLE CENTERLINE TO NEAREST EDGE DISTANCE | 1.155 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS | 7.000 INCHES NOMINAL |
| HOLE QUANTITY ALONG LENGTH | 2 |
| CROSS-SECTIONAL SHAPE STYLE | 20 CIRCULAR RECESS |
| INSIDE DIAMETER | 9.310 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0598 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM |
| FIRST RECESS INSIDE HEIGHT | 0.380 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.130 INCHES NOMINAL |
| BODY THICKNESS | 0.0598 INCHES MINIMUM AND 0.1250 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING |
| SECURING DEVICE TYPE | SPECIAL |
| SPECIAL FEATURES | ADDITIONAL CENTER HOLE 0.218 IN.DIA |
| END ITEM IDENTIFICATION | DECONTAMINATING EQUIPMENT |
| MANUFACTURERS CODE | 81361 |
| DESIGN CONTROL REFERENCE | D5-45-2996 |
Restrictions/Controls & Freight Information | NSN 5340-01-124-3836
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-124-3836
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | Z | Other Munitions/CBR Categories |
| Weapons Systems/End Item or Homogeneous Group | ZB | Decontaminating Equipment |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | O | If condemned or economically unserviceable, dispose at organizational level. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
